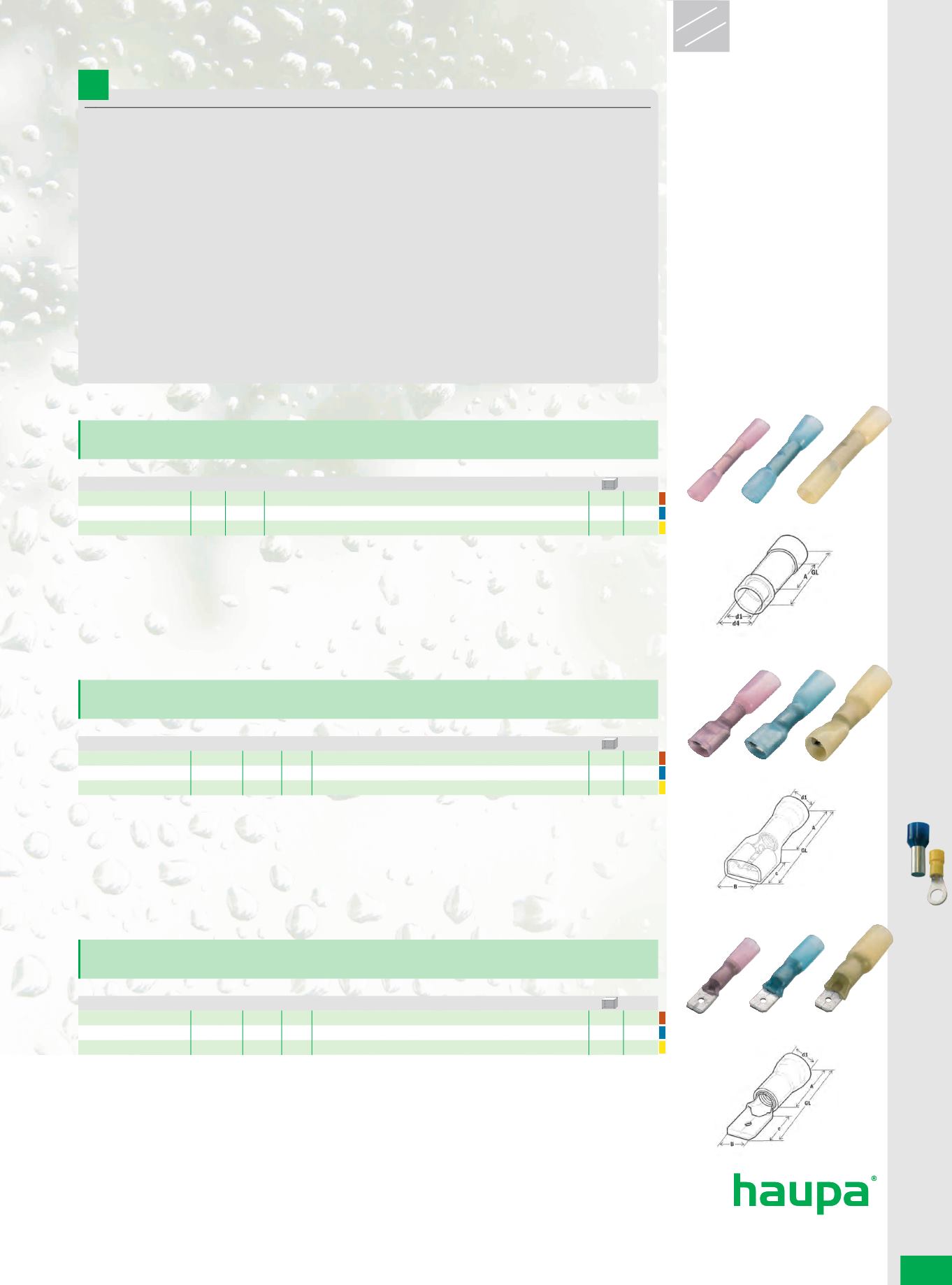

125
RoHS
Germany:
HAUPA
, Koenigstr. 165-169, 42853 Remscheid, Phone: +49 (0)2191 8418-0, Fax: +49 (0)2191 8418-840,
...convincing solutions
RoHS
Butt connectors
•
Copper, tin-plated
•
Insulating cover: Polyolefin with inside adhesive
•
RoHS conform
Art. no.
kg/100
PU
363500
0,120 500 100
CSS
A TL
0,5 - 1,0
14 36
363502
0,132 500 100
1,5 - 2,5
15 36
363504
0,300 500 100
4,0 - 6,0
15 41
Socket sleeves (female)
•
Brass, tin-plated
•
Insulating cover: Polyolefin with inside adhesive
•
RoHS conform
Art. no.
kg/100
PU
363510
0,129 500 100
CSS
plug
TL B
0,5 - 1,0
6,3x0,8 30,0 6,6
363512
0,138 500 100
1,5 - 2,5
6,3x0,8 30,0 6,6
363514
0,200 500 100
4,0 - 6,0
6,3x0,8 30,0 6,6
Flat terminals
•
Brass, tin-plated
•
Insulating cover: Polyolefin with inside adhesive
•
RoHS conform
Art. no.
kg/100
PU
363520
0,092 500 100
CSS
plug
TL B
0,5 - 1,0
6,3x0,8 30,0 6,6
363522
0,106 500 100
1,5 - 2,5
6,3x0,8 30,0 6,6
363524
0,159 500 100
4,0 - 6,0
6,3x0,8 30,0 6,6
-
INFO
Shrinkable connectors
These shrinkable connectors are an insulated connecting element for the production of cable connections and circuit
points. Their outstanding properties are based on the use of a Polyolefi n shrinkable tube, which is coated with a
special adhesive on the inside, which protects the metal crimp connections from environmental infl uences. These
connectors or terminal clamps are used wherever a reliable connection is needed under severe environmental
conditions.
The shrinkable connectors of the HAUPA-SHRINK series combine crimp technology with the completely waterproof
shrink technology in one part: crimp first –
then shrink and make waterproof!
USE:
To create simple, durable and weatherproof electrical connections. Particularly suitable well as in the motor
vehicle, agricultural machinery and commercial vehicle sector.
SPECIAL FEATURE:
The fusible inside adhesive cover provides excellent durability and is safer than traditional
connectors.
SUITABLE FOR MAKING WATERPROOF CONNECTIONS:
• Shrink ratio 3:1 • Shrink temperature: >+125°C
• Temperature resistance: -55°C to + 125°C • Insulating sleeve: Polyolefi n with inside adhesive
• Non-halogen • RoHS conform • No additional insulating and sealing required • Waterproof splice connection
• Space-saving and compact • Extremely high strain relief • Easy installation • Full visual testing possible
INSTRUCTIONS:
The connector is crimped and then shrunk using a hot air blower (with deflector page 174).
The connection Check whether the fusible inside adhesive comes out on the sides to ensure optimal tightness.
