Cable ties

material: nylon, colour transparent, quick and simple to fix by hand or with tensioning tools, extremely resistant to sea water, oil, grease, etc., manufactured in accordance with UL and MIL specification requirements, - 40° C bis 85° C

Info Product group

Art.No.	EAN	Length belt/tape/tie	Band width	Max. bundle diameter	Min. holding force	Colour	Material	Operating temperature	Mounting temperature	Material quality	PU
262500/1	4011923557119	75 mm	2.4 mm	15 mm	8 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262500	4011923098568	96 mm	2.5 mm	23 mm	8 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262502	4011923098582	100 mm	2.5 mm	25 mm	8 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262504	4011923098605	142 mm	2.5 mm	35 mm	8 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262506	4011923098629	203 mm	2.5 mm	55 mm	8 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262508	4011923098643	142 mm	3.2 mm	35 mm	18 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262509/1	4011923557126	203 mm	3.6 mm	53 mm	18 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262510/1	4011923557133	250 mm	3.6 mm	68 mm	18 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262510	4011923098667	292 mm	3.6 mm	85 mm	18 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262512/1	4011923557140	120 mm	4.8 mm	27 mm	216 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262515	4011923557157	157 mm	4.8 mm	40 mm	216 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262512	4011923098681	188 mm	4.8 mm	54 mm	216 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262516	4011923098711	199 mm	4.8 mm	54 mm	216 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262518	4011923098735	250 mm	4.8 mm	68 mm	216 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262520	4011923098742	302 mm	4.8 mm	84 mm	216 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262522	4011923098759	371 mm	4.8 mm	106 mm	216 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262523	4011923557164	430 mm	4.8 mm	125 mm	216 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262528	4011923098773	200 mm	7.6 mm	54 mm	55 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262530	4011923098780	290 mm	7.6 mm	82 mm	530 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262532	4011923098797	370 mm	7.6 mm	106 mm	530 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262536	4011923098810	425 mm	8.8 mm	115 mm	80 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	50
262537	4011923557171	523 mm	8.8 mm	150 mm	80 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	50
262538	4011923098827	610 mm	8.8 mm	180 mm	80 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	50
262535	4011923557188	774 mm	8.8 mm	220 mm	80 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	50
262540	4011923098834	800 mm	8.8 mm	235 mm	80 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	20
262542	4011923098841	920 mm	8.8 mm	278 mm	80 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	50
262543	4011923557195	1219 mm	9 mm	374 mm	80 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	25
262545	4011923557201	246 mm	12.4 mm	64 mm	114 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	50
262546	4011923098865	550 mm	12.7 mm	166 mm	114 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	50
262547	4011923557218	1030 mm	12.7 mm	312 mm	114 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100

Cable ties

material: nylon - colour black, all other data and properties like No. 262500 - 46, weather- and UV-resistant

Info Product group

Art.No.	EAN	Length belt/tape/tie	Band width	Max. bundle diameter	Min. holding force	Colour	Material	Operating temperature	Mounting temperature	Material quality	PU
262600/1	4011923557225	75 mm	2.4 mm	15 mm	8 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262600	4011923099077	96 mm	2.5 mm	23 mm	8 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262602	4011923099091	100 mm	2.5 mm	25 mm	80 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262604	4011923099107	142 mm	2.5 mm	35 mm	80 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262606	4011923099114	203 mm	2.5 mm	55 mm	8 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262608	4011923099121	142 mm	3.2 mm	35 mm	18 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262609/1	4011923557010	203 mm	3.6 mm	53 mm	18 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262610/1	4011923557027	250 mm	3.6 mm	68 mm	18 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262610	4011923099145	292 mm	3.6 mm	85 mm	18 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262616	4011923099176	203 mm	4.6 mm	52 mm	22 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262612/1	4011923557034	120 mm	4.8 mm	27 mm	22 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262615	4011923557041	157 mm	4.8 mm	40 mm	22 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262618	4011923099190	250 mm	4.8 mm	68 mm	216 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262620	4011923099206	302 mm	4.8 mm	84 mm	216 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262622	4011923099213	371 mm	4.8 mm	106 mm	216 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262623	4011923557058	430 mm	4.8 mm	125 mm	22 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262628	4011923099244	200 mm	7.6 mm	54 mm	55 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262630	4011923099251	290 mm	7.6 mm	82 mm	530 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262632	4011923099268	370 mm	7.6 mm	106 mm	530 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262636	4011923099282	425 mm	8.8 mm	115 mm	80 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	50
262637	4011923557065	523 mm	8.8 mm	150 mm	80 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	50
262638	4011923099299	610 mm	8.8 mm	180 mm	80 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	50
262635	4011923557072	774 mm	8.8 mm	220 mm	80 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	50
262640	4011923099305	800 mm	8.8 mm	235 mm	80 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide/polyethylene PA/PE	20
262642	4011923099312	920 mm	8.8 mm	278 mm	80 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	50
262643	4011923557089	1219 mm	8.8 mm	374 mm	80 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	25
262645	4011923557096	246 mm	12.4 mm	64 mm	114 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	50
262646	4011923099336	550 mm	12.7 mm	166 mm	114 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	50
262647	4011923557102	1030 mm	12.7 mm	312 mm	114 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	20

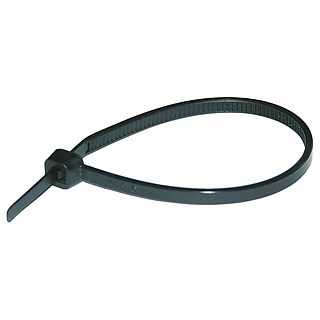

Cable ties “UVplus”

Long-term weather resistant, for industrial uses, black, UV resistant, material - polyamide, 7 year guarantee

Info Product group

Art.No.	EAN	Length belt/tape/tie	Band width	Max. bundle diameter	Min. holding force	Colour	Material	Operating temperature	Material quality	PU
262950	4011923547691	100 mm	2.5 mm	25 mm	8 N	Black	Plastic	-40 - +90 °C	Polyamide PA	100
262952	4011923547707	202 mm	2.5 mm	50 mm	8 N	Black	Plastic	-40 - +90 °C	Polyamide PA	100
262954	4011923547714	150 mm	3.3 mm	38 mm	18 N	Black	Plastic	-40 - +90 °C	Polyamide PA	100
262956	4011923547721	201 mm	3.6 mm	57 mm	18 N	Black	Plastic	-40 - +90 °C	Polyamide PA	100
262958	4011923547738	290 mm	3.6 mm	82 mm	18 N	Black	Plastic	-40 - +90 °C	Polyamide PA	100
262960	4011923547745	199 mm	4.8 mm	56 mm	22 N	Black	Plastic	-40 - +90 °C	Polyamide PA	100
262962	4011923547752	250 mm	4.8 mm	72 mm	22 N	Black	Plastic	-40 - +90 °C	Polyamide PA	100
262964	4011923547769	290 mm	4.8 mm	83 mm	22 N	Black	Plastic	-40 - +90 °C	Polyamide PA	100
262966	4011923547776	371 mm	4.8 mm	106 mm	22 N	Black	Plastic	-40 - +90 °C	Polyamide PA	100
262968	4011923547783	290 mm	7.6 mm	82 mm	54 N	Black	Plastic	-40 - +90 °C	Polyamide PA	100
262970	4011923547790	370 mm	7.6 mm	108 mm	54 N	Black	Plastic	-40 - +90 °C	Polyamide PA	100
262972	4011923547806	542 mm	7.6 mm	162 mm	54 N	Black	Plastic	-40 - +90 °C	Polyamide PA	100
262974	4011923547813	523 mm	8.8 mm	156 mm	79 N	Black	Plastic	-40 - +90 °C	Polyamide PA	50
262976	4011923547820	709 mm	8.8 mm	213 mm	79 N	Black	Plastic	-40 - +90 °C	Polyamide PA	50
262978	4011923547837	774 mm	8.8 mm	233 mm	79 N	Black	Plastic	-40 - +90 °C	Polyamide PA	50
262980	4011923547844	920 mm	8.8 mm	279 mm	79 N	Black	Plastic	-40 - +90 °C	Polyamide PA	50

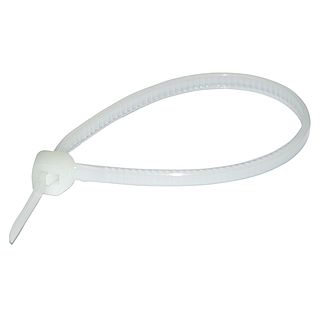

Cable ties

material: nylon - colour transparent, all other data and properties like No. 262500 - 46, big packing unit 1000 pcs.

Info Product group

Art.No.	EAN	Length belt/tape/tie	Band width	Max. bundle diameter	Min. holding force	Colour	Material	Operating temperature	Mounting temperature	Material quality
262501	4011923098575	96 mm	2.5 mm	23 mm	8 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA
262503	4011923098599	100 mm	2.5 mm	25 mm	8 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA
262505	4011923098612	142 mm	2.5 mm	35 mm	8 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA
262507	4011923098636	203 mm	2.5 mm	55 mm	8 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA
262509	4011923098650	142 mm	3.2 mm	35 mm	18 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA
262511	4011923098674	290 mm	3.6 mm	82 mm	18 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA
262513	4011923098698	188 mm	4.8 mm	54 mm	216 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA
262517	4011923098728	199 mm	4.8 mm	54 mm	216 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA

Heat-resistant cable ties

Material nylon 6/6, colour light green, UL94V-2, for high temperature applications between -40°C and +105°C

Info Product group

Art.No.	EAN	Length belt/tape/tie	Band width	Max. bundle diameter	Min. holding force	Material	Operating temperature	PU
263000	4011923608934	100 mm	2.5 mm	21 mm	80 N	Plastic	-40 - 105 °C	100
263004	4011923608958	200 mm	2.5 mm	55 mm	80 N	Plastic	-40 - 105 °C	100
263006	4011923608972	120 mm	3.6 mm	37 mm	180 N	Plastic	-40 - 105 °C	100
263008	4011923608996	160 mm	4.6 mm	40 mm	220 N	Plastic	-40 - 105 °C	100
263010	4011923609016	199 mm	4.6 mm	54 mm	220 N	Plastic	-40 - 105 °C	100
263012	4011923609030	371 mm	4.6 mm	106 mm	220 N	Plastic	-40 - 105 °C	100

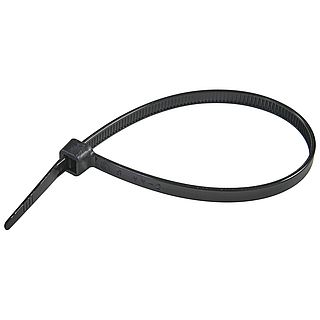

“UV” heat-resistant cable ties, black

Material nylon 6/6, colour black, UL94V-2, for high temperature applications between -40°C and +145°C, UV-stabilized

Info Product group

Art.No.	EAN	Length belt/tape/tie	Band width	Max. bundle diameter	Min. holding force	Material	Operating temperature	PU
263020	4011923609054	100 mm	2.5 mm	21 mm	80 N	Plastic	-40 - 145 °C	100
263022	4011923609078	160 mm	2.5 mm	21 mm	80 N	Plastic	-40 - 145 °C	100
263024	4011923609092	200 mm	2.5 mm	21 mm	80 N	Plastic	-40 - 145 °C	100
263026	4011923609115	199 mm	4.6 mm	54 mm	220 N	Plastic	-40 - 145 °C	100
263028	4011923609139	302 mm	4.6 mm	84 mm	220 N	Plastic	-40 - 145 °C	100
263030	4011923609153	370 mm	7.6 mm	106 mm	540 N	Plastic	-40 - 145 °C	100

HUPimpact cable ties

Material shock-resistant nylon 6/6, colour black, UL 94HB, for use in temperatures between -40°C and +80°C, extremely high flexibility in cold environments

Info Product group

Art.No.	EAN	Length belt/tape/tie	Band width	Max. bundle diameter	Min. holding force	Material	Operating temperature	PU
263100	4011923609276	199 mm	4.6 mm	54 mm	220 N	Plastic	-40 - 80 °C	100
263102	4011923609290	288 mm	4.6 mm	81 mm	220 N	Plastic	-40 - 80 °C	100
263104	4011923609313	302 mm	4.6 mm	84 mm	220 N	Plastic	-40 - 80 °C	100
263106	4011923609337	371 mm	4.6 mm	106 mm	220 N	Plastic	-40 - 80 °C	100
263108	4011923609351	290 mm	7.5 mm	82 mm	540 N	Plastic	-40 - 80 °C	100
263110	4011923609375	370 mm	7.5 mm	106 mm	540 N	Plastic	-40 - 80 °C	100
263112	4011923609399	774 mm	8.7 mm	220 mm	790 N	Plastic	-40 - 80 °C	100

Releasable cable ties for frequent opening and closing

for temporary wiring and sub-assembly, material: polyamide 6,6 - colour black, operation temperature: -40° to +85° C

Info Product group

Art.No.	EAN	Length belt/tape/tie	Band width	Max. bundle diameter	Min. holding force	Colour	Material	Operating temperature	Mounting temperature	Material quality	PU
262140	4011923098407	150 mm	7.6 mm	35 mm	22 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262142	4011923098414	200 mm	7.6 mm	50 mm	22 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262144	4011923098421	300 mm	7.6 mm	80 mm	22 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100

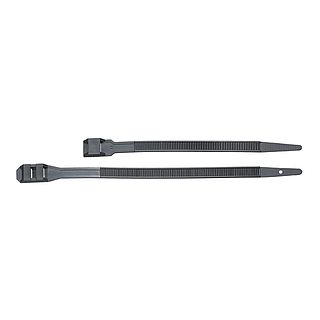

Double-locking-cable ties

material: nylon - colour black, (262710 Nylon 12).
Benefits:
• Flat head geometry
• Exterior
• Smooth side is up against the insulation - no dents or damages
• Wide contact surface protects the cable loom from damages

Application:
• Bundling of tubes in narrow shafts
• Cable bundling in hollow wall spaces
• Pull-out forces are well distributed thanks to the extra-wide tie

Info Product group

Art.No.	EAN	Length belt/tape/tie	Band width	Max. bundle diameter	Min. holding force	Colour	Material	Operating temperature	Mounting temperature	Material quality	PU
262700	4011923145408	180 mm	9 mm	45 mm	55 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262702	4011923145415	300 mm	9 mm	88 mm	55 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262704	4011923145422	360 mm	9 mm	100 mm	55 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100
262710	4011923145446	300 mm	9 mm	88 mm	55 N	Black	Plastic	-40 - 85 °C	-5 - 85 °C	Polyamide PA	100

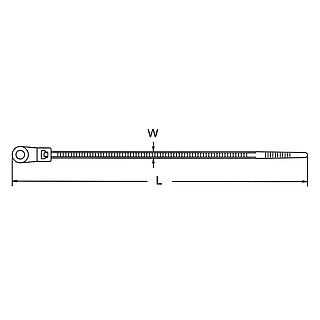

Cable ties with fixing eye

material: nylon, colour transparent, quick and simple to fix by hand or with tensioning tools, extremely resistant to sea water, oil, grease, etc., manufactured in accordance with UL and MIL specification requirements, - 40° C bis 85° C

Info Product group

Art.No.	EAN	Length belt/tape/tie	Band width	Max. bundle diameter	Min. holding force	Colour	Material	Operating temperature	Mounting temperature	Hole-Ø	Material quality	PU
262820	4011923183097	100 mm	2.5 mm	25 mm	8 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	3 mm	Polyamide PA	100
262822	4011923183103	170 mm	3.7 mm	40 mm	18 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	4.8 mm	Polyamide PA	100
262824	4011923183110	170 mm	3.7 mm	40 mm	18 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	4 mm	Polyamide PA	100
262826	4011923183127	205 mm	4.2 mm	60 mm	22 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	4.6 mm	Polyamide PA	100
262828	4011923183134	300 mm	4.8 mm	85 mm	22 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	4.8 mm	Polyamide PA	100
262830	4011923183141	300 mm	7.8 mm	80 mm	55 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	6 mm	Polyamide PA	100
262832	4011923183158	370 mm	4.8 mm	102 mm	22 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	4.9 mm	Polyamide PA	100
262834	4011923183165	398 mm	7.9 mm	122 mm	55 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	6.1 mm	Polyamide PA	100

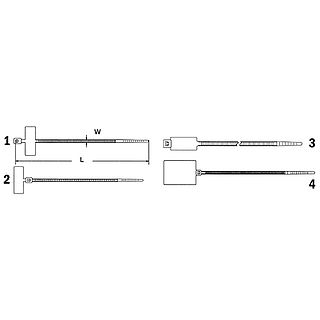

Cable ties with marking space

These cable ties are suitable for simple labelling and simultaneous bundling ofcable loops. This saves one work step. Material: nylon, colour natural, can be fastened quickly and easily using a tool or by hand. Extremely resistant to sea water, oil, fats etc, manufactured according to UL gema tested nylon.
Technical data: material polyamide 6.6 (N66), operating temperature -40 to +85 C. Group features: HF (non-halogen), RoHS-conform

Info Product group

Art.No.	EAN	Length belt/tape/tie	Band width	Max. bundle diameter	Min. holding force	Colour	Material	Operating temperature	Mounting temperature	Area	Material quality	PU
262840	4011923183172	100 mm	2.5 mm	25 mm	8 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	25 x 8	Polyamide PA	100
262842	4011923183189	130 mm	2.5 mm	25 mm	8 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	28 x 20	Polyamide PA	100
262844	4011923183196	110 mm	2.5 mm	25 mm	8 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	25 x 8	Polyamide PA	100
262846	4011923183202	200 mm	4.6 mm	50 mm	22 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	28 x 13	Polyamide PA	100
262848	4011923183219	200 mm	2.5 mm	50 mm	8 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	30 x 15	Polyamide PA	100
262850	4011923183226	270 mm	4.6 mm	75 mm	22 N	Natural colour	Plastic	-40 - 85 °C	-5 - 85 °C	28 x 13	Polyamide PA	100

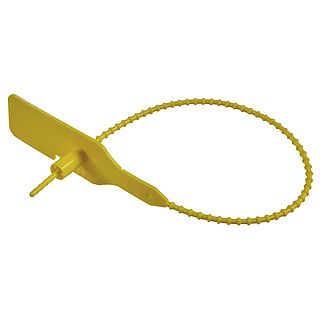

HUPsecure cable ties

Material PP, colour: yellow, can be used as a seal /connector

Info Product group

Art.No.	EAN	Length belt/tape/tie	Band width	Max. bundle diameter	Material	Material quality	PU
263200	4011923608149	245 mm	3.6 mm	43 mm	Plastic	Polypropylene	100
263204	4011923608163	295 mm	3.6 mm	60 mm	Plastic	Polypropylene	100
263208	4011923608187	397 mm	3.6 mm	92 mm	Plastic	Polypropylene	100
