Crimping head can be rotated by 360°, manual return flow after perfect pressure, mandrel shape pressing.
Extent of supply: 1 crimping tool, 1 charger, 1 battery, 1 strap, in SysCon stacking box „SysCon M“ 220372.
• Pressing force in kN: 60
• Working pressure in bar: 700
• Pressing width: thorn
• Cable lugs: standard Cu 16-300
• Connectors: standard Cu 16-120
• Pressing time, battery-operated in sec.: 6-12
• Battery charging time in min.: 30
• Battery type: Li-Ion, 18 V, 2 Ah
• Weight in kg: 2,4
• Weight of set in kg: 7,9
• With battery item no. 215523 and charger item no. 215527

Technical data and scope of delivery, see 216663-1.

With the different colours of the sensor LED, it shows whether the pressing has been completed successfully or which errors have occurred:

Light is green: Pressing completed as standard, motor stopped.
Light is orange: Battery voltage not sufficient
Light is red: Pressing interrupted before completed

The device also has 1 white LED designed to illuminate the working area.

Crimping head can be rotated by 360°, manual return after completed pressing, light and compact construction in black plastic case.

• Pressing force in kN: 60
• Working pressure in bar: 700
• Cable lugs: standard Cu 16-300
• Connectors: standard Cu 16-120
• Dual-piston pump
• Weight in kg: 5,0
• Weight of set in kg: 6,5

in plastic case.

• Pressing force in kN: 60
• Working pressure in bar: 700
• Cable lugs: standard Cu 16-300
• Connectors: standard Cu 16-120
• Quick coupling
• Weight in kg: 2,8
• Weight of set in kg: 3,8

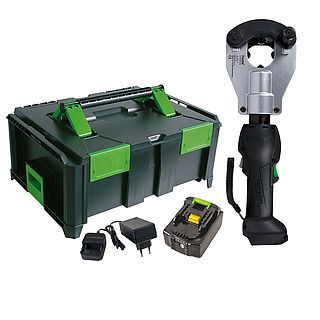

Crimping head can be rotated by 360°, manual return flow after perfect pressure, mandrel shape pressing.
Extent of supply: 1 crimping tool, 1 charger, 1 battery, 1 strap, in SysCon stacking box „SysCon M“ 220372.
• Pressing force in kN: 60
• Working pressure in bar: 700
• Head can be opened
• Cable lugs: standard Cu 25-400
• Connectors: standard Cu 25-400
• Pressing time, battery-operated in sec.: 6-12
• Battery charging time in min.: 60
• Battery type: Li-Ion, 18 V, 2 Ah
• With battery item no. 215523 and charger item no. 215527
• Weight in kg: 2,4
• Weight of set in kg: 7,9

Technical data and scope of delivery, see 216667-1.

With the different colours of the sensor LED, it shows whether the pressing has been completed successfully or which errors have occurred:
Light is green: Pressing completed as standard, motor stopped.
Light is orange: Battery voltage not sufficient
Light is red: Pressing interrupted before completed

The device also has 1 white LED designed to illuminate the working area.

Test pin for hydraulic four mandrel pressing tools

Crimping head can be rotated by 360°, manual return after completed pressing, light and compact construction in black plastic case.

• Pressing force in kN: 60
• Working pressure in bar: 700
• Head can be opened
• Cable lugs: standard Cu 25-400
• Connectors: standard Cu 25-400
• Dual-piston pump
• Weight in kg: 5,2
• Weight of set in kg: 6,7

in plastic case.

• Pressing force in kN: 60
• Working pressure in bar: 700
• Head can be opened
• Cable lugs: standard Cu 25-400
• Connectors: standard Cu 25-400
• Quick coupling
• Weight in kg: 3
• Weight of set in kg: 4

Template for hydraulic four mandrel pressing tools
