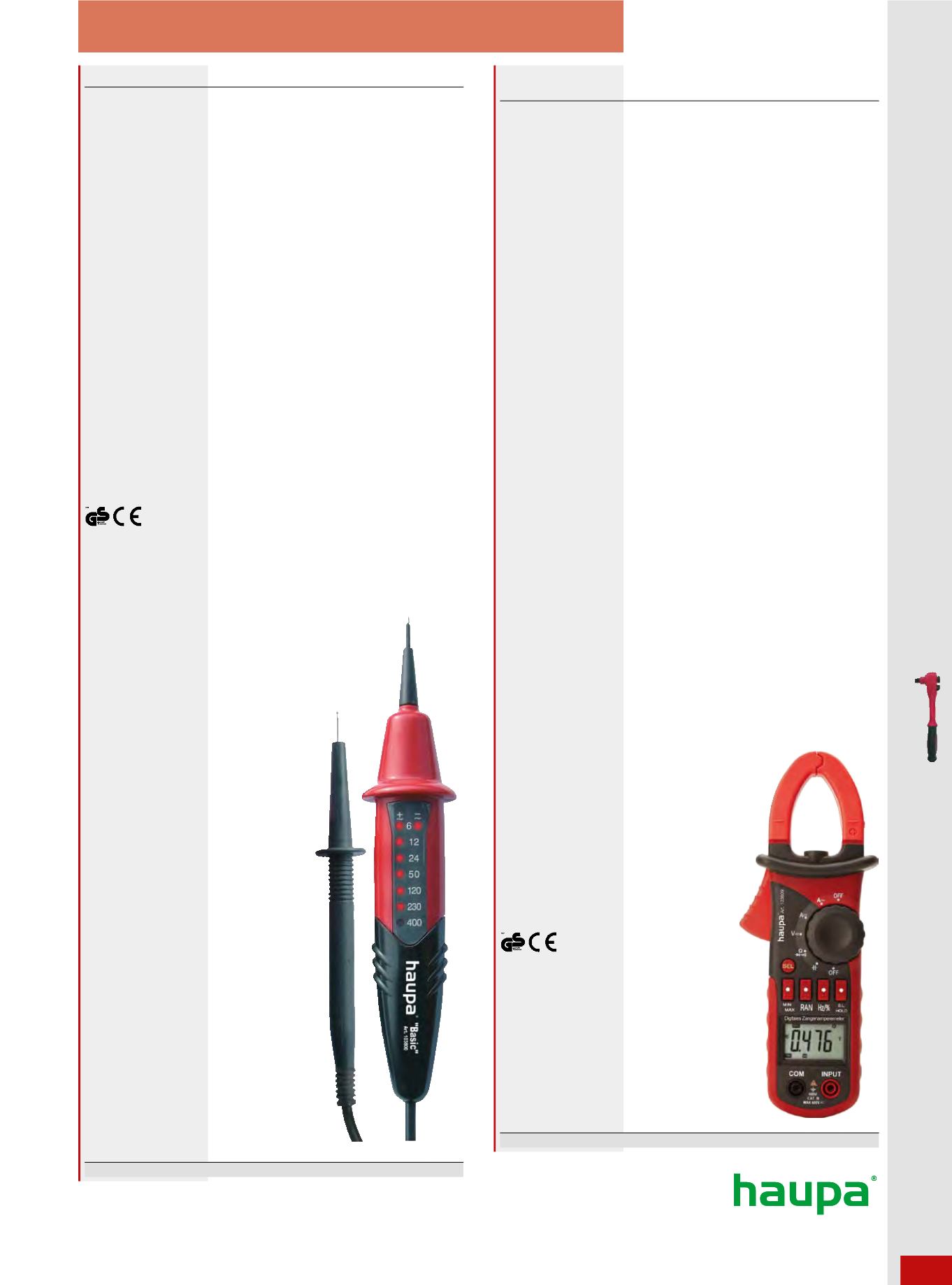

Voltage tester “Basic +”
“Multi Clamp II”
digital miniature clamp transducer AC/DC 600 V
The two-pole voltage tester reliably indicates direct and alternating voltages
within a range of 6 to 400 V in 7 intervals per LED (6, 12, 24, 50, 120, 230
and 400). The electronics also enable the determination of polarity and the
phase to protective conductor. The “Basic +” is characterised by a user-
friendly construction and robust housing that ensures long operational life. The
rubberised handles offer non-slip hold. The “Basic +” operates without batteries.
It takes its operating voltage from the test object.
Functions and benefits
• User-friendly and robust
• Voltage range up to 400 V AC/DC
• Phase search to protective conductor
Technical data
„Basic +“
Display:
Optical, 8 LEDs
Over-voltage category:
CAT III 400 V
Dimensions:
120 x 60 x 30 mm
Weight:
100 g
Colour:
Red/black
Accessories (optional):
Carry bag
Voltage range:
6 - 400 V AC/DC
Voltage supply:
Via measuring object
Polarity:
Yes (+,- LED)
Standard:
EN 61243-3:2010
Housing:
High quality plastic with rubberised handle area
Guarantee:
5 years
Thanks to the versatile measuring functions, the digital probe ampere meter
“Multi Clamp II” may be used universally. Handy details, such as the large display,
the manual or automatic measuring range selection and the measuring point
illumination, make operation particularly convenient and safe.
Functions and benefits
• Large range of functions
• Easy to read LCD
• LED measuring point illumination
Technical data
„Multi Clamp II“
Display:
LCD with 4 digits
Over-voltage category:
CAT III 600 V
Dimensions:
220 x 75 x 35 mm
Weight:
340g
Colour:
Red/black
Scope of delivery:
Including measuring cables, batteries
and carry bag
Voltage supply:
3x 1.5V
Diode test:
Test current - 1 mA, test voltage - 3.3 V
Throughput test:
Throughput tone under 30Ω
Direct voltage:
600m, 6, 60, 600V
Direct current:
60A, 600A
Alternating voltage:
600mV, 6, 60, 600V, 40 to 400Hz
Alternating current:
60A, 600A, 40 to 400Hz
Alternating current accuracy:
±3.0 % +10 digit
Alternating current, highest resolution: 10 mA
Direct current, highest resolution:
10 mA
Alternating voltage accuracy:
±1.5 % +10 digit to 600 mV /
±1.2 % +5 digit to 60 V /
±1.5 %+10 digit to 600 V
Alternating voltage, highest resolution: 100 μV
Alternating voltage input resistance:
10 MΩ
Direct voltage accuracy:
±0.8 % +3 digit to 60 V /
±1.0 %V +5 digit to 600 V
Direct voltage, highest resolution:
100 μV
Direct voltage input resistance:
10 MΩ
Frequency measuring tongs: 600 Hz, 1 kHz, > 1 A AC rms
Frequency measuring tongs, accuracy: ±1.5 % +5 digit to 1 kHz
Frequency measuring tongs, highest resolution: 100 mHz
Frequency measuring socket: 600 Hz, 6 kHz, 10 kHz, > 0.2 V AC rms
Frequency measuring socket, accuracy: ±1.5 % +5 digit to 10 kHz
Frequency measuring socket, highest resolution: 100 mHz
Sampling rate: 10 to 95 %, ±3.0 %, > 1 A AC rms
Sampling rate, frequency range: 10 Hz to 1 kHz
Sampling rate, capacity measurement: To 60 mF
Resistance accuracy: ±1.2 % +2 digit to 6 MΩ
±2.0 % +5 digit to 60 MΩ
Resistance highest accuracy: 100 MΩ
Diode test resolution: 1 mV
Diode test throughput test: Throughput tone under 30 Ω
Guarantee: 5 years
