Battery‑hydraulic combo set 1 in system case
Art. No. 216437-1

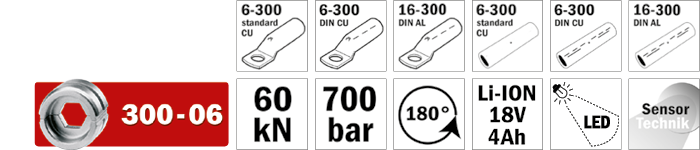

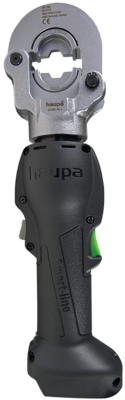

Battery powered crimping tool S0-6M
- with Sensor-Technologie
- Pressing force in kN: 60 kN
- Working pressure in bar: 700
- Head can be opened
- Opening/ Hub: 17 mm
- Pressing width: slim, without dies
- Pressing time, battery-operated in seconds: ca. 5
- Crimping range cable lugs: standard Cu 6 - 300 mm²
- DIN Cu 6 - 300 mm²
- DIN Al 16 - 300 mm²
- Crimping range connectors: Cu 6 - 300 mm²
- DIN Cu 6 - 300 mm²
- DIN Al 16 - 300 mm²
- Li‑Ion battery 18 V 2 Ah, Art. 215523
- Compact charger, Art. 215527
- LED lamp for illuminating work area

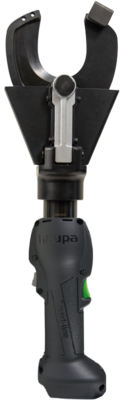

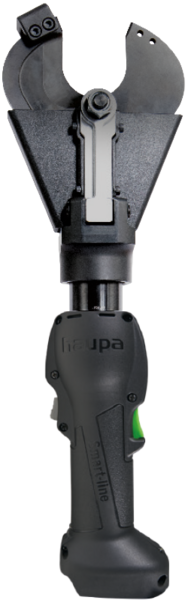

Battery-hydraulic cable cutter AS6-S50
For cutting copper and aluminium cables.
- Precise cut with little conductor deformation
- Cutting force kN: 60
- Work pressure in bar: 700
- Cutting width Ø: 50
- Cutting head 180° rotating
- Li‑Ion battery 18 V 2 Ah, Art. 215523
- Compact charger, Art. 215527
- LED lamp for illuminating work area

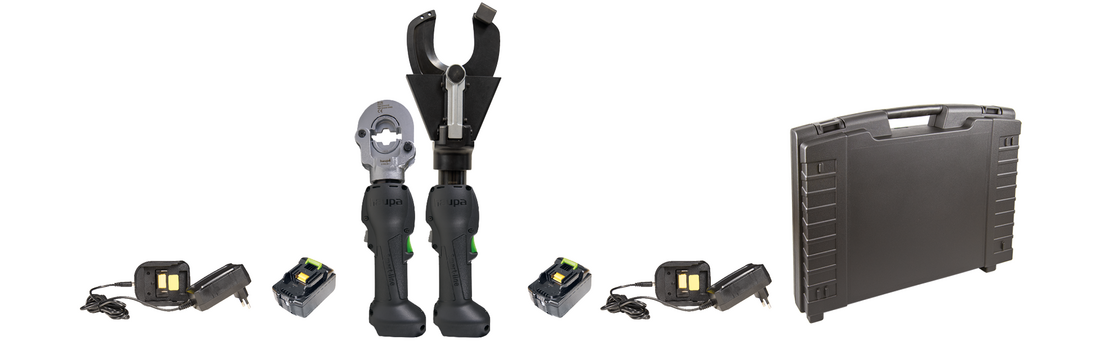

Battery‑hydraulic combo set 2 in system case
Art. No. 216438-1

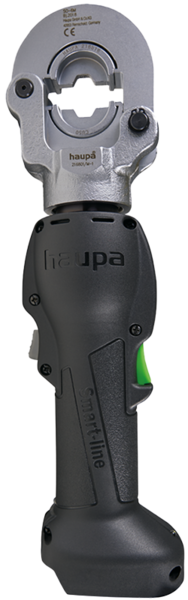

Battery powered crimping tool S0-6M
- with Sensor-Technologie
- Pressing force in kN: 60 kN
- Working pressure in bar: 700
- Head can be opened
- Opening/ Hub: 17 mm
- Pressing width: slim, without dies
- Pressing time, battery-operated in seconds: ca. 5
- Crimping range cable lugs: standard Cu 6 - 300 mm²
- DIN Cu 6 - 300 mm²
- DIN Al 16 - 300 mm²
- Crimping range connectors: Cu 6 - 300 mm²
- DIN Cu 6 - 300 mm²
- DIN Al 16 - 300 mm²
- Li‑Ion battery 18 V 2 Ah, Art. 215523
- Compact charger, Art. 215527
- LED lamp for illuminating work area

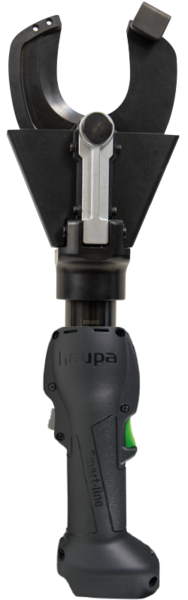

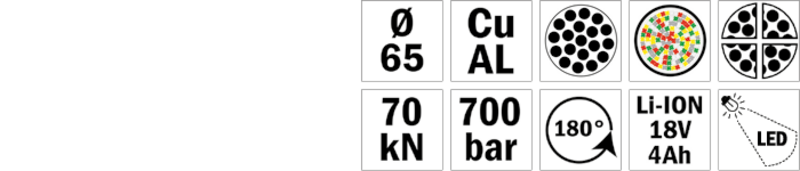

Battery-hydraulic cable cutter AS7-S65
For cutting copper and aluminium cables
- Precise cut with little conductor deformation
- Cutting force kN: 70
- Work pressure in bar: 700
- Cutting width Ø: 65
- Cutting head rotates 180°
- Li‑Ion battery 18 V 2 Ah, Art. 215523
- Compact charger, Art. 215527
- LED lamp for illuminating work area
Choose the right solution from our range of battery-powered hydraulic crimping tools.
All battery-powered tools for cutting, crimping and punching at a glance – in the new 18 V battery system brochure.
Discover it now and download the PDF.
