HUPcompact „HC05“ für MC4 Stecker

Tool frame made of hardened steel, crimp segments made of high quality carbon steel eroded, heat treated, polished and nickel plated

• High crimping forces easy to achieve

• Simple single-handed operation

• With unlockable positive ratchet

• 100% parallel feed

• Precision crimp

• Crimping force: 5 kN

• Small and compact design

• Service life: 50,000 crimps

• Roll-crimp (MC4) 2.5 / 4 / 6 mm²

Quantity	Art.No.	EAN	mm²	Compression shape	PU
	213096	4011923587239	2,5-6 mm²	Rollcrimp	1

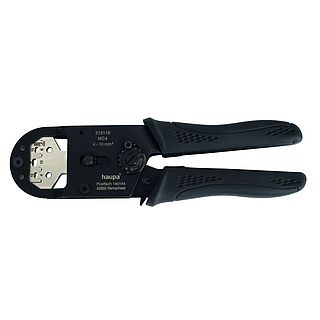

HUPcompact “HC06” for MC4 plug connectors (Multi Contact)

Tool frame made of hardened steel, crimp segments made of high quality carbon steel eroded, heat treated, polished and nickel plated

• High crimping forces easy to achieve

• Simple single-handed operation

• With unlockable positive ratchet

• 100% parallel feed

• Precision crimp

• Crimping force: 5 kN

• Small and compact design

• Service life: 50,000 crimps

• Roll-crimp (for MC4 plug connectors (Multi Contact)) 4 / 6 / 10 mm²

Quantity	Art.No.	EAN	Max. cable cross section	GL	Execution/operation	Press mold	pressing force	PU
	213110	4011923629120	4-10 mm	205 mm	mechanical	Compression shape	5 kN	1

HUPsolarKit 1

Contents: 211225 VDE cable cutter 160 mm for Ø 10 mm 201060 HUPstripPV 110806 assembly tool for MC4 plug connectors (Multi Contact) (2 pieces) 213096 HUPcompact "HC05" for MC4 plug connectors (Multi Contact) 220090 Case with insert

Quantity	Art.No.	EAN	Set	E-mechanic set	PU
	330044	4011923625252	5	Yes	1

HUPsolarKit 2

Contents: 201085 Cable cutter 160 mm dip-insulated for Ø 10 mm 201060 HUPstripPV 110806 Assembly tool for MC4 plug connectors (Multi Contact) (2 pieces) 213096 HUPcompact "HC05" for MC4 plug connectors (Multi Contact) 220105 Belt bag "ToolBelt" with 8 compartments

Quantity	Art.No.	EAN	Set	E-mechanic set	PU
	330045	4011923625269	6	Yes	1

HUPsolarKit3

Contents:

211225 Cable cutters VDE HUPtriCut | 160 mm for Ø 8 mm

201060 Cable stripper HUPstripPV | 2,5 – 6,0 mm²

110806 assembly tool for MC4 plug connectors (Multi Contact) (2 pieces)

211659 Crimping pliers photovoltaic | for MC4 plug connectors (Multi Contact) 2,5 – 6 mm²

330046/K Case with insert

Quantity	Art.No.	EAN	Weight	Set	Packaging	PU
	330046	4011923627089	1,32 kg	5 Pieces	Case	1

HUPsolarKit4

Contents:

211225 Cable cutters VDE HUPtriCut | 160 mm for Ø 8 mm

201060 Cable stripper HUPstripPV | 2,5 – 6,0 mm²

110806 assembly tool for MC4 plug connectors (Multi Contact) (2 pieces)

213110 HUPcompact HC06 for MC4 plug connectors (Multi Contact) | 4 – 10 mm²

330048/K Case with insert

Quantity	Art.No.	EAN	Weight	Set	Packaging	PU
	330048	4011923629151	1,32 kg	5 Pieces	Case	1

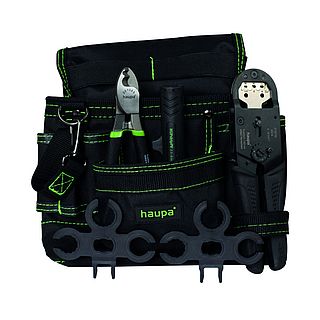

HUPsolarKit5

Contents:

201085 Cable cutter “HUPtriCut” dip-insulated | 160 mm for Ø 8 mm

201060 Cable stripper “HUPstripPV” | 2,5 – 6,0 mm²

110806 assembly tool for MC4 plug connectors (Multi Contact) (2 pieces)

213110 HUPcompact “HC06” for MC4 plug connectors (Multi Contact) | 4 – 10 mm²

220105 Belt bag “ToolBelt” with 8 compartments

Quantity	Art.No.	EAN	Weight	Set	Packaging	PU
	330050	4011923629274	0,7 kg	5 Pieces	Tasche	1

Assembly tool for MC4 plug connectors (Multi Contact)

For assembling and loosening the cable glands of MC4 plug connectors (Multi Contact), easy loosening of the locks on MC4 plug connector (Multi Contact) housings, made of glass-fiber reinforced plastic

Quantity	Art.No.	EAN	Version	PU
	110806	4011923625238	Calibration key	1
