Electrical insulating tape “HUPtape-15"

Technical information
Processing temperature: -18°C to +60°C
Application temperature: -30°C to +105°C
UV resistance: excellent
Thickness: 0.15 mm
Elongation at tear point at 23°C: 240%
Tearing force: 27 N/cm
Puncture strength: 50 kV/mm
Adhesive strength: 3.5 N/cm
Flammability: self-extinguishing
Material: PVC

Quantity Art.No. EAN LengthWidthThicknessColourMaterialInsulatingSelf-extinguishingUV resistantSelf sticking/amalgamatingVulcanizingPU

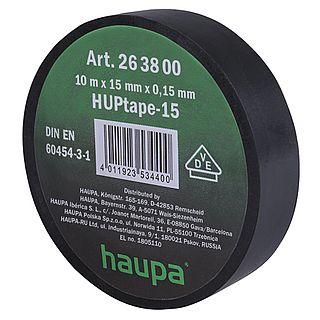

263800 4011923534394 10 m 15 mm 0.15 mm PVC Yes Yes No No No 10
263802 4011923534400 10 m 15 mm 0.15 mm PVC Yes Yes No No No 10
263804 4011923534417 10 m 15 mm 0.15 mm Grey PVC Yes Yes No No No 10
263806 4011923534424 10 m 15 mm 0.15 mm Yellow PVC Yes Yes No No No 10
263808 4011923534431 10 m 15 mm 0.15 mm Blue PVC Yes Yes No No No 10
263810 4011923534448 10 m 15 mm 0.15 mm Red PVC Yes Yes No No No 10
263812 4011923534455 10 m 15 mm 0.15 mm Purple/violet PVC Yes Yes No No No 10
263814 4011923534462 10 m 15 mm 0.15 mm Green PVC Yes Yes No No No 10
263816 4011923534479 10 m 15 mm 0.15 mm Brown PVC Yes Yes No No No 10
263818 4011923534486 10 m 15 mm 0.15 mm Green/yellow PVC Yes Yes No No No 10

Electrical insulating tape “HUPtape-15"

Technical information
Processing temperature: -18°C to +60°C
Application temperature: -30°C to +105°C
UV resistance: excellent
Thickness: 0.15 mm
Elongation at tear point at 23°C: 240%
Tearing force: 27 N/cm
Puncture strength: 50 kV/mm
Adhesive strength: 3.5 N/cm
Flammability: self-extinguishing
Material: PVC

Quantity Art.No. EAN LengthWidthThicknessColourMaterialInsulatingSelf-extinguishingUV resistantSelf sticking/amalgamatingVulcanizingPU
263822 4011923534509 20 m 15 mm 0.15 mm Black PVC Yes Yes No No No 10
263824 4011923534516 20 m 15 mm 0.15 mm White PVC Yes Yes No No No 10
263826 4011923534523 20 m 15 mm 0.15 mm Grey PVC Yes Yes No No No 10
263828 4011923534530 20 m 15 mm 0.15 mm Yellow PVC Yes Yes No No No 10
263830 4011923534547 20 m 15 mm 0.15 mm Blue PVC Yes Yes No No No 10
263832 4011923534554 20 m 15 mm 0.15 mm Red PVC Yes Yes No No No 10
263834 4011923534561 20 m 15 mm 0.15 mm Purple/violet PVC Yes Yes No No No 10
263836 4011923534578 20 m 15 mm 0.15 mm Green PVC Yes Yes No No No 10
263838 4011923534585 20 m 15 mm 0.15 mm Brown PVC Yes Yes No No No 10
263840 4011923534592 20 m 15 mm 0.15 mm Green/yellow PVC Yes Yes No No No 10

Electrical insulating tape “HUPtape-15"

Technical information
Processing temperature: -18°C to +60°C
Application temperature: -30°C to +105°C
UV resistance: excellent
Thickness: 0.15 mm
Elongation at tear point at 23°C: 240%
Tearing force: 27 N/cm
Puncture strength: 50 kV/mm
Adhesive strength: 3.5 N/cm
Flammability: self-extinguishing
Material: PVC

Quantity Art.No. EAN LengthWidthThicknessColourMaterialInsulatingSelf-extinguishingUV resistantSelf sticking/amalgamatingVulcanizingPU

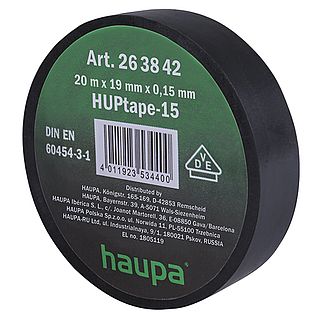

263842 4011923534608 20 m 19 mm 0.15 mm Black PVC Yes Yes No No No 8
263844 4011923534615 20 m 19 mm 0.15 mm White PVC Yes Yes No No No 8
263846 4011923534622 20 m 19 mm 0.15 mm Grey PVC Yes Yes No No No 8
263848 4011923534639 20 m 19 mm 0.15 mm Yellow PVC Yes Yes No No No 8
263850 4011923534646 20 m 19 mm 0.15 mm Blue PVC Yes Yes No No No 8
263852 4011923534653 20 m 19 mm 0.15 mm Red PVC Yes Yes No No No 8
263854 4011923534660 20 m 19 mm 0.15 mm Purple/violet PVC Yes Yes No No No 8
263856 4011923534677 20 m 19 mm 0.15 mm Green PVC Yes Yes No No No 8
263858 4011923534684 20 m 19 mm 0.15 mm Brown PVC Yes Yes No No No 8
263860 4011923534691 20 m 19 mm 0.15 mm Green/yellow PVC Yes Yes No No No 8

Electrical insulating tape “HUPtape-15"

Technical information
Processing temperature: -18°C to +60°C
Application temperature: -30°C to +105°C
UV resistance: excellent
Thickness: 0.15 mm
Elongation at tear point at 23°C: 240%
Tearing force: 27 N/cm
Puncture strength: 50 kV/mm
Adhesive strength: 3.5 N/cm
Flammability: self-extinguishing
Material: PVC

Quantity Art.No. EAN LengthWidthThicknessColourMaterialInsulatingSelf-extinguishingUV resistantSelf sticking/amalgamatingVulcanizingPU
263902 4011923559700 25 m 19 mm 0.15 mm Black PVC Yes Yes No No No 10
263904 4011923559717 25 m 19 mm 0.15 mm White PVC Yes Yes No No No 10
263906 4011923559724 25 m 19 mm 0.15 mm Grey PVC Yes Yes No No No 10
263908 4011923559731 25 m 19 mm 0.15 mm Yellow PVC Yes Yes No No No 10
263910 4011923559748 25 m 19 mm 0.15 mm Blue PVC Yes Yes No No No 10
263912 4011923559755 25 m 19 mm 0.15 mm Red PVC Yes Yes No No No 10
263914 4011923559762 25 m 19 mm 0.15 mm Purple/violet PVC Yes Yes No No No 10
263916 4011923559779 25 m 19 mm 0.15 mm Green PVC Yes Yes No No No 10
263918 4011923559786 25 m 19 mm 0.15 mm Brown PVC Yes Yes No No No 10
263920 4011923559793 25 m 19 mm 0.15 mm Green/yellow PVC Yes Yes No No No 10

Electrical insulating tape “HUPtape-15"

Technical information
Processing temperature: -18°C to +60°C
Application temperature: -30°C to +105°C
UV resistance: excellent
Thickness: 0.15 mm
Elongation at tear point at 23°C: 240%
Tearing force: 27 N/cm
Puncture strength: 50 kV/mm
Adhesive strength: 3.5 N/cm
Flammability: self-extinguishing
Material: PVC

Quantity Art.No. EAN LengthWidthThicknessColourMaterialInsulatingSelf-extinguishingUV resistantSelf sticking/amalgamatingVulcanizingPU
263862 4011923534707 20 m 25 mm 0.15 mm Black PVC Yes Yes No No No 6
263864 4011923534714 20 m 25 mm 0.15 mm White PVC Yes Yes No No No 6
263866 4011923534721 20 m 25 mm 0.15 mm Grey PVC Yes Yes No No No 6
263868 4011923534738 20 m 25 mm 0.15 mm Yellow PVC Yes Yes No No No 6
263870 4011923534745 20 m 25 mm 0.15 mm Blue PVC Yes Yes No No No 6
263872 4011923534752 20 m 25 mm 0.15 mm Red PVC Yes Yes No No No 6
263874 4011923534769 20 m 25 mm 0.15 mm Purple/violet PVC Yes Yes No No No 6
263876 4011923534776 20 m 25 mm 0.15 mm Green PVC Yes Yes No No No 6
263878 4011923534783 20 m 25 mm 0.15 mm Brown PVC Yes Yes No No No 6
263880 4011923534790 20 m 25 mm 0.15 mm Green/yellow PVC Yes Yes No No No 6

Electrical insulating tape “HUPtape-15"

Technical information
Processing temperature: -18°C to +60°C
Application temperature: -30°C to +105°C
UV resistance: excellent
Thickness: 0.15 mm
Elongation at tear point at 23°C: 240%
Tearing force: 27 N/cm
Puncture strength: 50 kV/mm
Adhesive strength: 3.5 N/cm
Flammability: self-extinguishing
Material: PVC

Quantity Art.No. EAN LengthWidthThicknessColourMaterialInsulatingSelf-extinguishingUV resistantSelf sticking/amalgamatingVulcanizingPU
263882 4011923553654 33 m 19 mm 0.15 mm Black PVC Yes Yes No No No 8
263884 4011923553661 33 m 19 mm 0.15 mm White PVC Yes Yes No No No 8
263886 4011923553678 33 m 19 mm 0.15 mm Grey PVC Yes Yes No No No 8
263888 4011923553715 33 m 19 mm 0.15 mm Yellow PVC Yes Yes No No No 8
263890 4011923553722 33 m 19 mm 0.15 mm Blue PVC Yes Yes No No No 8
263892 4011923553739 33 m 19 mm 0.15 mm Red PVC Yes Yes No No No 8
263894 4011923553746 33 m 19 mm 0.15 mm Purple/violet PVC Yes Yes No No No 8
263896 4011923553753 33 m 19 mm 0.15 mm Green PVC Yes Yes No No No 8
263898 4011923553760 33 m 19 mm 0.15 mm Brown PVC Yes Yes No No No 8
263900 4011923553777 33 m 19 mm 0.15 mm Green/yellow PVC Yes Yes No No No 8

Rainbow-Pack

Technical information
Processing temperature: -18°C to +60°C
Application temperature: -30°C to +105°C
UV resistance: excellent
Thickness: 0.15 mm
Elongation at tear point at 23°C: 240%
Tearing force: 27 N/cm
Puncture strength: 50 kV/mm
Adhesive strength: 3.5 N/cm
Flammability: self-extinguishing
Material: PVC

Quantity Art.No. EAN LengthWidthThicknessColourMaterialInsulatingSelf-extinguishingUV resistantSelf sticking/amalgamatingVulcanizingPU

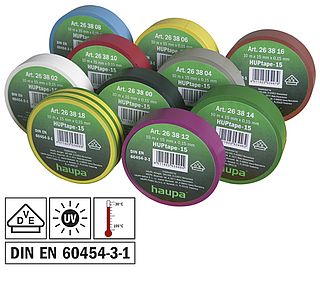

263820 4011923534493 10 m 15 mm 0.15 mm Other PVC Yes Yes No No No 1

Rainbow-Pack

Technical information
Processing temperature: -18°C to +60°C
Application temperature: -30°C to +105°C
UV resistance: excellent
Thickness: 0.15 mm
Elongation at tear point at 23°C: 240%
Tearing force: 27 N/cm
Puncture strength: 50 kV/mm
Adhesive strength: 3.5 N/cm
Flammability: self-extinguishing
Material: PVC

Quantity Art.No. EAN LengthWidthThicknessColourMaterialInsulatingSelf-extinguishingUV resistantSelf sticking/amalgamatingVulcanizingPU
263861 4011923572457 20 m 19 mm 0.15 mm Other PVC Yes Yes No No No 1

Cold-resistant insulation tape „HUPtape-22plus“

• Excellent wrapping properties
• Can be processed even at very low temperatures
• Extreme weather proof (UV resistant)
• Resistant to corrosion, acids and lyes
• Processing temperature: -18°C to + 60°C
• Individually packaged in plastic box

Quantity Art.No. EAN LengthWidthThicknessColourInsulatingUV resistantSelf sticking/amalgamatingVulcanizingPU
263930 4011923561352 20 m 19 mm 0.215 mm Yes Yes No No 1

Self-welding insulation tape „HUPtape76seal“

• Forms homogenous welding wraps
• Excellent dielectric properties
• Weather proof (UV resistant)
• Insulation on medium voltage cables up to 69 kV
• Resistant to corrosion, acids and lyes
• Individual in box packaging

Quantity Art.No. EAN LengthWidthThicknessColourMaterialInsulatingUV resistantSelf sticking/amalgamatingVulcanizingPU
263940 4011923561369 9 m 19 mm 0.76 mm Caoutchouc Yes Yes Yes No 1
