Torque wrenches 1000 V 10 – 50 Nm
Art. No. 220451/50
- full insulated, non-slip grip
- reversible ratchet with 45 teeth
- material: injection-moulded, shock-resistant plastic
- tested up to 1000 V
- measuring range from 10 – 50 Nm
- measurement accuracy ± 4 %
- drive 1/2"
- with viewing window display
- locking device to prevent unintentional changes to the torque
- protection against accidental loosening of the attachment
- clearly audible or noticeable click when the set torque is reached
- easy to read scale
- with storage case
- total length: 398 mm
- weight: 1,08 kg
Torque wrenches 1000 V 20 – 100 Nm
Art. No. 220451/100
- full insulated, non-slip grip
- reversible ratchet with 45 teeth
- material: injection-moulded, shock-resistant plastic
- tested up to 1000 V
- measuring range from 20 – 100 Nm
- measurement accuracy ± 4 %
- drive 1/2"
- with viewing window display
- locking device to prevent unintentional changes to the torque
- protection against accidental loosening of the attachment
- clearly audible or noticeable click when the set torque is reached
- easy to read scale
- with storage case
- total length: 442 mm
- weight: 1,18 kg
Torque wrenches 1000 V 40 – 200 Nm
Art. No. 220451/200
- full insulated, non-slip grip
- reversible ratchet with 45 teeth
- material: injection-moulded, shock-resistant plastic
- tested up to 1000 V
- measuring range from 40 – 200 Nm
- measurement accuracy ± 4 %
- drive 1/2"
- with viewing window display
- locking device to prevent unintentional changes to the torque
- protection against accidental loosening of the attachment
- clearly audible or noticeable click when the set torque is reached
- easy to read scale
- with storage case
- total length: 530 mm
- weight: 1,36 kg

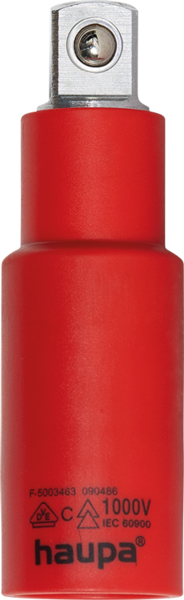

Extension VDE
Art. No. 220446
- fully insulated 1/2" extension
- material
insulation: injection-moulded, shock-resistant plastic
adapter: Chrome vanadium steel, chrome-plated - protection against accidental loosening of the attachment
- total length: 86 mm
- weight: 0,115 kg

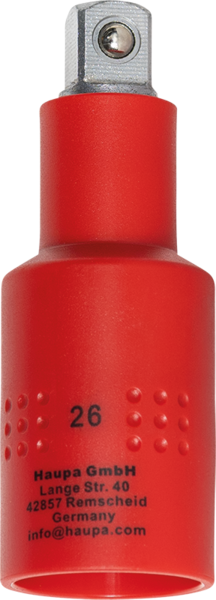

Adapter VDE 1/2" to 3/8"
Art. No. 220453
- fully insulated adapter for use with 1/2" attachments with 3/8" drives
- material
insulation: injection-moulded, shock-resistant plastic
adapter: Chrome vanadium steel, chrome-plated - protection against accidental loosening of the attachment
- total length: 72 mm
- weight: 0,072 kg

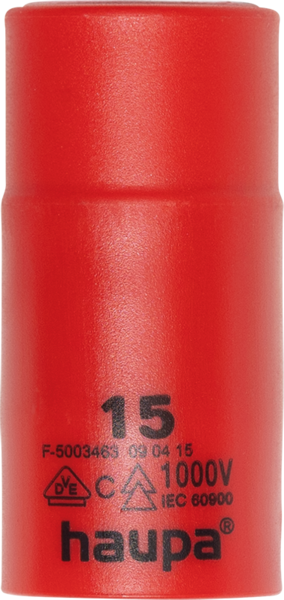

Hexagon socket VDE WS 15
Art. No. 220467
- fully insulated insert for hexagonal screws
- material
insulation: injection-moulded, shock-resistant plastic
adapter: Chrome vanadium steel - wrench size 15 mm
- drive 1/2"
- total length: 54 mm
- weight: 0,062 kg

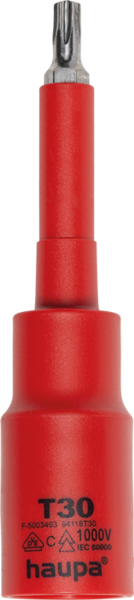

TX sockets long VDE 118 mm
- fully insulated insert for Tx screws
- material
insulation: injection-moulded, shock-resistant plastic - drive 1/2"
| Art. No. | Size | drive | TL | kg | PU |
|---|---|---|---|---|---|
| 220495/T30 | 30 | 1/2" | 118 | 0,094 | 1 |
| 220495/T40 | 40 | 1/2" | 118 | 0,095 | 1 |
| 220495/T45 | 45 | 1/2" | 118 | 0,095 | 1 |
| 220495/T50 | 50 | 1/2" | 118 | 0,096 | 1 |
| 220495/T55 | 55 | 1/2" | 118 | 0,109 | 1 |

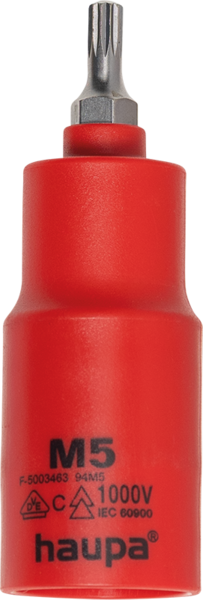

Spline Sockets VDE
- fully insulated insert for XZN screws
- material
insulation: injection-moulded, shock-resistant plastic - drive 1/2"
| Art. No. | Size | drive | TL | kg | PU |
|---|---|---|---|---|---|
| 220498/M5 | 5 | 1/2" | 77 | 0,075 | 1 |
| 220498/M6 | 6 | 1/2" | 77 | 0,076 | 1 |
| 220498/M8 | 8 | 1/2" | 77 | 0,077 | 1 |
| 220498/M10 | 10 | 1/2" | 77 | 0,079 | 1 |

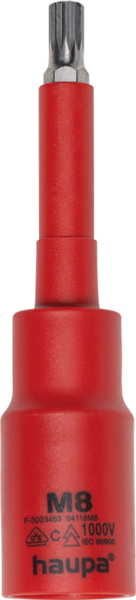

Spline sockets long VDE 118 mm
- fully insulated insert for XZN screws
- material
insulation: injection-moulded, shock-resistant plastic - drive 1/2"
- total length 118 mm
| Art. No. | Size | drive | TL | kg | PU |
|---|---|---|---|---|---|
| 220498/LM8 | 8 | 1/2" | 118 | 0,095 | 1 |
| 220498/LM10 | 10 | 1/2" | 118 | 0,108 | 1 |
Hexagon sockets long VDE 80 mm
- fully insulated insert for hexagonal screws
- material
insulation: injection-moulded, shock-resistant plastic
adapter: Chrome vanadium steel - wrench size 15 mm
- drive 1/2"
| Art. No. | Size | drive | TL | kg | PU |
|---|---|---|---|---|---|
| 220458/80 | 10 | 1/2" | 80 | 0,083 | 1 |
| 220460/80 | 11 | 1/2" | 80 | 0,092 | 1 |
| 220462/80 | 12 | 1/2" | 80 | 0,104 | 1 |
| 220464/80 | 13 | 1/2" | 80 | 0,111 | 1 |
| 220466/80 | 14 | 1/2" | 80 | 0,121 | 1 |
| 220467/80 | 15 | 1/2" | 80 | 0,128 | 1 |
| 220468/80 | 17 | 1/2" | 80 | 0,145 | 1 |
| 220470/80 | 19 | 1/2" | 80 | 0,155 | 1 |

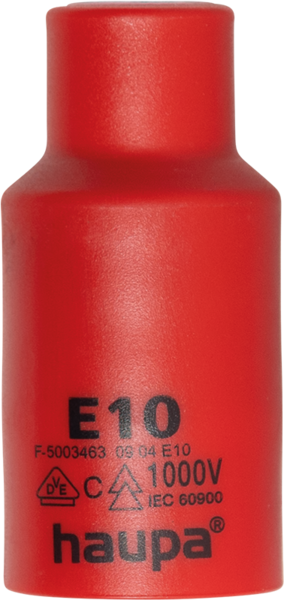

TX sockets external VDE
- fully insulated insert for external TX screws
- material
insulation: injection-moulded, shock-resistant plastic
adapter: Chrome vanadium steel - drive 1/2"
| Art. No. | Size | drive | TL | kg | PU |
|---|---|---|---|---|---|
| 220497/E10 | 10 | 1/2" | 55 | 0,055 | 1 |
| 220497/E11 | 11 | 1/2" | 55 | 0,054 | 1 |
| 220497/E12 | 12 | 1/2" | 55 | 0,054 | 1 |
| 220497/E14 | 14 | 1/2" | 55 | 0,056 | 1 |
| 220497/E16 | 16 | 1/2" | 55 | 0,061 | 1 |
| 220497/E18 | 18 | 1/2" | 55 | 0,060 | 1 |
| 220497/E20 | 20 | 1/2" | 55 | 0,071 | 1 |
| 220497/E22 | 22 | 1/2" | 55 | 0,082 | 1 |
| 220497/E24 | 24 | 1/2" | 55 | 0,088 | 1 |
