Torque wrenches 1000 V 5 – 25 Nm
Art. No. 220415/25
- full insulated, non-slip grip
- reversible ratchet with 45 teeth
- material: injection-moulded, shock-resistant plastic
- measuring range from 5 – 25 Nm
- measurement accuracy ± 4 %
- drive 3/8"
- with viewing window display
- locking device to prevent unintentional changes to the torque
- protection against accidental loosening of the attachment
- clearly audible or noticeable click when the set torque is reached
- easy to read scale
- with storage case
- total length: 310 mm
- weight: 0,797 kg
Torque wrenches 1000 V 10 – 50 Nm short
Art. No. 220415/50S
- full insulated, non-slip grip
- reversible ratchet with 45 teeth
- material: injection-moulded, shock-resistant plastic
- measuring range from 10 – 50 Nm
- measurement accuracy ± 4 %
- drive 3/8"
- with viewing window display
- locking device to prevent unintentional changes to the torque
- protection against accidental loosening of the attachment
- clearly audible or noticeable click when the set torque is reached
- easy to read scale
- with storage case
- total length: 340 mm
- weight: 0,83 kg
Torque wrenches 1000 V 20 – 100 Nm
Art. No. 220415/100
- full insulated, non-slip grip
- reversible ratchet with 45 teeth
- material: injection-moulded, shock-resistant plastic
- measuring range from 20 – 100 Nm
- measurement accuracy ± 4 %
- drive 3/8"
- with viewing window display
- locking device to prevent unintentional changes to the torque
- protection against accidental loosening of the attachment
- clearly audible or noticeable click when the set torque is reached
- easy to read scale
- with storage case
- total length: 432 mm
- weight: 1,05 kg

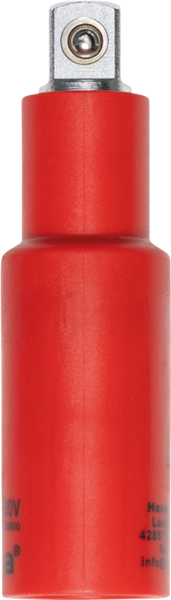

Extension VDE
Art. No. 220445
- fully insulated 3/8" extension
- material
insulation: injection-moulded, shock-resistant plastic
adapter: Chrome vanadium steel, chrome-plated - protection against accidental loosening of the attachment
- total length: 79 mm
- weight: 0,068 kg

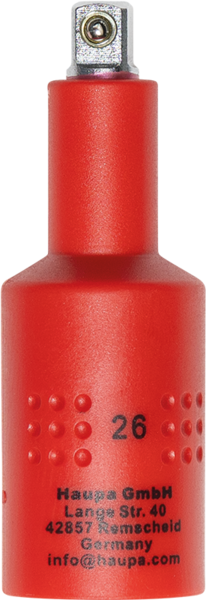

Adapter VDE 3/8" to 1/4"
Art. No. 220448
- fully insulated adapter for use with 1/4" attachments with 3/8" drives
- material
insulation: injection-moulded, shock-resistant plastic
adapter: Chrome vanadium steel, chrome-plated - protection against accidental loosening of the attachment
- total length: 65 mm
- weight: 0,040 kg
Adapter VDE 3/8" to 1/2"
Art. No. 220451
- fully insulated adapter for use with 1/2" attachments with 3/8" drives
- material
insulation: injection-moulded, shock-resistant plastic
adapter: Chrome vanadium steel, chrome-plated - protection against accidental loosening of the attachment
- total length: 69 mm
- weight: 0,077 kg

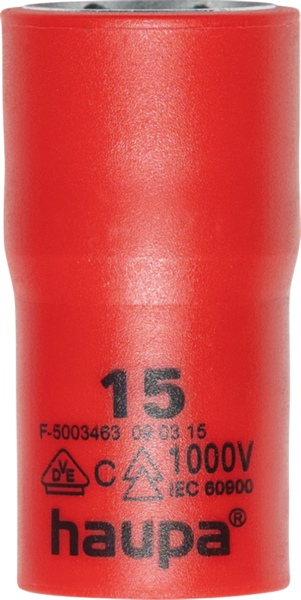

Hexagon socket VDE WS 15
Art. No. 220427
- fully insulated insert for hexagonal screws
- material
insulation: injection-moulded, shock-resistant plastic
adapter: Chrome vanadium steel - wrench size 15 mm
- drive 3/8"
- total length: 30 mm
- weight: 0,040 kg

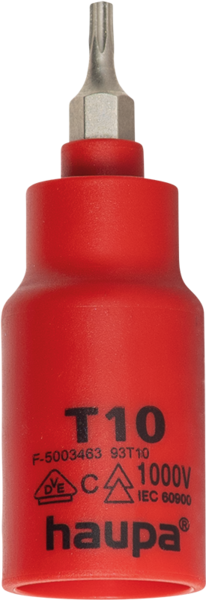

TX sockets VDE
- fully insulated insert for Tx screws
- material
insulation: injection-moulded, shock-resistant plastic - drive 3/8"
| Art. No. | Size | drive | TL | kg | PU |
|---|---|---|---|---|---|
| 220359/T10 | 10 | 3/8" | 65 | 0,038 | 1 |
| 220359/T15 | 15 | 3/8" | 65 | 0,038 | 1 |
| 220359/T20 | 20 | 3/8" | 65 | 0,039 | 1 |
| 220359/T25 | 25 | 3/8" | 65 | 0,038 | 1 |
| 220359/T27 | 27 | 3/8" | 65 | 0,039 | 1 |
| 220359/T30 | 30 | 3/8" | 65 | 0,039 | 1 |
| 220359/T40 | 40 | 3/8" | 65 | 0,039 | 1 |
| 220359/T45 | 45 | 3/8" | 65 | 0,041 | 1 |
| 220359/T50 | 50 | 3/8" | 65 | 0,042 | 1 |
| 220359/T55 | 55 | 3/8" | 65 | 0,050 | 1 |

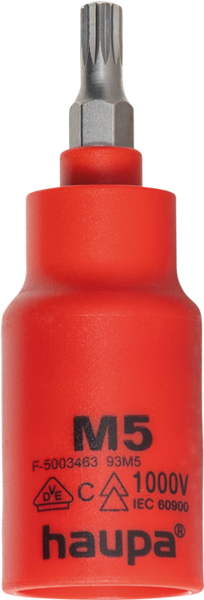

Spline sockets VDE
- fully insulated insert for XZN screws
- material
insulation: injection-moulded, shock-resistant plastic - drive 3/8"
| Art. No. | Size | drive | TL | kg | PU |
|---|---|---|---|---|---|
| 220442/M5 | 5 | 3/8" | 64 | 0,039 | 1 |
| 220442/M6 | 6 | 3/8" | 64 | 0,039 | 1 |
| 220442/M8 | 8 | 3/8" | 64 | 0,040 | 1 |
| 220442/M10 | 10 | 3/8" | 64 | 0,049 | 1 |

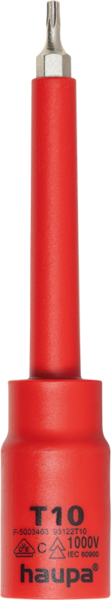

TX sockets long VDE 120 mm
- fully insulated insert for Tx screws
- material
insulation: injection-moulded, shock-resistant plastic - drive 3/8"
- total length: 120 mm
| Art. No. | Size | drive | TL | kg | PU |
|---|---|---|---|---|---|
| 220441/T10 | 10 | 3/8" | 120 | 0,055 | 1 |
| 220441/T15 | 15 | 3/8" | 120 | 0,055 | 1 |
| 220441/T20 | 20 | 3/8" | 120 | 0,055 | 1 |
| 220441/T25 | 25 | 3/8" | 120 | 0,055 | 1 |
| 220441/T27 | 27 | 3/8" | 120 | 0,056 | 1 |
| 220441/T30 | 30 | 3/8" | 120 | 0,056 | 1 |
| 220441/T40 | 40 | 3/8" | 120 | 0,057 | 1 |
| 220441/T45 | 45 | 3/8" | 120 | 0,068 | 1 |
| 220441/T50 | 50 | 3/8" | 120 | 0,069 | 1 |
| 220441/T55 | 55 | 3/8" | 120 | 0,090 | 1 |
TX sockets external VDE
- fully insulated insert for external TX screws
- material
insulation: injection-moulded, shock-resistant plastic
adapter: Chrome vanadium steel - drive 3/8"
| Art. No. | Size | drive | TL | kg | PU |
|---|---|---|---|---|---|
| 220358/E6 | 6 | 3/8" | 44 | 0,025 | 1 |
| 220358/E7 | 7 | 3/8" | 44 | 0,025 | 1 |
| 220358/E8 | 8 | 3/8" | 44 | 0,027 | 1 |
| 220358/E10 | 10 | 3/8" | 44 | 0,028 | 1 |
| 220358/E11 | 11 | 3/8" | 44 | 0,028 | 1 |
| 220358/E12 | 12 | 3/8" | 44 | 0,029 | 1 |
| 220358/E14 | 14 | 3/8" | 44 | 0,035 | 1 |
| 220358/E16 | 16 | 3/8" | 44 | 0,037 | 1 |
| 220358/E18 | 18 | 3/8" | 44 | 0,046 | 1 |
