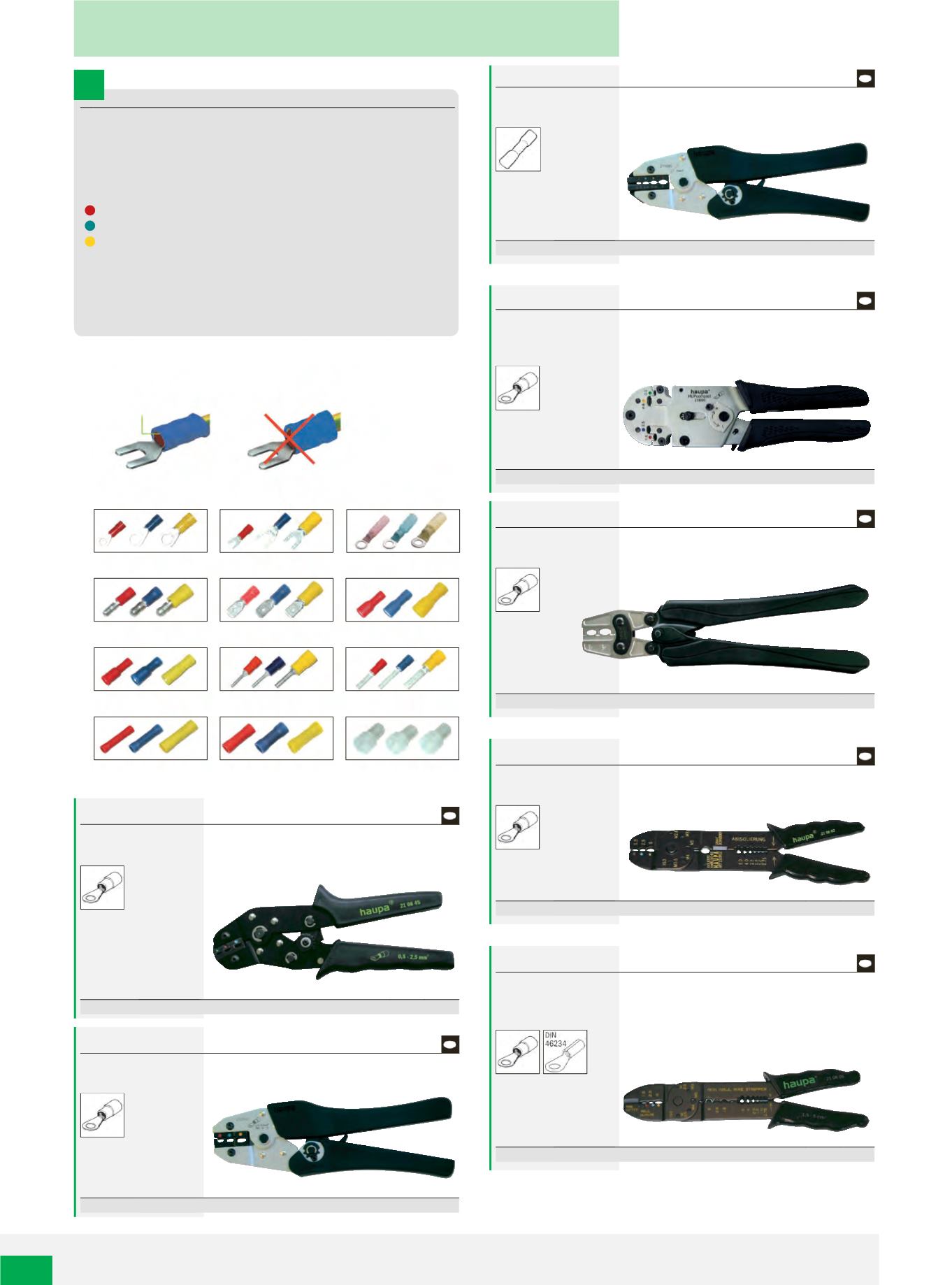

Crimping pliers for insulated crimp cable lugs
INFO
Crimping pliers for insulated crimp cable lugs
Insulated cable lugs and crimp cable lugs are crimped in an oval form.
The coloured marking of the wire cross section to the insulated cable
lug is defined in DIN 46245, Parts 1, 2 and 3.
Red => stands for 0.5 to 1 mm²
Blue => stands for >1.5 to 2.5 mm²
Yellow => stands for >2.5 to 6 mm²
As the cable lug is rolled from a metal sheet, attention should be paid
to the position of the butted edge. It should be in the middle of the
top profile. If it is on the side, the edge opens up and the wire is not
gastight or adequately clamped.
Crimping pliers
for insulated crimp cable lugs, short construction, 20% angled handy form,
with locking device, with adjustable crimp pressure,
oval pressing
Art. no.
kg PU
210845
0,343 1
mm²
0,08 - 2,5
Crimping pliers
for insulated crimp cable lugs, with locking device, with adjustable crimp
pressure, chrome plated,
oval pressing
Art. no.
kg PU
210761
0,566 1
mm²
0,5 - 6
Crimping pliers
for shrink connectors, with locking device, with adjustable crimp pressure,
chrome plated,
oval pressing
Art. no.
kg PU
211695
0,566 1
mm²
0,5 - 10
for insulated cable lugs and connectors, 100% parallel crimp, precision crimp,
handle force: 5 kN, small compact construction, life span: 50,000 crimp cycles,
oval pressing
Art. no.
kg PU
213090
0,578 1
Ø
0,1 - 6
Crimping pliers
for insulated crimp cable lugs, lever translated version for better transmission
of force, with unlockable locking mechanism,
oval pressing
Art. no.
kg PU
210827
0,472 1
mm²
10 - 16
Crimping pliers
for insulated crimp cable lugs with wire-and bolt-cutters and wire stripper with
threaded bolt-cutter,
oval pressing
Art. no.
kg PU
210802
0,178 1
mm²
0,5 - 6
Combi-Crimping pliers
for insulated and uninsulated crimp cable lugs and connectors from 0.5 - 6
mm², C 45, cutting edges induction hardened, with wire-and bolt-cutters and
wire stripper with threaded bolt-cutter,
oval pressing
Art. no.
kg PU
210808
0,198 1
mm²
0,75 - 6
HUPcompact „HC01”
Ring terminals
Round terminals
Round sleeves
Butt connectors
Fork terminals
Shrinkable connectors
Flat terminals
Socket sleeves (female)
Round pins
Socket sleeves (male)
Parallel connectors
End connectors
Butted edge
