PU Packing unit PE Price unit
The legend for abbreviations for all table headers can be found sorted alphabetically on page 408.

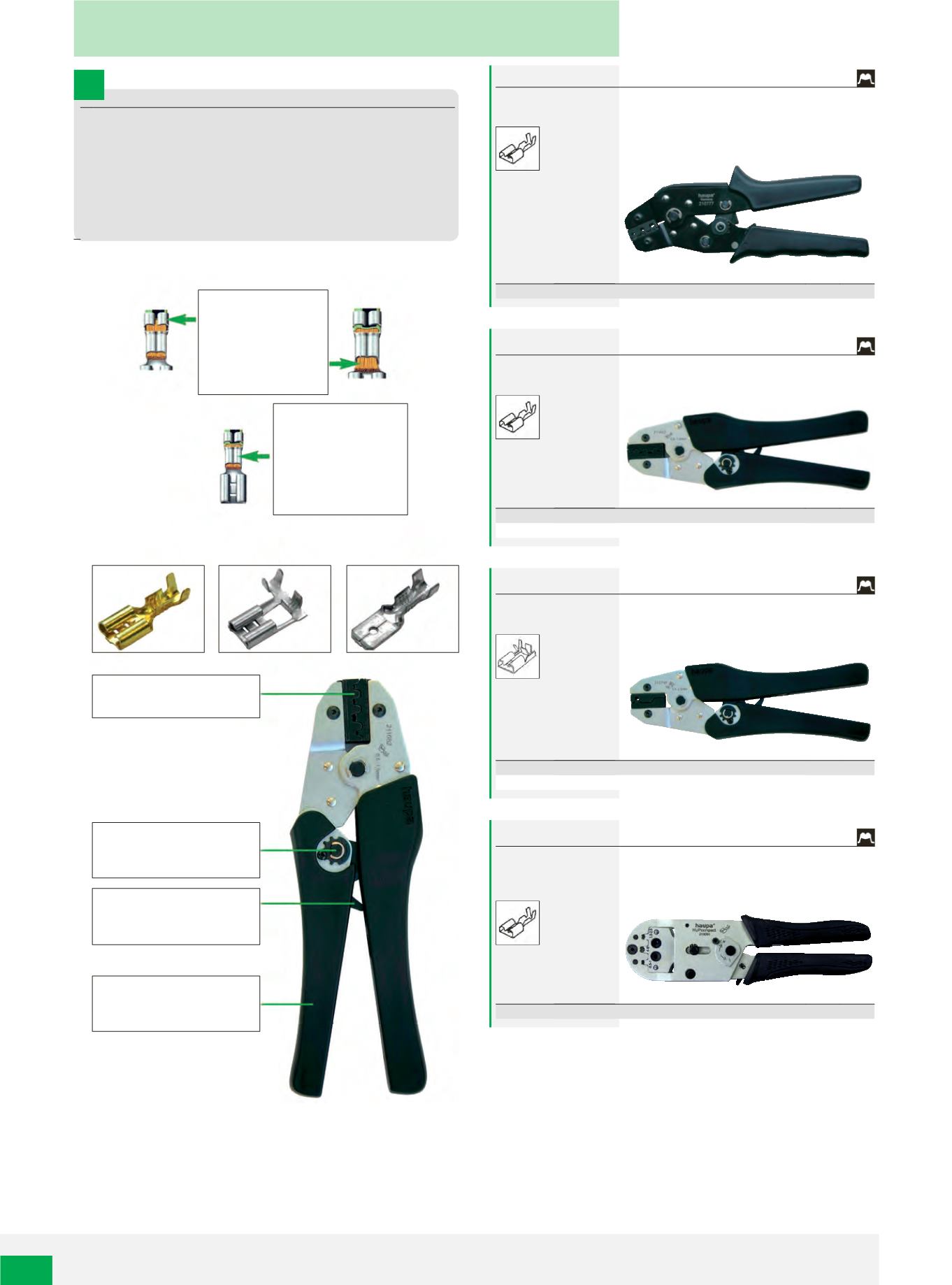

Crimping pliers for uninsulated open brass cable lugs
INFO
Crimping pliers for uninsulated open brass cable lugs
We distinguish between wire crimps and insulation crimps. The end
of the wire should be flush with the wire crimp or extend beyond it no
further than 1 mm, so that the plug function is not affected.
The insulation end must not project into the wire crimp, however it must
also not lie just half beneath the insulation crimp. Only in this way can
a standard-compliant crimp be ensured.
In a good crimp the wire must be deformed. In this case one talks of a
“gastight crimp”.
Crimping pliers
for open brass cable lugs, short construction, 20% angled handy form, with
locking device, with adjustable crimp pressure,
roll pressing
Art. no.
kg PU
210777
0,366 1
mm²
0,5 - 1,5
Crimping pliers
for open brass cable lugs, with locking device, with adjustable crimp pressure,
chrome plated,
roll pressing
Art. no.
kg PU
211682
0,568 1
210762
0,575 1
mm²
0,5 - 2,5
0,5 - 6
Crimping pliers
for open brass cable lugs, with locking device, with adjustable crimp pressure,
chrome plated,
roll pressing
Art. no.
kg PU
210785
0,537 1
210786
0,535 1
mm²
0,05 - 1
1,5 - 2,5
HUPcompact „HC04"
for open brass tab connectors, 100% parallel crimp, precision crimp, handle
force: 5 kN, small compact construction, life span: 50,000 crimp cycles, with
locator,
roll pressing
Art. no.
kg PU
213094
0,490 1
Ø
0,5 - 6
Wrong:
The end of the insulation is
in the insulation crimp.
Wrong:
The stripped wire projects
into the contact zone.
Correct:
The end of the insulation and
the stripped wire are crimped
accurately.
To facilitate accurate
crimping a positioning aid is
available for crimping pliers.
Socket sleeves (female)
with cable stop
Socket sleeves (female)
with cable stop and side
cable connection
Flat terminals
bare brass
bare brass
tin-plated brass
Precision-ground crimp profi les
=> clean crimp
Adjustable crimping pressure
=> Wear compensation
via adjusting screw
Forced block, unblockable
=> guaranteed DIN-compliant
crimped connection
Ergonomically formed plastic
handles
=> low fatigue work
