52
PU Packing unit PE Price unit
The legend for abbreviations for all table headers can be found sorted alphabetically on page 408.
Pressrichtung
1. Pressung
Pressrichtung
Pressrichtung
Kerb-/Rohrkabelschuhe
Presskabelschuhe DIN
Pressverbinder DIN
Kupfer verzinnt
Kupfer verzinnt
Kupfer verzinnt
blank
blank
mit Sichtloch
INFO

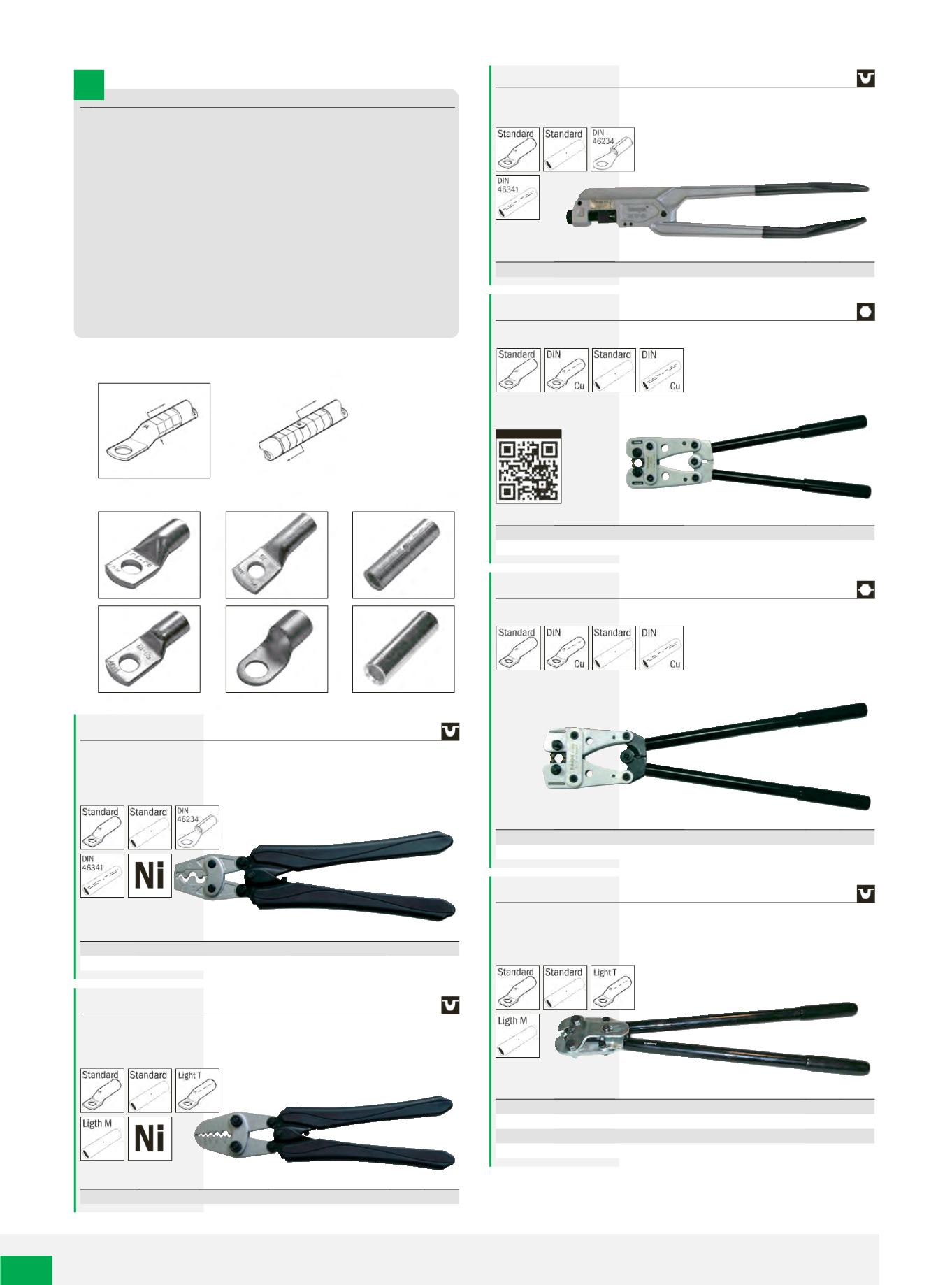

Crimping pliers for uninsulated tubular cable lugs
1. Choosing the connector
To achieve a standard-compliant connection it is necessary to choose
the correct connector for the application and the right cable cross
section.
2. Stripping
Before notching, the cable must be stripped according to the insertion
length (+10% due to change in length of the crimping sleeve.
3. Cleaning
The ends of the wire must be cleaned thoroughly to remove all traces of
dirt and oxidation before being assembled.
4. Assembly
Insert the cable into the cable lug or connector to its full insertion
length. Crimp the cable lug or connector with the correct tool, taking
account of the crimping direction (see figure).
Crimping pliers
for non insulated crimp cable lugs, lever translated version for better
transmission of force, with
mandrel pressing
, for standard tubular cable
lugs and connectors. Particularly well suited to nickel tubular cable lugs and
connectors
Art. no.
kg PU
210772
0,478 1
210774
0,503 1
mm²
1-2,5-4 > 6-10 1 - 10
1 > 2-6-10-16 1 - 16
Crimping pliers
Lever translated version for better transmission of force, with
mandrel
pressing
, for standard tubular cable lugs and connectors. Particularly well
suited to nickel tubular cable lugs and connectors
Art. no.
kg PU
210830
0,574 1
mm²
0,75 - 16 standard
Crimping pliers
with punch and adjustable screw for different cross-sections, for standard tube
terminals and connectors,
mandrel shape pressing
Art. no.
kg PU
210791
3,040 1
mm²
10 - 120
Crimping pliers
with built-in rotable profile disk,
hexagon pressing
Art. no.
kg PU
210805
1,351 1
210805 K
1,352 1
mm²
6 - 50 standard
6 - 50
DIN
Crimping pliers
with built-in rotable profile disk,
hexagon pressing
Art. no.
kg PU
210850
3,970 1
210853
4,016 1
mm²
10 - 120 standard
10 - 120
DIN
Crimping pliers
for uninsulated “Standard” tube terminals/connectors and tube terminals
for fine-wire cables, with integrated rotatable profile disc,
mandrel shape
pressing
, with telescopic grips
Art. no.
kg PU
210834
2,588 1
210836
5,280 1
210838
5,200 1
210840
5,200 1
mm²
6 - 50
50 - 120
120 - 240
185 - 400
Crimping direction
Crimping direction
Tube cable lugs
DIN cabl lugs
Butt connectors, DIN
Tin-plat d copper
Tin-plat d copper
bare
bare
wi h inspe tion
Video 210805
