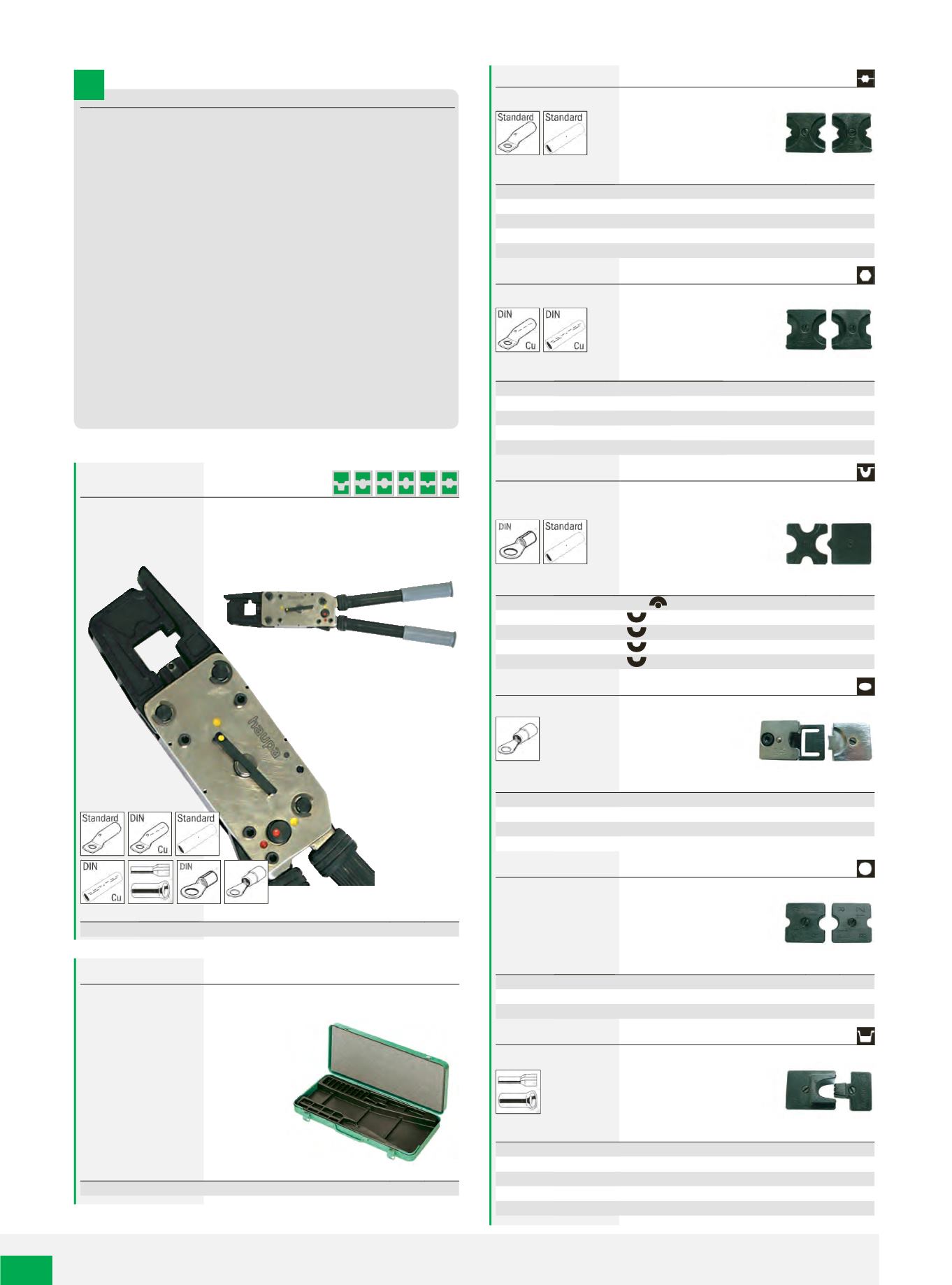

Mechanical crimping pliers for tubular cable lugs
These mechanical manual crimping pliers are modern, high performance
tools. They can be used anywhere in the wide range of solder-free connection
technology thanks to a comprehensive range of crimping dies.
Crimping stroke and pressure (to approx. 5.5 t) are created by several hand
lever movements. The manual force required is low due to the high efficiency
of the system. The press and the connecting parts can only be separated
from one another when the crimp is complete. This drive system ensures that
the required crimping depth is always achieved. The hinged cover guarantees
comfortable handling of the press, even in awkward-to-reach positions such as
in control cabinets.
By turning the fast forward feed lever to place the crimp inset on the cable lug,
the number of manual lever movements is considerably reduced and rational
work is guaranteed.
Only then does the actual crimping process begin with the hand lever. When
the required crimping depth has been reached the press releases pressure
spontaneously and the hinged cover can be opened to remove the connector.
The crimping process can be interrupted if an error has been made in the choice
of the inset, cable lug or cable. To do this swing the hand lever completely out,
depress the ratchet and turn the forward feed lever backwards.
Crimping pliers
precise tool with ratchet and built-in-force-locking device, crimping pressure 50
kN, interchangeable dies, easy to remove from the crimped lug by opening the
crimping head
Product-specific features
•
can be used anywhere
•
minimum strength required
•
broad application spectrum
•
precision drive
•
rational use
Art. no.
kg PU
215100
2,100 1
mm²
6 - 120
Metal box
for storing of crimping pliers and dies
Art. no.
kg PU
215102
1,700 1
Crimping dies
Art. no.
kg PU
215104
0,130 1
215106
0,132 1
215108
0,126 1
215110
0,138 1
215112
0,136 1
mm²
10 - 70
16 - 35
25 - 50
95
120
Crimping dies
for crimping terminals DIN,
hexagonal pressing
Art. no.
kg PU
215142
0,128 1
215144
0,130 1
215146
0,130 1
215148
0,130 1
215150
0,130 1
Cu
Al
Id.
10 - 50 6 - 16
16 - 35
-25 8 - 12
25 - 50 16 - 35 10 - 14
95
70
18
120
20
Crimping dies
for uninsulated crimping terminals, for up to four diameter,
mandrel shape
pressing
, DIN 46234 + DIN 46341
Art. no.
kg PU
215114
0,080 1
215116
0,060 1
215118
0,055 1
215120
0,150 1
215122
0,150 1
mm²
6 - 70
10 - 35
16 - 50
6 - 50
70
Crimping dies
for insulated crimping terminals,
oval pressing
Art. no.
kg PU
215124
0,147 1
215126
0,152 1
215128
0,153 1
215130
0,154 1
mm²
10
16
25
35
Crimping dies
for rounding of square copper and aluminium
Art. no.
kg PU
215152
0,155 1
215154
0,150 1
215156
0,150 1
mm²
25 - 35
35 - 70
95
Crimping dies
for end sleeves,
trapezoid pressing
Art. no.
kg PU
215164
0,059 1
215166
0,059 1
215168
0,059 1
215170
0,059 1
215172
0,059 1
mm²
25
35
50
70
95
for standard cable lugs and compacted cables,
WM pressing
