Germany:
HAUPA
, Koenigstr. 165-169, 42853 Remscheid, Phone: +49 (0)2191 8418-0, Fax: +49 (0)2191 8418-840,
...convincing solutions
59
Video 215770/M
Video 215765

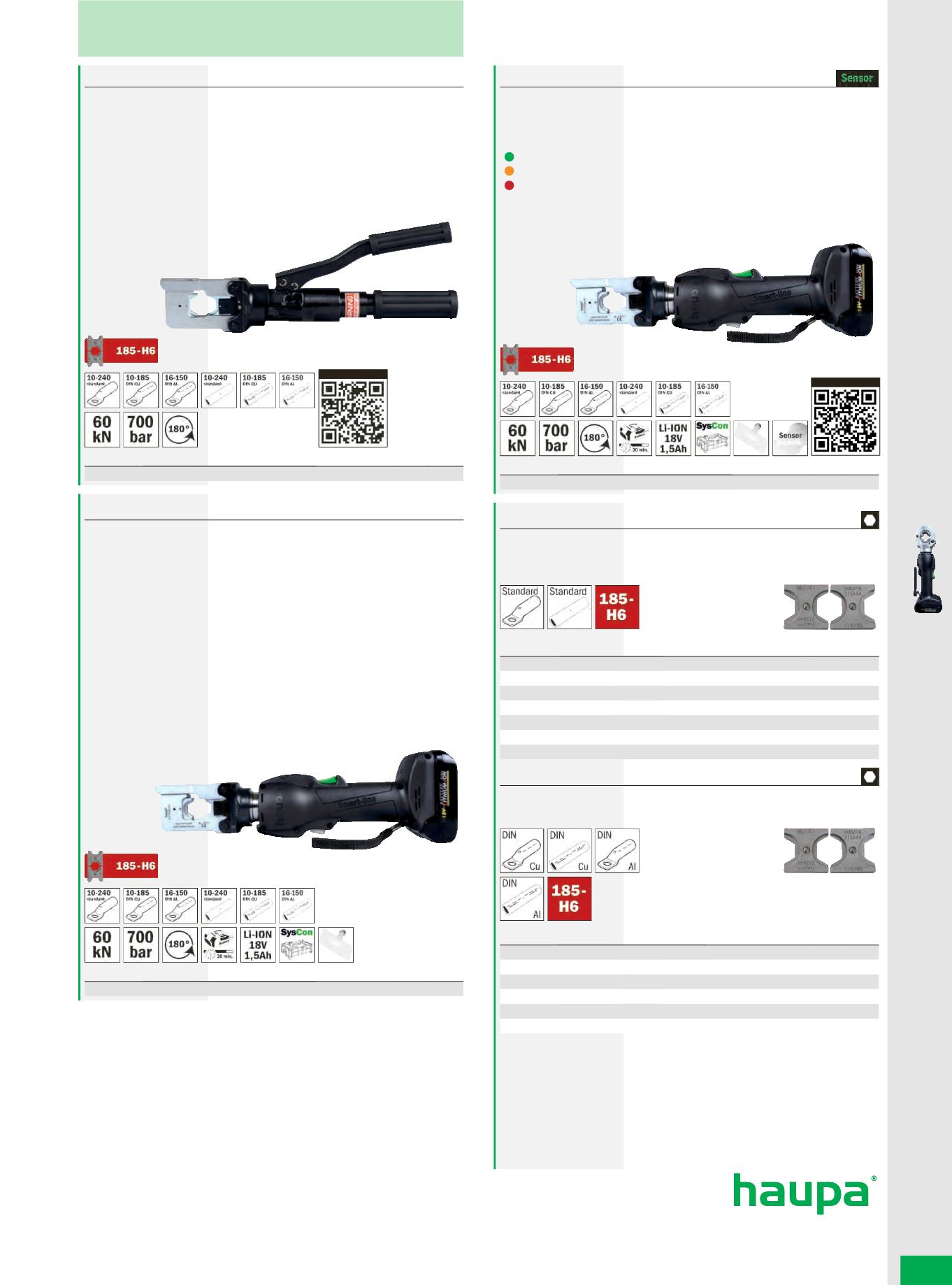

Hydraulic crimping tools
Hydraulic hand pliers „HHs-6“
Crimping head can be rotated by 180°, manual return after completed
pressing, light and compact construction in black plastic case, without dies.
•
Pressing force in kN: 60
•
Working pressure in bar: 700
•
Head can be opened
•
Pressing width: slim
•
Cable lugs: standard Cu 10-240
•
DIN Cu 10-185
•
DIN Al 16-150
•
Connectors: standard Cu 10-240
•
DIN Cu 10-185
•
DIN Al 16-150
Art. no.
kg PU
215765
7,900 1
mm²
dimension
10 - 240 370 x 140 x 75 mm
Battery powered crimping tool „SHs-6“
for interchangeable interchangeable dies, Crimping head can be rotated by
180°, manual return flow after perfect pressure.
Extent of supply:
1 crimping tool, 1 charger, 1 battery, 1 strap, in light plastic
box, without crimping headstock.
•
Pressing force in kN: 60 kN
•
Working pressure in bar: 700
•
Head can be opened
•
Pressing width: slim
•
Cable lugs: standard Cu 10-240
•
DIN Cu 10-185
•
DIN Al 16-150
•
Connectors: standard Cu 10-240
•
DIN Cu 10-185
•
DIN Al 16-150
•
Pressing time, battery-operated in seconds: 5
•
Battery charging time in minutes: 30
•
Battery type: Li-Ion, 18 V, 1,5 Ah
•
Weight in kg without batterie: 2,1
•
Weight of set in kg with batterie: 7,9
Art. no.
kg PU
215770
7,900 1
mm²
dimension
10 - 185
398 x 75 mm
Battery powered crimping tool „SHs-6M“
Technical data and scope of delivery, see 215770.
With the different colours of the sensor LED, it shows whether the pressing has
been completed successfully or which errors have occurred:
Light is green: Pressing completed as standard, motor stopped.
Light is orange: Battery voltage not sufficient
Light is red: Pressing interrupted before completed
The device also has 1 white LED designed to illuminate the working area.
Art. no.
kg PU
215770/M
7,900 1
mm²
dimension
10 - 185
398 x 75 mm
Crimping dies standard
standard copper tube terminals and connectors,
hexagonal pressing
Art. no.
kg PU
215641
0,157 1
215642
0,155 1
215643
0,150 1
215644
0,145 1
215645
0,159 1
215646
0,156 1
215648
0,156 1
mm²
PW
10/16
5
25/35
5
50/70
5
95/120
5
150
5
185
5
240
5
Crimping dies DIN
DIN Cu/Al tube terminals and connectors,
hexagonal pressing
Art. no.
kg PU
215650
0,155 1
215651
0,151 1
215652
0,149 1
215653
0,129 1
215654
0,145 1
215655
0,147 1
mm²
PW Id.
10/16
5 6/8
25/35
5 10/12
50/70
5 14/16
95/120
5 18/20
150
5 22
185
5 25
