Germany:
HAUPA
, Koenigstr. 165-169, 42853 Remscheid, Phone: +49 (0)2191 8418-0, Fax: +49 (0)2191 8418-840,
...convincing solutions
69
Video 216663/M

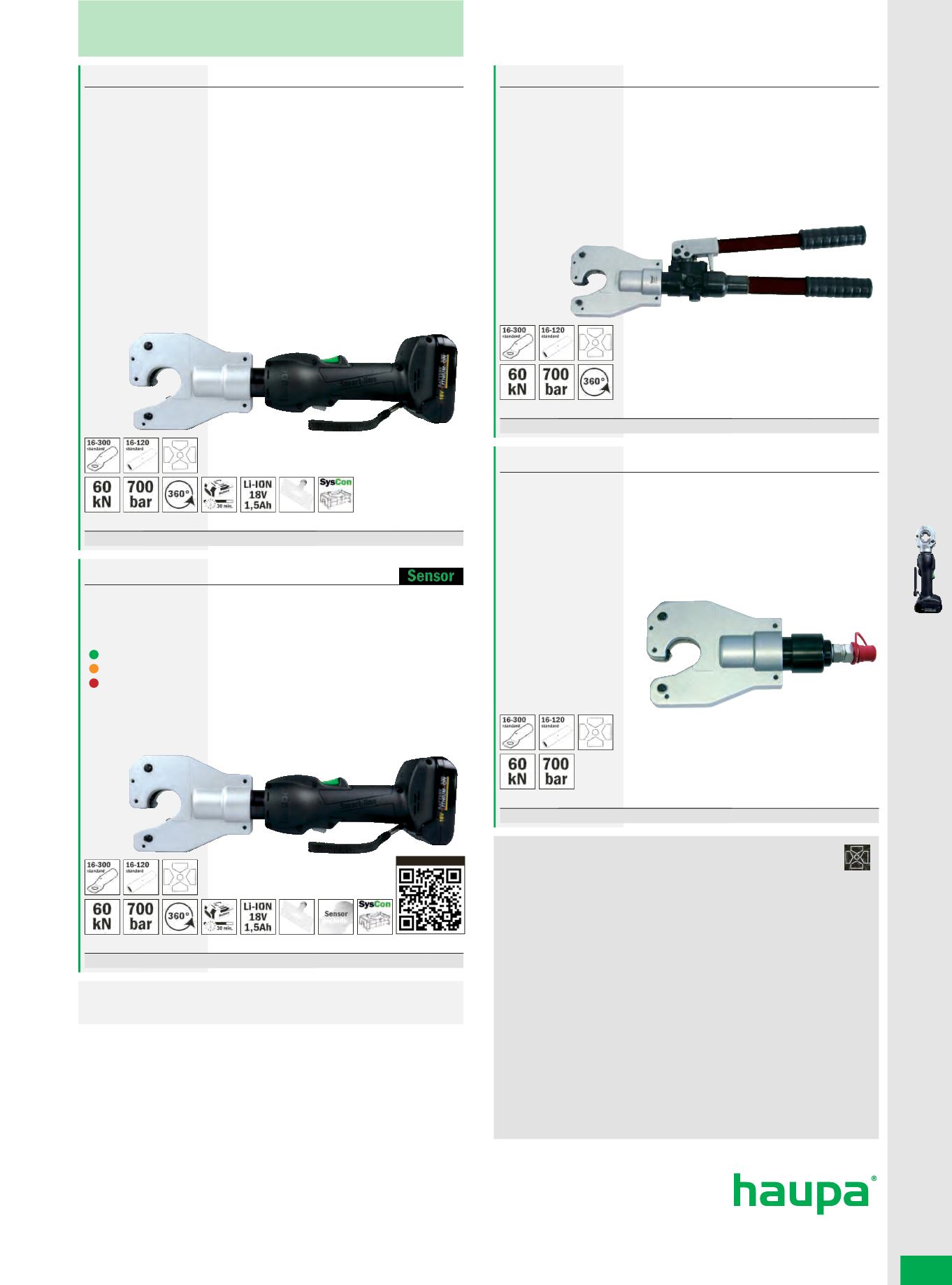

Hydraulic crimping tools
Battery powered crimping tool „SD300-6“
Crimping head can be rotated by 360°, manual return flow after perfect
pressure, mandrel shape pressing.
Extent of supply:
1 crimping tool, 1 charger, 1 battery, 1 strap, in SysCon
stacking box „SysCon M“ 220372.
•
Pressing force in kN: 60
•
Working pressure in bar: 700
•
Pressing width: thorn
•
Cable lugs: standard Cu 16-300
•
Connectors: standard Cu 16-120
•
Pressing time, battery-operated in sec.: 6-12
•
Battery charging time in min.: 30
•
Battery type: Li-Ion, 18 V, 1,5 Ah
•
Weight in kg: 2,4
•
Weight of set in kg: 7,9
Art. no.
kg PU
216663
7,900 1
mm²
dimension
16 - 300
443 x 75 mm
Battery powered crimping tool „SD300-6M“
Technical data and scope of delivery, see 216663.
With the different colours of the sensor LED, it shows whether the pressing has
been completed successfully or which errors have occurred:
Light is green: Pressing completed as standard, motor stopped.
Light is orange: Battery voltage not sufficient
Light is red: Pressing interrupted before completed
The device also has 1 white LED designed to illuminate the working area.
Art. no.
kg PU
216663/M
7,900 1
mm²
dimension
16 - 300
443 x 75 mm
Test pin and gauge, see page 70
Hydraulic hand pliers „HD300-6“
Crimping head can be rotated by 360°, manual return after completed
pressing, light and compact construction in black plastic case.
•
Pressing force in kN: 60
•
Working pressure in bar: 700
•
Cable lugs: standard Cu 16-300
•
Connectors: standard Cu 16-120
•
Dual-piston pump
•
Weight in kg: 5,0
•
Weight of set in kg: 6,5
Art. no.
kg PU
216660
6,500 1
mm²
dimension
16 - 300 570 x 160 x 60 mm
Crimping headstock „KD300-6“
in plastic case.
•
Pressing force in kN: 60
•
Working pressure in bar: 700
•
Cable lugs: standard Cu 16-300
•
Connectors: standard Cu 16-120
•
Quick coupling
•
Weight in kg: 2,8
•
Weight of set in kg: 3,8
Art. no.
kg PU
216665
3,800 1
mm²
dimension
16 - 300 375 x 343 x 75 mm
Hydraulic 4-thorn pressing tool for pressing ordinary conduit
terminals and connectors, wide pressing
Reliable, robust, hydraulic pressing tool. The solution for your tough
jobs!
•
Tool adjusts automatically to the conductor cross-section being
pressed
•
Guaranteed DIN suitable connection
•
No need to purchase further pressing inserts
•
No need to change insert for each conductor cross-section
•
Ideally suited for pressing extremely flexiable finest-wired
conductors of the cable classes 5 & 6
•
Ideally suited to pressing of compacted conductors (no sleeve,
no special cable shoe)
•
Test thorn and guide for fast, simple, optical pressing pressure
control
Note:
DIN pressing cable shoes must be processed in accordance with
