Video 216601

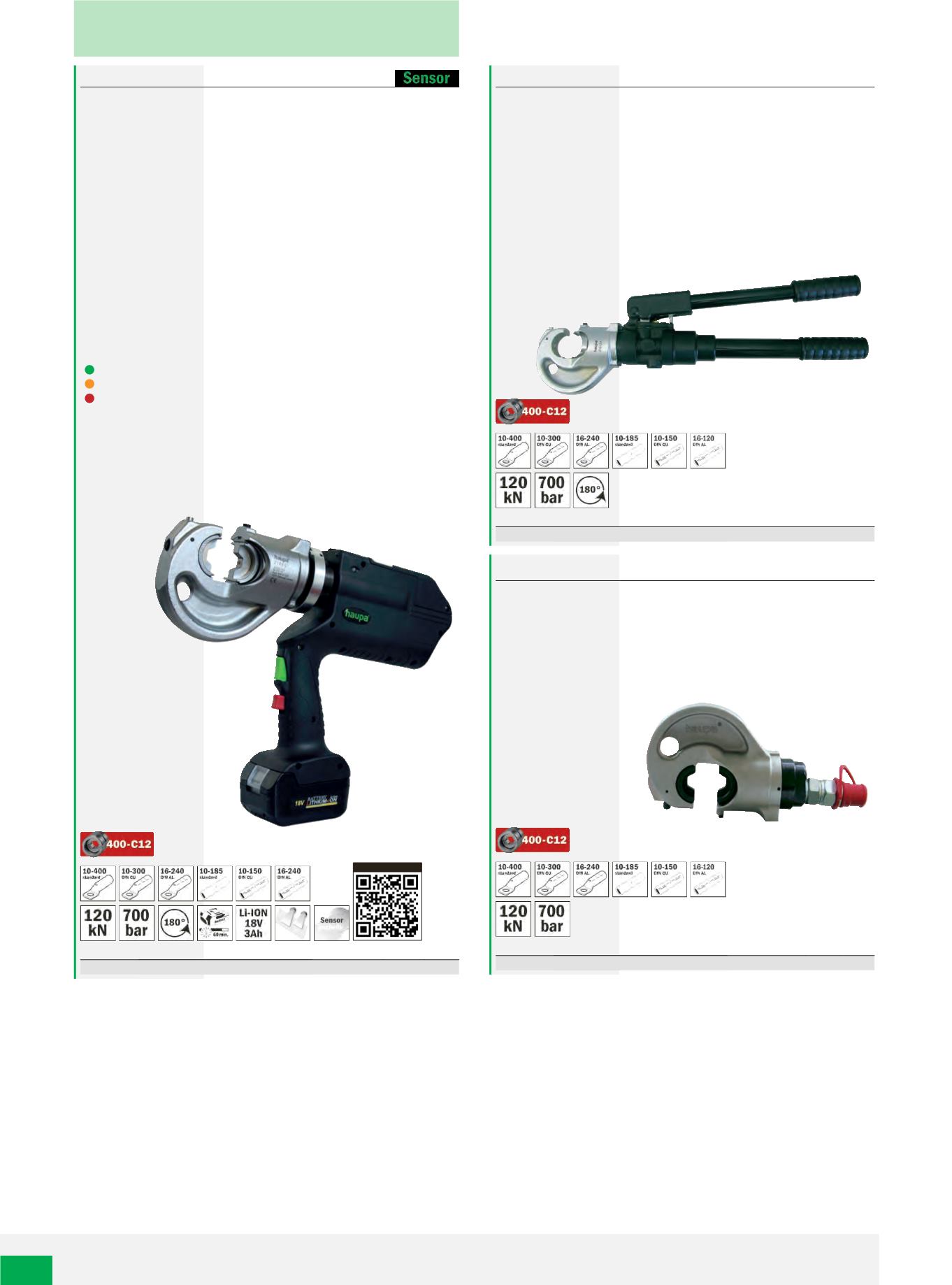

Hydraulic crimping tools
Battery powered crimping tool „AC25-12“
2 step hydraulic for replaceable pressing dies, crimping head can be rotated
by 180°, can be opened, with quick opening, manual return after completed
pressing, LED to check battery status.
Included in delivery:
1 crimping tool, 1 charger, 1 battery, 1 carry strap, in
plastic case, without dies.
•
Pressing force in kN: 120
•
Working pressure in bar: 700
•
Opening/ Hub: 25 mm
•
Pressing width: wide
•
Cable lugs: standard Cu 10-400
•
DIN Cu 10-300
•
DIN Al 16-240
•
Connectors: standard Cu 10-185
•
DIN Cu 10-150
•
DIN Al 16-120
•
Pressing time, battery-operated in sec.: 6 - 12
•
Battery charging time in min.: 60
•
Battery type: Li-Ion, 18 V, 3 Ah
•
Dual-piston pump
•
Weight in kg: 7
•
Weight of set in kg: 12
With the different colours of the sensor LED, it shows whether the pressing has
been completed successfully or which errors have occurred:
Light is green: Pressing completed as standard, motor stopped.
Light is orange: Battery voltage not sufficient
Light is red: Pressing interrupted before completed
The device also has 2 white LED designed to illuminate the working area.
Art. no.
kg PU
216601
12 1
mm²
dimension
10 - 400 375 x 375 x 75 mm
Hydraulic hand pliers „HC25-12“
Crimping head can be rotated by 180°, manual return after completed
pressing, light and compact construction in black plastic case, without dies.
•
Pressing force in kN: 120
•
Working pressure in bar: 700
•
Opening/ Hub: 25 mm
•
Pressing width: wide
•
Cable lugs: standard Cu 10-400
•
DIN Cu 10-300
•
DIN Al 16-240
•
Connectors: standard Cu 10-185
•
DIN Cu 10-150
•
DIN Al 16-120
•
Dual-piston pump
•
Weight in kg: 6,2
•
Weight of set in kg: 7,7
Art. no.
kg PU
216124
7,700 1
mm²
dimension
10 - 400 585 x 180 x 72 mm
Hydraulic crimping headstock „KC25-12“
in plastic case, without dies.
•
Pressing force in kN: 120
•
Working pressure in bar: 700
•
Cable lugs: standard Cu 10-400
•
DIN Cu 10-300
•
DIN Al 16-240
•
Connectors: standard Cu 10-185
•
DIN Cu 10-150
•
DIN Al 16-120
•
Opening/ Hub: 25 mm
•
Pressing width: wide
•
Quick coupling
•
Weight in kg: 3,6
•
Weight of set in kg: 4,6
Art. no.
kg PU
216004
4,600 1
mm²
dimension
10 - 400 245 x 130 x 72 mm
