Video 215881/M

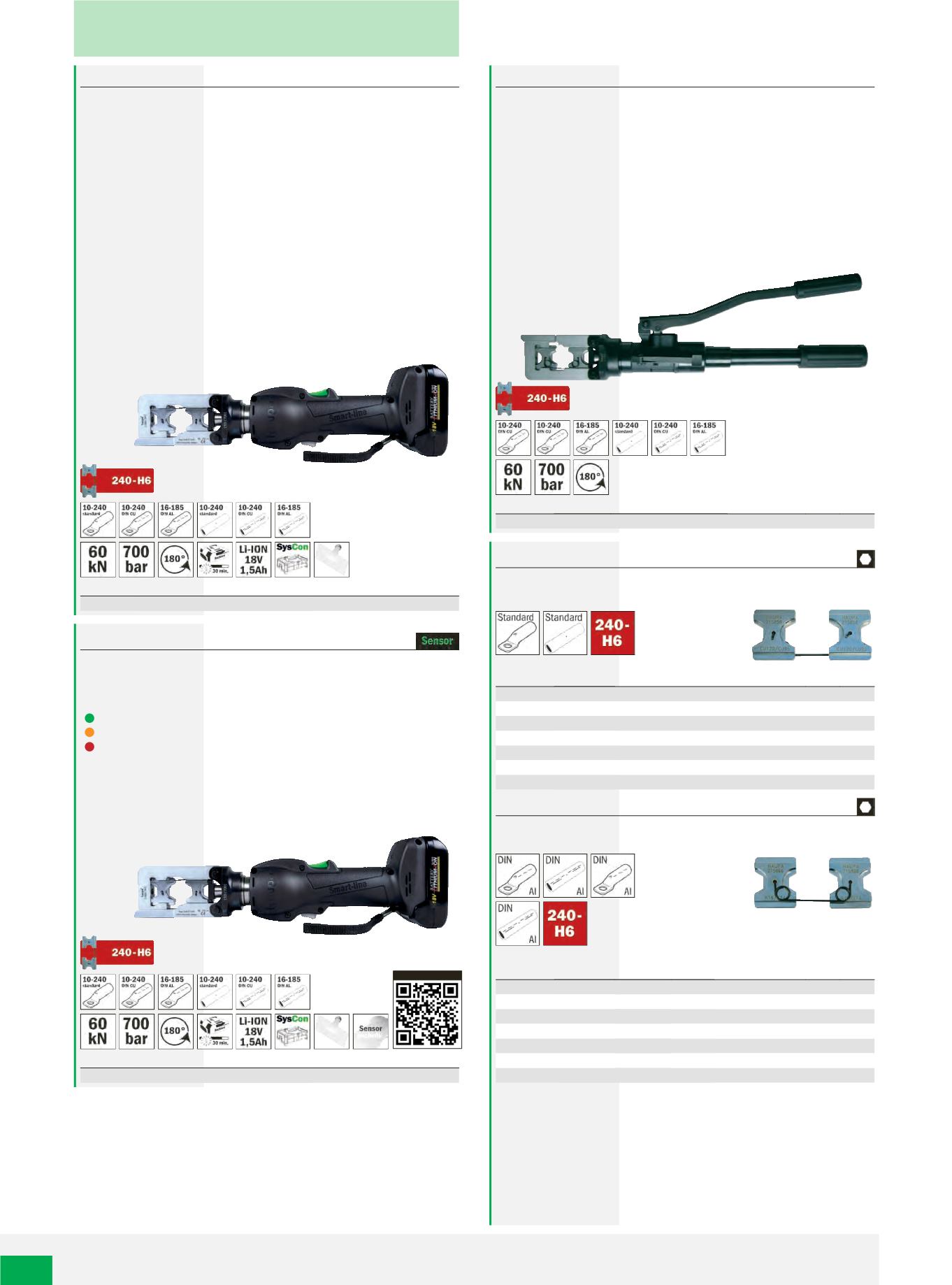

Hydraulic crimping tools
Battery powered crimping tool „SH-6“
Hydraulic for interchangeable dies, crimping head can be rotated by 180°, with
fast opening, manual return flow after perfect pressure.
Extent of supply:
1 crimping tool, 1 charger, 1 battery, 1 strap, in SysCon
stacking box without dies.
•
Pressing force in kN: 60 kN
•
Working pressure in bar: 700
•
Head can be opened yes
•
Opening/ Hub: 17 mm
•
Pressing width: slim
•
Cable lugs: standard Cu 10-240
•
DIN Cu 10-240
•
DIN Al 16-185
•
Connectors: Cu 10-240
•
DIN Cu 10-240
•
DIN Al 16-185
•
Pressing time, battery-operated in seconds: ca. 5
•
Battery charging time in minutes: 30
•
Battery type: Li-Ion, 18 V, 1,5 Ah
•
Weight in kg without batterie: 2,4
•
Weight of set in kg with batterie: 7,9
Art. no.
kg PU
215881
7,900 1
mm²
dimension
10 - 240
415 x 75 mm
Battery powered crimping tool „SH-6M“
Technical data and scope of delivery, see 215881.
With the different colours of the sensor LED, it shows whether the pressing has
been completed successfully or which errors have occurred:
Light is green: Pressing completed as standard, motor stopped.
Light is orange: Battery voltage not sufficient
Light is red: Pressing interrupted before completed
The device also has 1 white LED designed to illuminate the working area.
Art. no.
kg PU
215881/M
7,900 1
mm²
dimension
10 - 240
415 x 75 mm
Hydraulic hand pliers „HH-6“
Crimping head can be rotated by 180°, manual return after completed
pressing, light and compact construction, in SysCon stacking box, without dies.
•
Pressing force in kN: 60
•
Working pressure in bar: 700
•
Opening / Hub: 17 mm
•
Head can be opened
•
Pressing width: slim
•
Cable lugs: standard Cu 10-240
•
DIN Cu 10-240
•
DIN Al 16-185
•
Connectors: standard Cu 10-240
•
DIN Cu 10-240
•
DIN Al 16-185
•
Dual-piston pump
•
Weight in kg: 3,0
•
Weight of set in kg: 4,5
Art. no.
kg PU
215800
4,500 1
mm²
dimension
10 - 240 400 x 150 x 65 mm
Crimping dies
standard copper tube terminals and connectors,
hexagonal pressing
Art. no.
kg PU
215852
0,157 1
215854
0,155 1
215856
0,150 1
215858
0,145 1
215859
0,159 1
215860
0,156 1
215861
0,156 1
mm²
10 - 16
25 - 35
50 - 70
95 - 120
150
185
240
Crimping dies DIN Cu + Al
DIN Cu/Al tube terminals and connectors,
hexagonal pressing
Art. no.
kg PU
215862
0,155 1
215864
0,151 1
215866
0,149 1
215868
0,129 1
215869
0,145 1
215870
0,147 1
215872
0,114 1
mm²
Al
Id.
10 - 16
-
6-8
25 - 35 16 - 25 10 - 12
50 - 70 35 - 50 14 - 16
95 - 120
70 18 - 20
150 95 - 120 22
185
150 25
240
185 28
