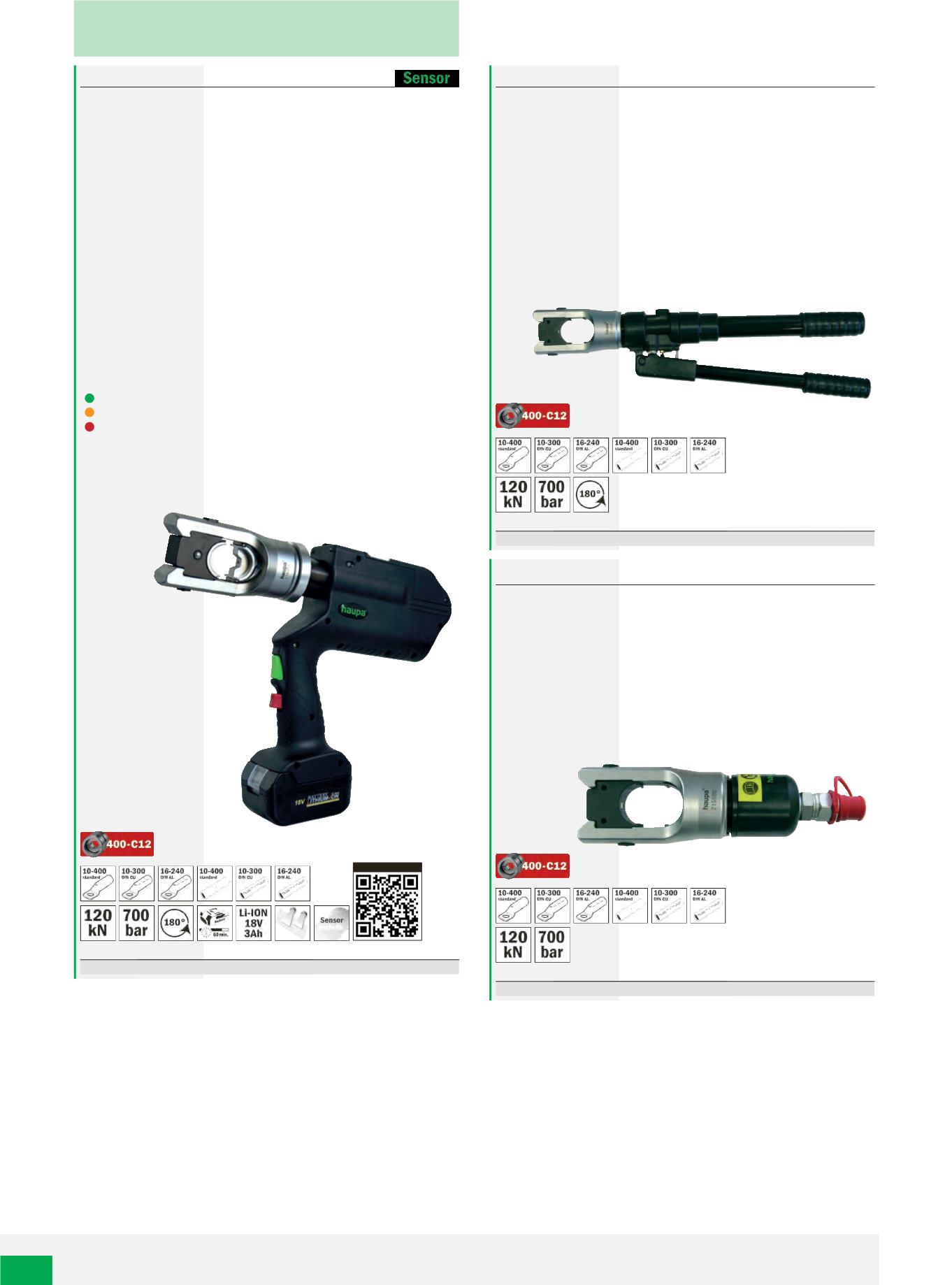

Hydraulic crimping tools
Battery powered crimping tool „AH-12“
2 step hydraulic for replaceable pressing dies, crimping head can be rotated
by 180°, can be opened, with quick opening, manual return after completed
pressing, LED to check battery status.
Pressing tool for deep indent pressing.
Included in delivery:
1 crimping tool, 1 charger, 1 battery, 1 carry strap, in
plastic case, without dies.
•
Pressing force in kN: 120
•
Working pressure in bar: 700
•
Head can be opened
•
Opening/ Hub: 20 mm
•
Pressing width: wide
•
Cable lugs: standard Cu 10-400
•
DIN Cu 10-300
•
DIN Al 16-240
•
Connectors: standard Cu 10-400
•
DIN Cu 10-300
•
DIN Al 16-240
•
Pressing time, battery-operated in sec.: 6 - 13
•
Battery charging time in minutes: 60
•
Battery type: Li-Ion, 18 V, 3 Ah
•
Dual-piston pump
•
Weight in kg: 7
•
Weight of set in kg: 12
With the different colours of the sensor LED, it shows whether the pressing has
been completed successfully or which errors have occurred:
Light is green: Pressing completed as standard, motor stopped.
Light is orange: Battery voltage not sufficient
Light is red: Pressing interrupted before completed
The device also has 2 white LED designed to illuminate the working area.
Art. no.
kg PU
216503
12,000 1
mm²
dimension
10 - 400 405 x 353 x 75 mm
Hydraulic hand pliers „HH-12“
Crimping head can be rotated by 180°, manual return flow after perfect
pressure, in black metal suitcase, without dies.
•
Pressing force in kN: 120
•
Working pressure in bar: 700
•
Head can be opened
•
Opening/ Hub: 20 mm
•
Pressing width: wide
•
Cable lugs: standard Cu 10-400
•
DIN Cu 10-300
•
DIN Al 16-240
•
Connectors: standard Cu 10-400
•
DIN Cu 10-300
•
DIN Al 16-240
•
Dual-piston pump
•
Weight in kg: 4,0
•
Weight set in kg: 5,0
Art. no.
kg PU
215946
7,500 1
mm²
dimension
10 - 400 615 x 180 x 76 mm
Crimping headstock „KH-12“
in plastic case, without dies.
•
Pressing force in kN: 120
•
Working pressure in bar: 700
•
Head can be opened
•
Opening/ Hub: 20 mm
•
Pressing width: wide
•
Cable lugs: standard Cu 10-400
•
DIN Cu 10-300
•
DIN Al 16-240
•
Connectors: standard Cu 10-400
•
DIN Cu 10-300
•
DIN Al 16-240
•
Quick coupling
•
Weight in kg: 4
•
Weight of set in kg: 5
Art. no.
kg PU
215980
5,000 1
mm²
dimension
10 - 400 275 x 90 x 76 mm
