Germany:
HAUPA
, Koenigstr. 165-169, 42853 Remscheid, Phone: +49 (0)2191 8418-0, Fax: +49 (0)2191 8418-840,
...convincing solutions
51

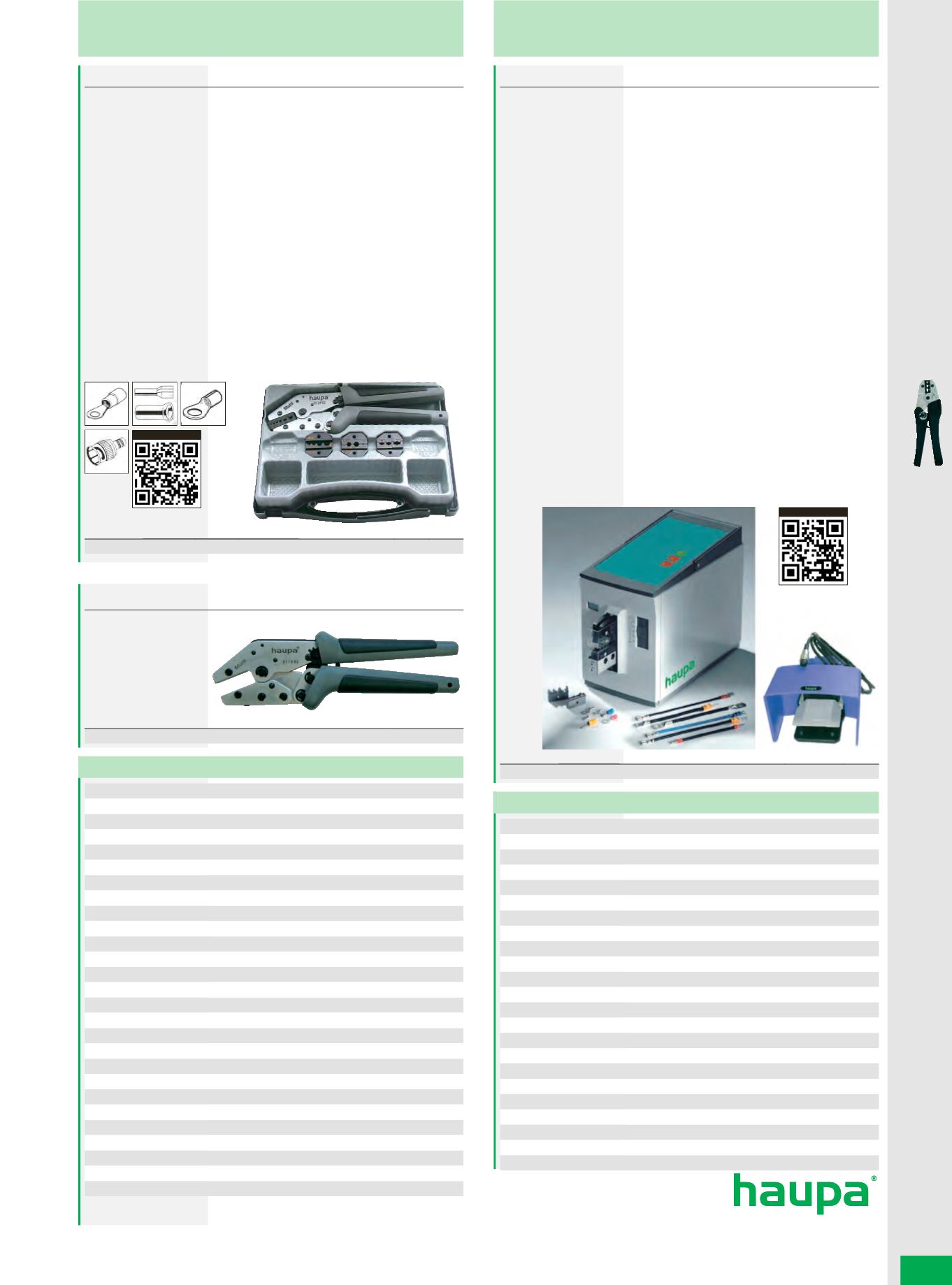

Multi-function pliers
Crimpset MULTI
Innovative crimping tool with rapid change system for the expert - tools for
almost all crimping applications
Contents:
•
crimping plier MULTI
Dies for:
•
(211998) insulated terminals 0.5 - 6 mm²
•
(211963) insulated and uninsulated end sleeves 0.5 - 16 mm²
•
(211999) uninsulated terminals 0.5 - 10 mm²
•
(210000) dies for BNC and TNC coaxial connectors RG 58-59-62-71
Product specifications
•
fast change system
•
easy changing of crimp dies by means of thumb screws
•
easy interlock
•
Nickel plated surface
•
no big strength required
•
with ratchet and built-in safety release, garantees proper electrical
connection
•
adjustable crimp pressure
•
Pliers body from 3 mm, specially compensated, hardened sheet steel
•
ergonomic 2 component handle with soft synthetic material insert
Art. no.
kg PU
211960
1,119 1
width height
depth
260 40
200
Crimping pliers „Multi“
Long version, also suitable for two-handed operation, no dies
Art. no.
kg PU
211962
0,582 1
More possibilities of dies - please, order separately
211963 End sleeves 0,5 - 16 mm²
1
211964 End sleeves 16 - 35 mm²
1
211965 Sockets 0.5 - 2.5 mm²
1
211990 Coax, Thinnet, Mini-UHF, BNC/TNC RG 58, RG 174
1
211991 Coax, BNC/TNC RG 174, RG 179, small coaxial connectors
1
211992 SMA, SMB, Mini-59, Mini-UHF, BNC/TNC RG 6, RG 6 Quad
1
211993 Coax, CATV “F” Typ, BNC/TNC RG 6, RG 6 Quad
1
211994 N-Typ RG 8, RG 11
1
211995 Coax, N-Typ RG 8, RG 11, RG 213, RG 216
1
211996 Fibre Optic, SMA Typ
1
211997 Fibre Optic, SMA, SMB, SFR, ST, SC Typ
1
211968 RJ 45 - 8P8K, Steward Connectors, 22-24 AWG
1
211969 RJ 11, RJ 12 - 6P6K, Steward Connectors, 22-24 AWG
1
211970 Telefon 4P4K, AMP+Steward Connectors, 22-24 AWG
1
211971 RJ 45 - 8P8K, AMP, 22-24 AWG
1
211972 RJ 11, RJ 12 - 6P6C, AMP, 22-24 AWG
1
211973 RJ 11, DEC MMJ - 6P6K, AMP, 22-24 AWG
1
211974 RJ 50 - 10P10K, AMP, 22-24 AWG
1
211980 RJ 45 - 8P8K, short, Steward Connectors, STP 22-24 AWG
1
211981 RJ 45 - 8P8K, long, Hirose, STP 22-24 AWG
1
211982 RJ 45 - 8P8K, short, Hirose, STP 22-24 AWG
1
211985 RJ 45 - 8P8K, AMP, Molex, for Ø 6.0 mm, STP 22-24 AWG
1
211998 insulated terminals 0,5-6,0 mm²
1
211999 uninsulated terminals 0,5-6,0 mm²
1
212000 Coax RG58-59-62-71
1
212007 MC3
1
212008 MC4
1
Elektrik crimper
HAUPA electric crimper
The Electric crimper is an ideal device to securely crimp wires and cable
terminals such as:
•
insulated cable lugs to 6 mm²/10 AWG
•
Tubular cable lugs, solderl. terminals to 10 mm²/8 AWG
•
Flat tab terminals to 6 mm²/10 AWG
•
Wire end sleeves to 50 mm²/1 AWG
The Electric Crimper can be operated in one of two modes:
Mode 1
: controls the entire crimp process by pressing down the pedal switch.
Mode 2
: allows the user to fix the terminal on the cable by actuating the foot
switch once. To finish the crimping process, he presses down the foot switch
once again. Mode 2 is used for more complex terminals.
The onset of compression force can be adjusted for each new terminal to satisfy
crimp integrity. That way, damage to dies and terminals can be minimised.
Simply press a button to select the opening for each die. Since some female
terminals are more difficult to crimp, a moveable locator can be utilised to
ensure proper crimping. Various standard dies are available, as well as dies
designed to customer specifications.
Technical Data Art. No. 217050: Dimensions (w x h x d): 140 x 220 x 320 mm
Weight: 10 kg / Weight of foot pedal: 1.2 kg / Max. press capacity: 10 kN
Pressing time: 1 s / Counter: -digit LCD display /
Mains connection: 30 V/50 Hz (120 V/60 Hz) / Power consumption: 160 VA
Art. no.
kg PU
217050
10,000 1
mm²
6 - 50
Dies for elektro crimper 217050
217052 Rolled contacts 0.14-1/1,5/2.5/4 mm²
1
217056 Rolled contacts 0.1-1.5 mm²
1
217058 Rolled crimp contacts 0.1-1.5 mm²
1
217060 Rolled crimp contacts 0.5-6 mm²
1
217062 End sleeves 0.25-6 mm²
1
217064 Insolated terminals 0.5-6 mm² symetric
1
217066 Insolated terminals 0.5-6 mm² asymetric
1
217068 Tube terminals 0.34-2.5 mm²
1
217070 Tube terminals “super flex” 4-10 mm²
1
217072 Tube terminals “standard” 4-10 mm²
1
217074 Crimping terminals 4-10 mm²
1
217076 Crimping terminals 0.5-10 mm²
1
217078 Protection cover to 21 70 56, 21 70 60
1
217080 Protection cover to 21 70 70, 21 70 72, 21 70 74, 21 70 76
1
217082 Protection cover to 21 70 68
1
217084 Protection cover to 21 70 62
1
217086 Protection cover to 21 70 64, 21 70 66
1
217088 Locator to 21 70 60, socket sleeves 6.3 mm
1
217090 Locator to 21 70 56, 21 70 58, 21 70 60, socket sleeves 4.8 mm 1
217092 Locator to 21 70 56, socket sleeves (female) 2.8 x 5 mm
1
217094 Locator to 21 70 56, socket sleeves (female) 2.8 x 6 mm
1
217096 Locator to 21 70 60, socket (male) 6.3 mm
1
217098 Locator to 21 70 60, socket (male) 6.3 mm HN
1
Video 217050
Video 211960
