Dies set DIN Cu

Art. No. 216036-SET

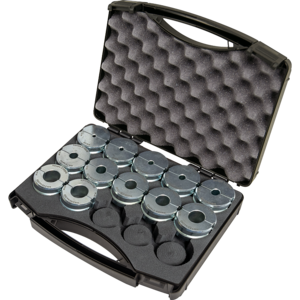

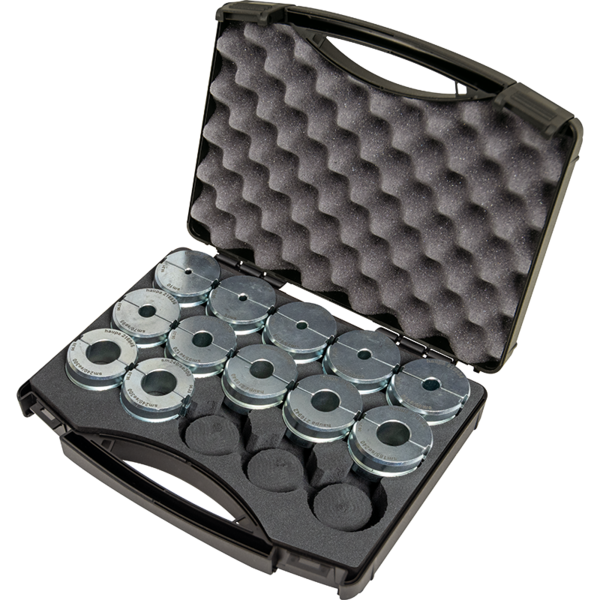

12 DIN crimping dies from 10 to 300 mm² in practical transport case

Set contains:

Art. No. Cu I/no. PW kg
216036 ​ 10 6 12 0,248
216038 ​ 16 8 10 0,248
216040 ​ 25 10 10 0,244
216042 ​ 35 12 13 0,235
216044 ​ 50 14 13 0,231
216046 ​ 70 16 13 0,226
216048 ​ 95 18 14 0,229
216050 ​ 120 20 14 0,225
216052 ​ 150 22 10 0,197
216054 ​ 185 25 10 0,193
216056 ​ 240 28 10 0,185
216060 ​ 300 32 10 0,142

Dies set standard Cu

Art. No. 216008-SET

13 standard crimping dies from 10 - 400 mm² in practical transport case

Set contains:

Art. No. mm² PW kg
216008 ​ 10 10 0,211
216010 ​ 16 10 0,212
216012 ​ 25 10 0,210
216014 ​ 35 10 0,207
216016 ​ 50 13 0,224
216018 ​ 70 13 0,221
216020 ​ 95 14 0,226
216022 ​ 120 14 0,200
216024 ​ 150 14 0,200
216026 ​ 185 11 0,191
216028 ​ 240 11 0,186
216030 ​ 300 11 0,200
216032 ​ 400 5 0,200

WM‑profile dies set standard Cu and for compacted conductors

Art. No. 216008/V-SET

13 standard crimping dies from 10 - 400 mm² in practical transport case

Set contains:

Art. No. mm² PW kg
216008/V ​ 10 5 0,211
216010/V ​ 16 5 0,212
216012/V ​ 25 10 0,210
216014/V ​ 35 5 0,207
216016/V ​ 50 5 0,224
216018/V ​ 70 14 0,221
216020/V ​ 95 14 0,226
216022/V ​ 120 5 0,200
216024/V ​ 150 11 0,200
216026/V ​ 185 5 0,191
216028/V ​ 240 11 0,186
216030/V ​ 300 5 0,200
216032/V ​ 400 5 0,200

Dies set for tubular cable lugs F-Type

Art. No. 216160-SET

12 standard crimping dies from 10 - 300 mm² in practical transport case

Set contains:

Art. No. mm² PW kg
216160 ​ 10 8 0,211
216162 ​ 16 8 0,216
216164 ​ 25 11 0,227
216166 ​ 35 13 0,234
216168 ​ 50 13 0,232
216170 ​ 70 13 0,111
216172 ​ 95 15 0,230
216174 ​ 120 20 0,247
216176 ​ 150 20 0,235
216178 ​ 185 8 0,190
216180 ​ 240 8 0,179
216182 ​ 300 8 0,126

Dies set DIN aluminium

Art. No. 216042/AL-SET

9 DIN crimping dies from 16 - 300 mm² in practical transport case

Set contains:

Art. No. mm² PW I/no. kg
216042/AL ​ 16 - 25 12 12 0,200
216044/AL ​ 35 14 12 0,200
216046/AL ​ 50 16 12 0,200
216048/AL ​ 70 18 12 0,200
216052/AL ​ 95 - 120 22 14 0,200
216054/AL ​ 150 25 14 0,200
216056/AL ​ 185 28 14 0,200
216060/AL ​ 240 32 17 0,200
216062/AL ​ 300 34 17 0,210

Dies set for rounding of sector conductors

Art. No. 216088-SET

8 standard crimping dies from 50 - 300 mm² in practical transport case

Set contains:

Art. No. mm² sm se kg
216088 ​ 50 50 70 0,518
216090 ​ 70 70 95 0,505
216092 ​ 95 95 120 0,489
216094 ​ 120 120 150 0,474
216096 ​ 150 150 185 0,463
216098 ​ 185 185 240 0,441
216100 ​ 240 240 300 0,406
216102 300 300 - 0,372

Dies set for tubular tubular cable lugs F-Type

Art. No. 216878-SET

12 F-Type crimping dies from 10 - 300 mm² in practical transport case

Set contains:

Art. No. mm² PW kg
216878 ​ 10 8 0,146
216880 ​ 16 9 0,153
216882 ​ 25 11 0,162
216884 ​ 35 13 0,171
216886 ​ 50 13 0,167
216888 ​ 70 13 0,160
216890 ​ 95 13 0,164
216892 ​ 120 13 0,174
216894 ​ 150 13 0,162
216896 ​ 185 8 0,124
216898 ​ 240 8 0,119
216899 ​ 300 8 0,089
