Cable cutter

• For cutting Cu/Al cables, fine and multi-wiring
• Chrome vanadium steel, dip-insulated handles
• Insulating function in upper head area
• Cable measuring function thanks to the 180 degree crossover of the legs
• Not for solid conductors
• Data, telephone and control cable, maximum Ø 8 mm
• Cu single wire, maximum 16 mm²
• Cu fine wire, maximum 16 mm²
• Cu multi-wire, maximum 16 mm²
• Al single wire, maximum 16 mm²
• Al multi-wire, maximum Ø 8 mm = 16 mm²

Info Product group

Quantity	Art.No.	EAN	Isolation protection 1000 V	max. wire cross sections	Construction/operation	TL	PU
	201085	4011923481681	No	16 mm²	Mechanic one hand	160 mm	1

Cable cutter

• For cutting Cu/Al cables, fine and multi-wiring
• Chrome vanadium steel, dip-insulated handles
• Insulating function in upper head area
• Cable measuring function thanks to the 180 degree crossover of the legs
• Not for solid conductors
• Data, telephone and control cable, maximum Ø 12 mm
• Cu single wire, maximum 16 mm²
• Cu fine wire, maximum 35 mm²
• Cu multi-wire, maximum 25 mm²
• Al single wire, maximum 25 mm²
• Al multi-wire, maximum Ø 8 mm = 25 mm²

Info Product group

Quantity	Art.No.	EAN	Isolation protection 1000 V	max. wire cross sections	Construction/operation	TL	PU
	201087	4011923491642	No	35 mm²	Mechanic one hand	200 mm	1

Cable cutter

• For cutting Cu/Al cables, fine and multi-wiring
• Chrome vanadium steel, plug-on handles
• Insulating function in upper head area
• Cable measuring function thanks to the 180 degree crossover of the legs
• Not for solid conductors
• Data, telephone and control cable, maximum Ø 8 mm
• Cu single wire, maximum 16 mm²
• Cu fine wire, maximum 16 mm²
• Cu multi-wire, maximum 16 mm²
• Al single wire, maximum 16 mm²
• Al multi-wire, maximum Ø 8 mm = 16 mm²

Info Product group

Quantity	Art.No.	EAN	Isolation protection 1000 V	max. wire cross sections	Construction/operation	TL	PU
	201086	4011923167387	No	16 mm²	Mechanic one hand	180 mm	1

Cable cutters

• For cutting Cu/Al cables, fine and multi-wiring
• Chrome vanadium steel, plug-on handles
• Insulating function in upper head area
• Cable measuring function thanks to the 180 degree crossover of the legs
• Not for solid conductors
• Data, telephone and control cable, maximum Ø 12 mm)
• Cu single wire, maximum 16 mm²
• Cu fine wire, maximum 35 mm²
• Cu multi-wire, maximum 25 mm²
• Al single wire, maximum 25 mm²
• Al multi-wire, maximum Ø 8 mm = 25 mm²

Info Product group

Quantity	Art.No.	EAN	Isolation protection 1000 V	max. wire cross sections	Construction/operation	TL	PU
	201088	4011923167394	No	35 mm²	Mechanic one hand	240 mm	1

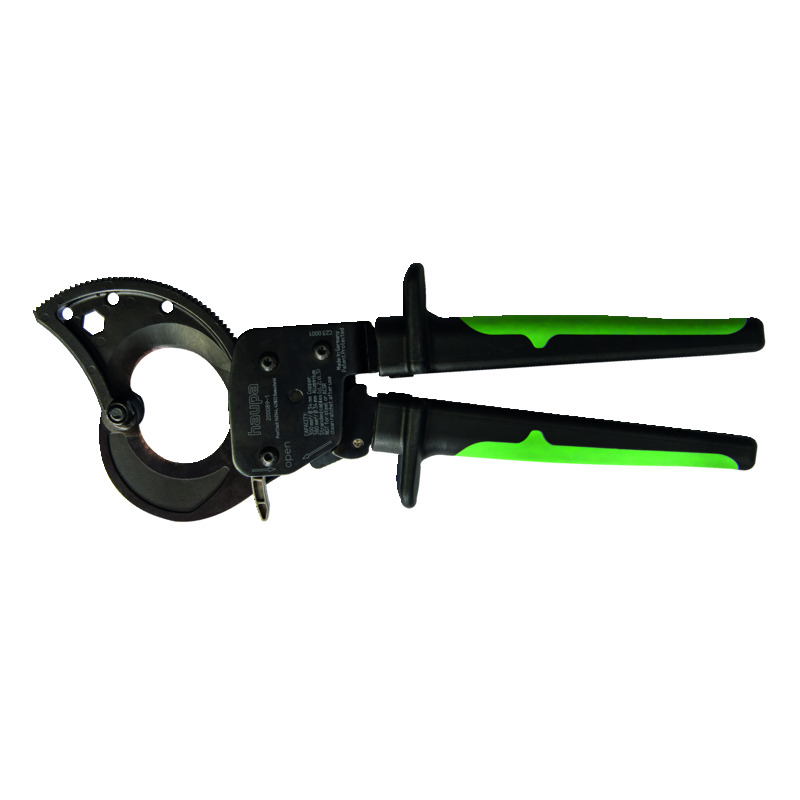

Hand cable cutters Ø 34 mm

• Designed for cutting copper and aluminium cables according to DIN EN 60228

• Equipped with ratchet gear transmission

• Provides optimal force transmission

• Enables one-handed operation through optimal lever ratio and step-by-step cutting up to Ø 34 mm

• Release mechanism available in every cutting position

Material:

• All parts made from high-strength special steel, with hardened or tempered cutting edges and stressed components

• Burnished surfaces

• Ergonomically shaped soft handles

• Colour: black/green

Cutting range:

• Cables and insulated conductors according to DIN EN 60228

• Multi-stranded cables (Class 2; Class 5) copper up to 300 mm² (sector-shaped, fine-stranded, communication/data)

• Multi-stranded cables (Class 2; Class 5) aluminium up to 380 mm² (sector-shaped, fine-stranded, communication/data)

• Not suitable for steel or ACSR cables

• Clean the ratchet mechanism after use

Dimensions:

Length: approx. 260 mm | Width: approx. 100 mm | Depth: approx. 36 mm

Weight: approx. 600 g

Quantity	Art.No.	EAN	Isolation protection 1000 V	Suitable for max. cable diameter	Max. cable cross-section	TL	Execution/actuation	handle design	Weight	PU
	200089-1	4011923627027	No	34 mm	300 mm	260 mm	Ratchet model mechanical	2 components	0,60 kg	1

Cable cutters with spring joint

• For cutting Cu/Al cables, fine and multi-wiring
• Not suitable for steel wire and wire rope
• Chrome vanadium steel
• Self-opening joint spring
• Enormous cutting power with reduced force expenditure
• Not for solid conductors

Info Product group

Quantity	Art.No.	EAN	Isolation protection 1000 V	max. wire cross sections	Construction/operation	TL	PU
	200086	4011923065263	No	25 mm²	Mechanic one hand	170 mm	1

Cable cutter

Info Product group

Quantity	Art.No.	EAN	Isolation protection 1000 V	max. wire cross sections	Construction/operation	TL	PU
	200088	4011923065287	No	70 mm²	Mechanic one hand	230 mm	1

Cable cutter

For cutting Cu/Al cables.
• Data, telephone and control cable, maximum Ø 25 mm
• Cu single wire, maximum 16 mm²
• Cu fine wire, maximum 70 mm²
• Cu multi-wire, maximum 25 mm²

Product group

Quantity	Art.No.	EAN	Isolation protection 1000 V	max. wire cross sections	Construction/operation	TL	PU
	200105	4011923155896	No	70 mm²	Mechanic one hand	215 mm	1

Cable cutter with a snap

• One-hand cable cutter for fine wire cables only
• Low force required
• Laser-cut components
• CNC-ground cutting
• Inductively hardened blades
• Adjustable screw joint
• Cu fine wire cable, maximum Ø 16.9 mm = 70 mm²

Info Product group

Quantity	Art.No.	EAN	Isolation protection 1000 V	max. wire cross sections	Construction/operation	TL	PU
	201002	4011923169473	No	70 mm²	Mechanic one hand	180 mm	1

Cable cutter with a snap

• Laser-cut components made of special carbon steel, oil-hardened
• CNC-ground cutting type, induction hardened for maximum cutting
performance
• Screwed joint connections, re-adjustable for longer durability as well as
• an elegant and ergonomic design for optimal handling
• for telephone cable up to 26.1 mm diameter (120 mm2)
• for fine wired cable up to 18.9 mm diameter (120 mm2)

Product group

Quantity	Art.No.	EAN	Isolation protection 1000 V	max. wire cross sections	Construction/operation	TL	PU
	201000	4011923169466	No	120 mm²	Mechanic one hand	230 mm	1

Cable cutter

• For cutting Cu/Al cables, fine and multi-wiring
• Not suitable for steel wire and wire rope
• Low force required thanks to best blade geometry and translation ratios
• Vanadium electro-steel, forged, oil-hardened
• Aluminium legs
• Hardened blades with precision grinding
• Adjustable screw joint

Info Product group

Quantity	Art.No.	EAN	Isolation protection 1000 V	max. wire cross sections	Construction/operation	TL	PU
	200087	4011923065270	No	150 mm²	Mechanic two hands	500 mm	1

Cable cutters

• For cutting Cu/Al cables, fine and multi-wiring
• Surface-ground, rust-protected blades made from annealed chrome vanadium steel
• Impact-proof coated, hardened handle tubes, sickle-shaped rounded blades
• Highest stability with the lowest own weight

Repl. cutting head 200073/MK
Repl. cutting head 200095/MK
Repl. cutting head 200099/MK

Info Product group

Art.No.	EAN	Isolation protection 1000 V	max. wire cross sections	Construction/operation	TL	PU
200073	4011923167110	No	120 mm²	Other	300 mm	1
200073/MK	4011923463458	No	120 mm²			1
200095	4011923065409	No	185 mm²	Mechanic two hands	530 mm	1
200095/MK	4011923463526		185 mm²			1
200099	4011923065492	No	400 mm²	Mechanic two hands	780 mm	1
200099/MK	4011923463595		400 mm²			1

Cable cutters „Super light”

• For cutting Cu and Al cables, fine and multi-wiring
• Not suitable for steel wire and wire rope
• Extremely light thanks to full aluminium handles
• Dual lever ensures easy cutting
• Hardened blades with precision grinding
• Adjustable screw joint
• Blade head in chrome vanadium steel, forged and oil-hardened

Product group

Quantity	Art.No.	EAN	Isolation protection 1000 V	max. wire cross sections	Construction/operation	TL	PU
	200197	4011923475024	No	120 mm²	Mechanic two hands	700 mm	1

Cable cutter

• For cutting Cu and Al cables, fine and multi-wiring
• Not suitable for steel wire and wire rope
• Dual lever ensures easy cutting
• Hardened blades with precision grinding
• Adjustable screw joint
• Blade head in chrome vanadium steel, forged and oil-hardened

Product group

Quantity	Art.No.	EAN	Isolation protection 1000 V	max. wire cross sections	Construction/operation	TL	PU
	200100	4011923065508	No	400 mm²	Mechanic two hands	980 mm	1
	200104	4011923065546	No	400 mm²	Other		1

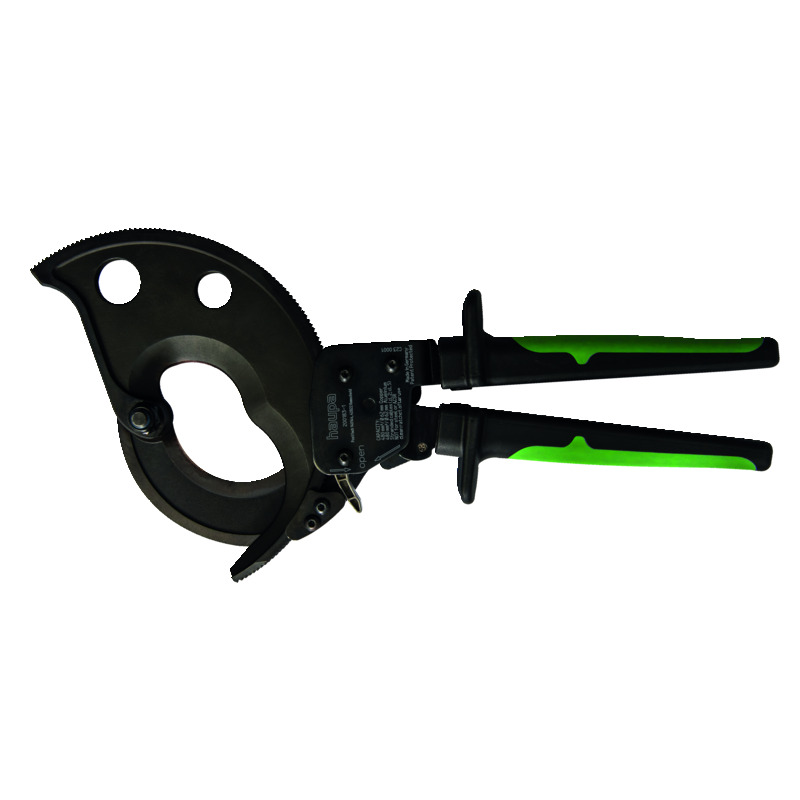

Hand cable cutters Ø 62 mm

• Designed for cutting copper and aluminium cables according to DIN EN 60228

• Equipped with ratchet gear transmission

• Provides optimal force transmission

• Enables one-handed operation through optimal lever ratio and step-by-step cutting up to Ø 62 mm

• Release mechanism available in every cutting position

Material:

• All parts made from high-strength special steel, with hardened or tempered cutting edges and stressed components

• Burnished surfaces

• Ergonomically shaped soft handles

• Colour: black/green

Cutting range:

• Cables and insulated conductors according to DIN EN 60228

• Multi-stranded cables (Class 2; Class 5) copper up to 480 mm² (sector-shaped, fine-stranded, communication/data)

• Multi-stranded cables (Class 2; Class 5) aluminium up to 480 mm² (sector-shaped, fine-stranded, communication/data)

• Not suitable for steel or ACSR cables

• Clean the ratchet mechanism after use

Dimensions:

Length: approx. 297 mm | Width: approx. 163 mm | Depth: approx. 36 mm

Weight: approx. 800 g

Quantity	Art.No.	EAN	Isolation protection 1000 V	Suitable for max. cable diameter	Max. cable cross-section	TL	Execution/actuation	handle design	Weight	PU
	200183-1	4011923627034	No	62 mm	480 mm	297 mm	Ratchet model mechanical	2 components	0,82 kg	1
