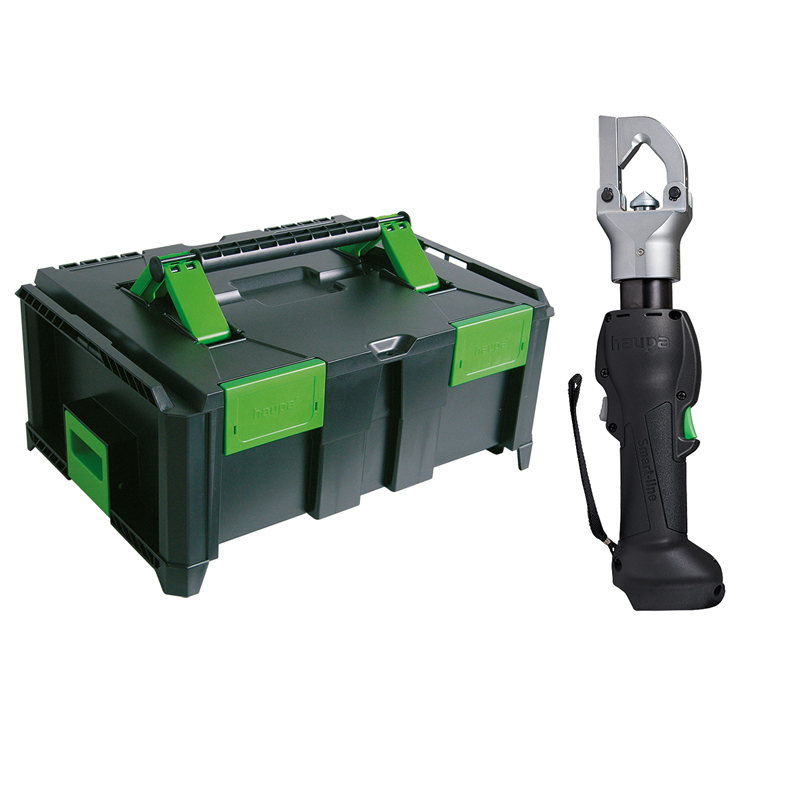

Crimping head can be rotated by 180°, with fast opening, return manually once compressing is complete, no inserts required, mandrel shape pressing.

With the different colours of the sensor LED, it shows whether the pressing has been completed successfully or which errors have occurred:

Light is green: Pressing completed as standard, motor stopped.

Light is orange: Battery voltage not sufficient

Light is red: Pressing interrupted before completed

The device also has 1 white LED designed to illuminate the working area.

• Pressing force in kN: 60

• Working pressure in bar: 700

• Pressing time, battery-operated in sec.: 5

• Battery charging time in min.: 30

• Battery type: Li-Ion, 18 V, 2 Ah

• Cable lugs: standard Cu 10 – 240

• Connectors: standard Cu 10 – 240

• Cable lugs: DIN Al 50 – 240

• Connectors: DIN Al 50 – 240

• DIN 46234 10 – 240
