Special cable cutters

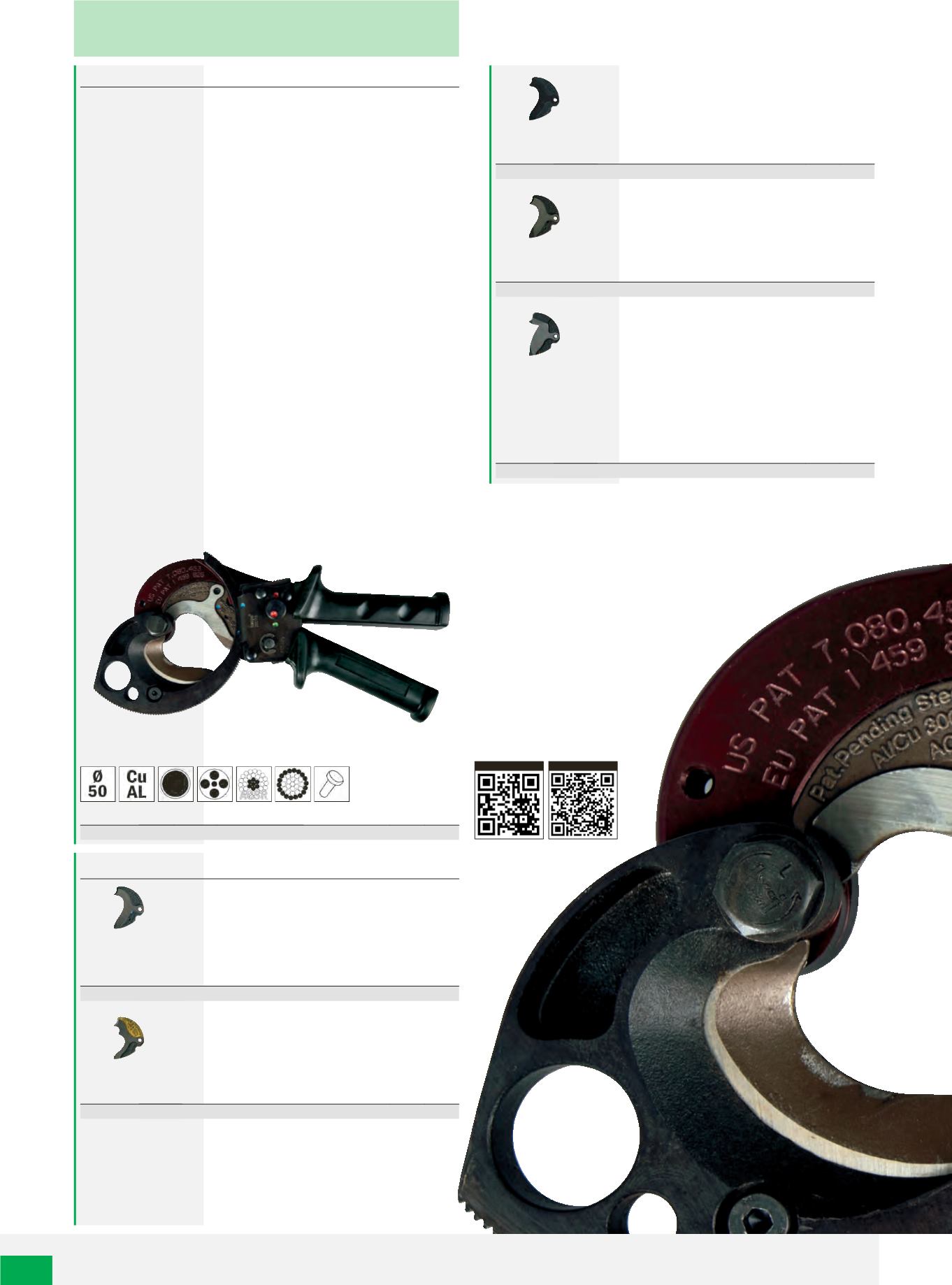

Universal cable cutter with eccentric drive
•
one-hand universal- and steel rope cutter with exchangeable cutting
segments
•
in the case of wear or changing requirements only the cutting segment need
to be replaced
•
Cleaner included
•
double needle bearing excenter lever 14mm
•
very easy to use through reduction of the attrition of the joint
•
strong reduction of the manuar force
•
Lever joint bolt strength 9mm
•
central lubrication
•
Cone fitting in the bolt with cross drilling on the bearing points
•
adjustable level of the transport plugs
•
opening of the cutter possible at any time, also suitable for the highest
demands without additives
Separable materials:
•
Cable AL /Cu
•
Cable with soft steel cover
•
Steel coverd ropes
•
Steel armoured ropes
•
Niro ropes
•
Flexible steel ropes
•
Tracking rope cable
•
Steel armoured hose
•
ACSR DIN 48 204
•
Constructional steel 235JR+AR
•
Screws
Complete set:
•
Universal cable cutter
•
1 pair of cutting segments S1 (art. 200178/S1)
•
ACSR
Art. no.
kg PU
200178
1,140 1
TL mm² fine wiring mm²
230 300
240
Further accessories for cable cutter item no. 200178
Application:
AL/CU: Cross-section 300 mm², Ø 50 mm
Flexible steel cables: Cross-section 95 mm², Ø 14 mm
Niro cables Ø 8 mm, 19/1
ACSR DIN 48 204: Cross-section 150/25 mm², Ø 20 mm, 7/2.1 mm
Steel armoured tubing: Ø 50 mm
Art. no.
kg PU
200178/S1
0,100 1
mm²
300
Application:
AL/CU: Cross-section 150 mm, Ø 30 mm
Flexible steel cables: Cross-section 70 mm, Ø 12 mm
Supporting cable: Cross-section 70/300 mm², Ø 12/30 mm, Type 8
ACSR DIN 48 204: Cross-section 70/12 mm², Ø 11.7 mm, 7/1.44 mm
Art. no.
kg PU
200178/B
0,100 1
mm²
150
Application:
AL/CU: Cross-section: 350 mm, Ø 50 mm
Clean cut and low handgrip with large cross sections
suitable for highly flexible conductors
not for steel
Art. no.
kg PU
200178/C
0,100 1
mm²
350
Application:
AL/CU: Cross-section 350 mm, Ø 50 mm
Flexible steel cables: Cross-section 95 mm, Ø 16 mm
Cable with soft steel sleeve: Cross-section 240 mm², Ø 50 mm
Clean cut and normal handgrip
Art. no.
kg PU
200178/S
0,100 1
mm²
350
Application:
AL/CU: Cross-section 200 mm², Ø 50 mm
Flexible steel cables: Cross-section 95 mm², Ø 14 mm
Niro cables: Ø 8 mm, 19/1
ACSR DIN 48 204: Cross-section 300/50 mm², Ø 24.5, 7/3 mm
Steel armoured tubing: Ø 50 mm
Construction steel 235JR+AR: Ø 10 mm, full material
Screws: Ø 8 mm, 8.8
Can lead to crimping of steel cables are highly flexible, slightly edgy
cutaway
section, increased handgrip
Art. no.
kg PU
200178/S2
0,100 1
mm²
200
