Safety cutting equipment

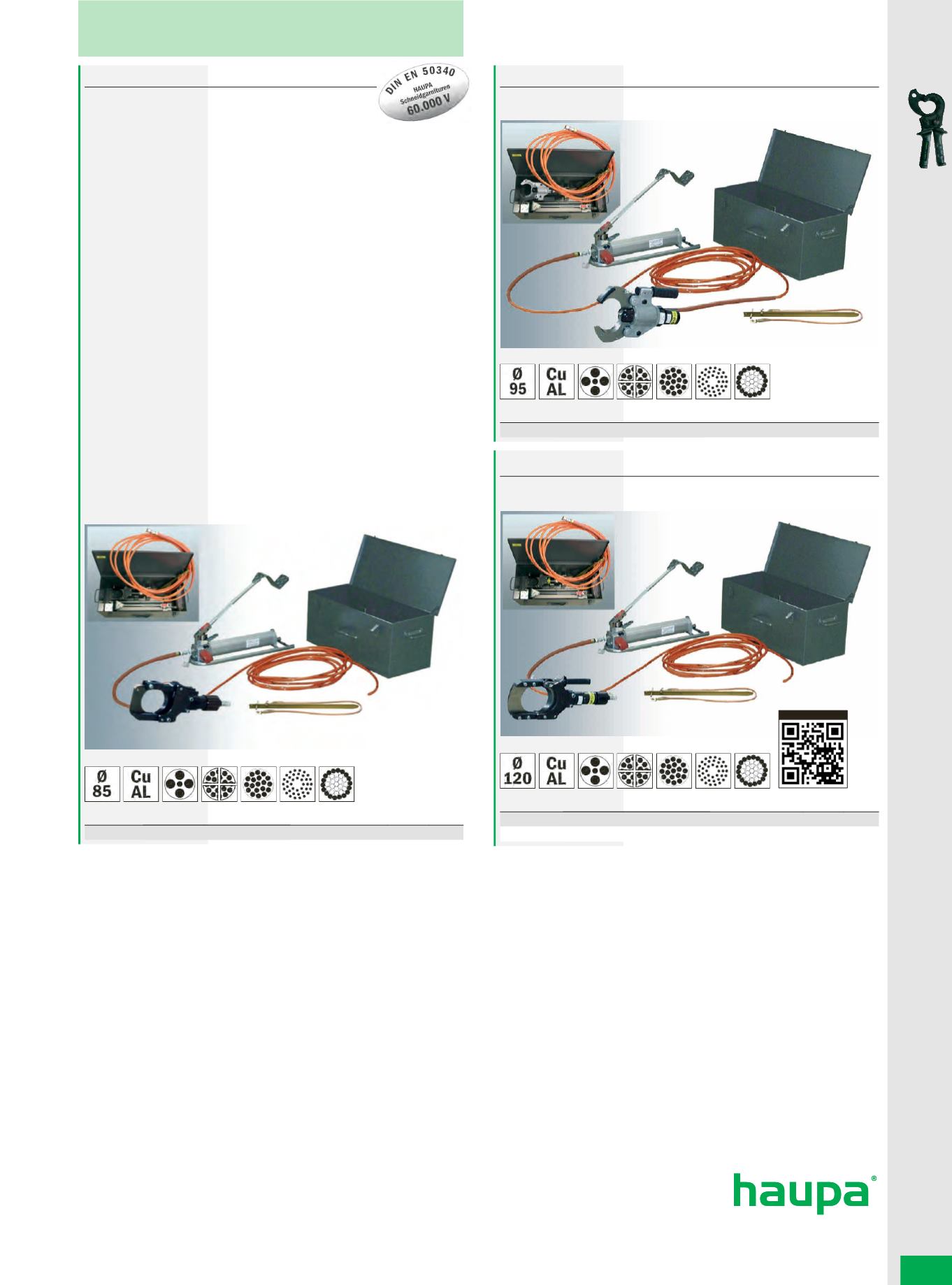

Hydraulic safety life line cable cutter
used for working under voltage acc. to VDE 0105, part 100.
Consisting of:
•
Hydraulic shear with high pressure hose of 10 m, with leak-free coupling
system and earth harness acc. to EN 50340
•
Double piston pump mounted on foot-pedal, with foot-operated switch
•
Transport case
•
Fully operational and filled with special oil
According to VDE 0105 Part 1 Para. 9.6.4 the cable cutter 216416 is used for
cutting low and medium voltage cables up to 60 KV AC. If a live wire is cut by
accident, the operator is not in any danger.
The 10 m long high pressure hydraulic hose, which connects the pump
to the cutting head, guarantees the highest standard of safety due to it
special insulating features. The cutting process is controlled by watching the
manometer attached to the pump, since, in general, the cutting head con
not be seen when a cable is cut. This process has been tested repeatedly at
medium voltage, with live wires and continuing main supply.
The cutting range goes up to 85 mm. The 12 mm cutting blades are made
of high yield point steel and are polished, thus wear- and tear- resistant, A
strongly dimensioned guidance of the blades guarantees a high degree of
mechanical stability. Even in the event of a short circuit, a safe cutting of the
wires is guaranteed, since the individual blades overlap by approx. 20 mm. The
blades open themselves when pressure is reduced. The high pressure hose
bursts at 2700 bar. The pressure relief safety system of the pump has been
adjusted at a 625 bar level.
Art. no.
kg PU
216417
32,000 1
Ø
NP
85
625
Hydraulic safety life line cable cutter
Art. no.
kg PU
216421
33,000 1
Ø
NP
95
625
Hydraulic safety life line cable cutter
Art. no.
kg PU
216416
36,600 1
216416/850
36,600 1
Ø
NP
120
625
120
850
Video 216416
