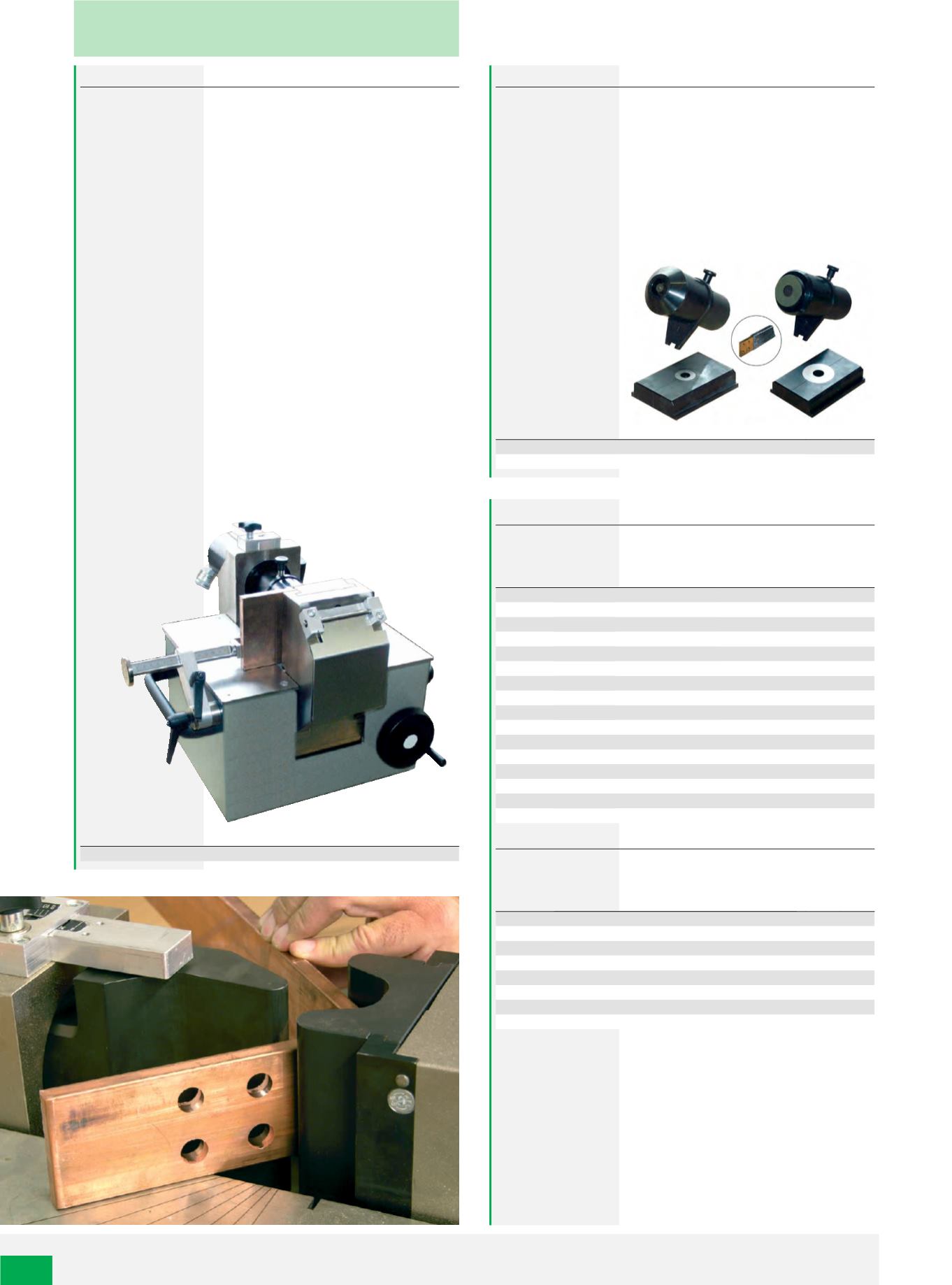

Punch and bending centre
Basic unit
Basic unit to accommodate bending, hole-making, cutting and cranking tools.
The processing of lamellar copper rails is possible! Hydraulic tool for
connection to a hydraulic pump with 700 bar (10,000 PSI).
The universal tool system is particularly suited for use in workshops and on
building sites. Copper and aluminium rails can be processed up to dimension
of 12 x 120 mm. The changing of the individual tools is carried out in seconds
thanks to the user-friendly construction. The compact construction and light
weight enable transportation in any car.
Bending:
Thanks to an integrated proximity switch a 100% repeat accuracy is achieved.
The maximum bending angle is 110°.
Hole-making:
The height-adjustable table with side stopper makes working easier. Marking
out and measuring is not necessary. Holes from 6.5 to 21.0 mm in diameter
can be punched. Slotted holes up to 14 x 20 mm.
With the hole tool II holes can be made in lamellar copper rails and grounding
bands.
Cutting:
Our cutting blade geometry enables clean and burr-free cutting.
Cranking:
The offsetting (stepped bending) by a material thickness is carried out in a
single process.
Art. no.
kg PU
216770
51,000 1
Hole-making tools
For punching round and slotted holes.
•
Maximum material thickness: 12 mm
•
Maximum diameter: 21 mm
•
Maximum slotted hole: 17 x 20 mm
216776:
Hole tool for solid copper and aluminium rails
216777:
Hole-making tool for solid copper and aluminium rails as well as for laminated
copper rails and grounding bands
Art. no.
kg PU
216776
4,300 1
216777
4,300 1
Hole inserts for round holes
For both hole-making tools, the following diameters can be supplied
Art. no.
kg PU
216778
0,118 1
216778/L
0,421 1
216779
0,114 1
216779/L
0,420 1
216780
0,110 1
216780/L
0,419 1
216781
0,106 1
216781/L
0,418 1
216782
0,102 1
216782/L
0,416 1
216783
0,098 1
216783/L
0,414 1
216784
0,094 1
216784/L
0,412 1
216785
0,090 1
216785/L
0,411 1
Ø
6,5
M6 > 216776
6,5
M6 > 216777
9,0
M8 > 216776
9,0
M8 > 216777
10,5
M8 > 216776
10,5
M8 > 216777
11,0
M10 > 216776
11,0
M10 > 216777
12,7
M10 > 216776
12,7
M10 > 216777
13,0
M12 > 216776
13,0
M12 > 216777
17,0
M16 > 216776
17,0
M16 > 216777
21,0
M20 > 216776
21,0
M20 > 216777
Hole inserts for slotted holes
For both hole-making tools, the following diameters can be supplied
Art. no.
kg PU
216786
0,098 1
216786/L
0,423 1
216787
0,095 1
216787/L
0,421 1
216788
0,092 1
216788/L
0,419 1
216789
0,089 1
216789/L
0,417 1
Ø
9x18
M8 > 216776
9x18
M8 > 216777
11x20
M10 > 216776
11x20
M10 > 216777
13x20
M12 > 216776
13x20
M12 > 216777
17x20
M16 > 216776
17x20
M16 > 216777
