Hydraulic punching tools

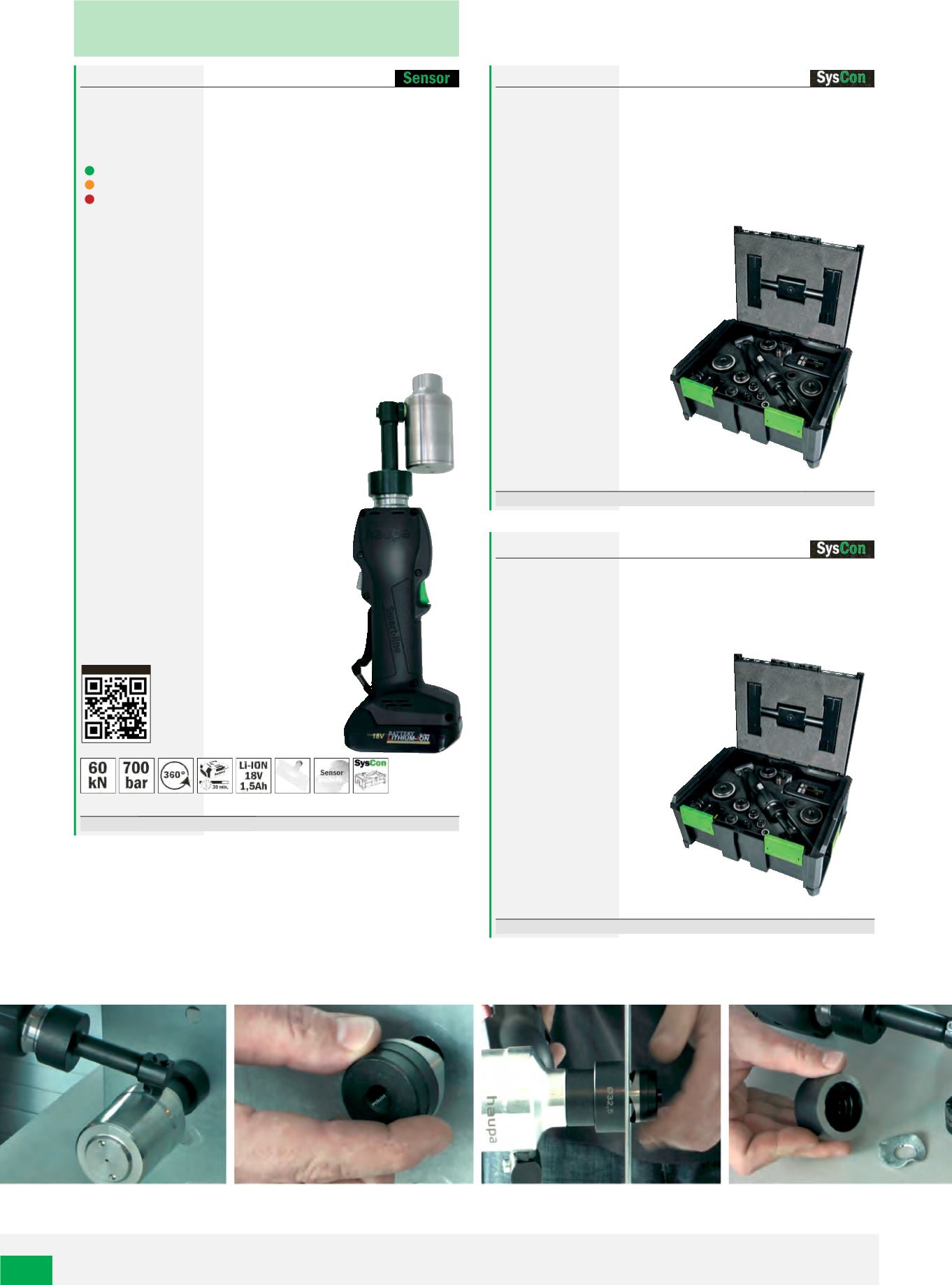

Electro-hydraulic punching tool „AS-6M“
in SysCon stacking box including 1 charger, 1 battery, 1 carry strap, without
inserts.
With the different colours of the sensor LED, it shows whether the pressing has
been completed successfully or which errors have occurred:
Light is green: Punching completed as standard, motor stopped.
Light is orange: Battery voltage not sufficient
Light is red: Punching interrupted before completed
The device also has 2 white LED designed to illuminate the working area.
Extent of supply:
1 hydraulic punch: 1 connecting rod 3/8-24 UNF (article no.
217660), 1 connecting rod 3/4-16 UNF (article no. 217662), 1 adapter (article
no. 217664), 1 spacer bushing (article no. 217666), 1 SysCon stacking box.
Advantages:
•
Head can be rotated by 360°
•
Flexible aluminium head
•
Automatic end switch off
•
Non-slip handle area
•
Slim and compact construction
•
LED to illuminate the area you are working in
•
Li-ion technology
Punching capacity:
Shaped holes 138 x 138 mm (ST37 2.5 mm)
Round holes 150 mm (ST37 3 mm) / 63 mm (VA 2 mm)
Technical data:
•
Pressing force: 60 kN
•
Working pressure: 700 bar
•
Battery charge time: 30 minutes
•
Battery voltage: 18 V
•
Battery capacity: 1,5 Ah
•
Weight: 3.64 kg
•
Weight of set: 4.7 kg
Art. no.
kg PU
217600
4,700 1
dimension
455 x 75 mm
SysCon set metric
Content:
8 punches
Art. no.
kg PU
217600/M
4,300 1
SysCon set PG
Content:
9 punches
Art. no.
kg PU
217600/PG
4,300 1
1 220372 ABS plastic box „SysCon M“ (insert including)
1 270600 Electro-hydraulic punching tool „AS-6M“
1 217610 M16
1 217612 M20
1 217614 M25
1 217616 M32
1 217618 M40
1 217620 M50
1 217622 M63
1 217636 PG16
1 220372 ABS plastic box „SysCon M“ (insert including)
1 217600 Electro-hydraulic punching tool „AS-6M“
1 217630 PG9
1 217632 PG11
1 217634 PG13,5
1 217636 PG16
1 217638 PG21
1 217640 PG29
1 217642 PG36
1 217644 PG42
1 217646 PG48
