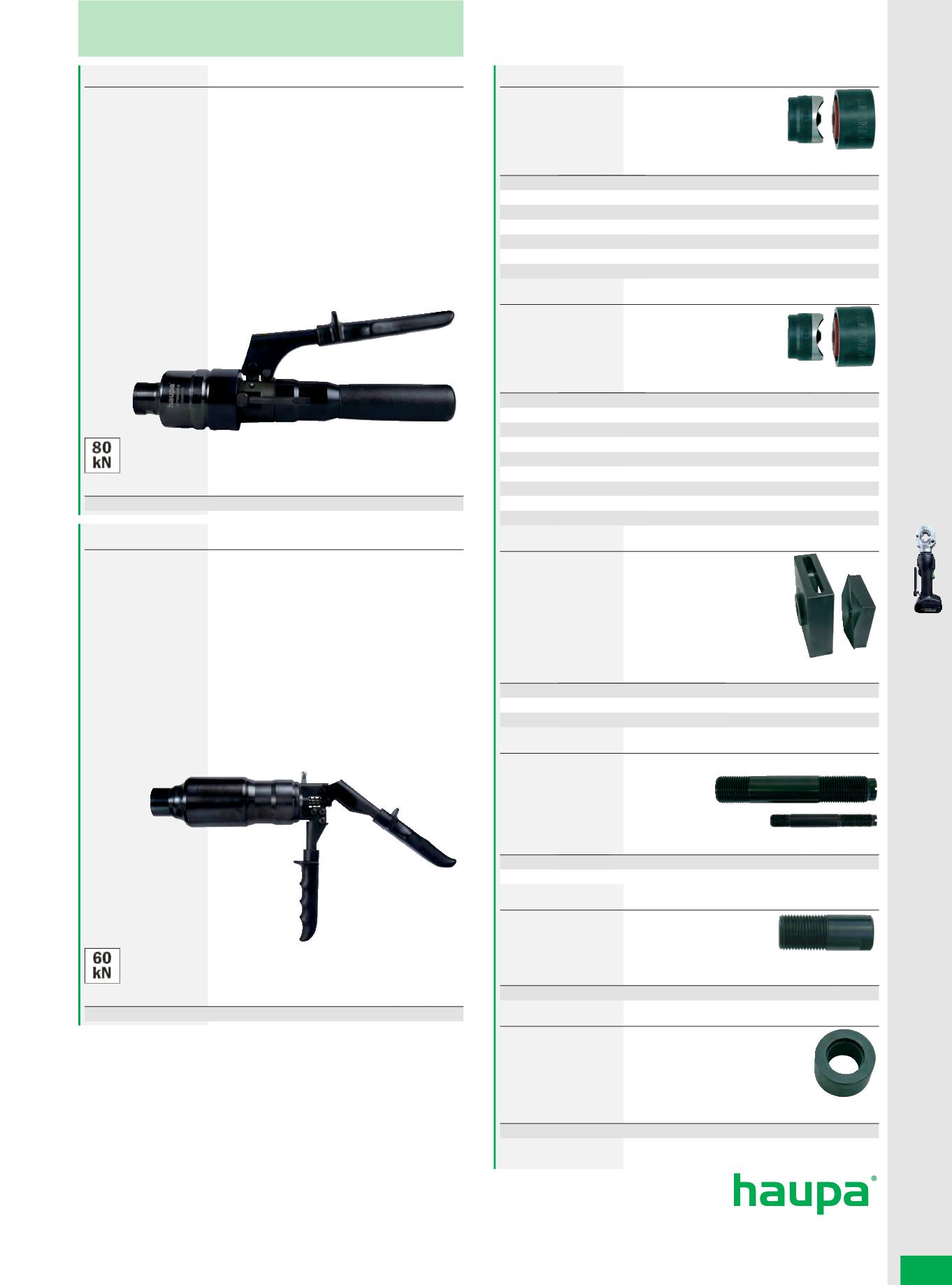

Hydraulic punching tools
Hydraulic hand-punching tool „HS-8“
Punches precise holes with almost no burring. Ideal for fast, frontal punching of
control panels.
Extent of supply:
1 hydraulic hand punch, 1 connecting rod 3/8-24 UNF
(article no. 217660), 1 connecting rod 3/4-16 UNF (article no. 217662),
1 adapter (article no. 217664), 1 spacer bushing (article no. 217666),
1 transport case.
•
Punching performance: Steel sheet of up to a maximum of 3 mm
•
Pressing force: 80 kN
•
Length: 308 mm
•
Weight: 2,4 kg
•
Weight Set: 3,8 kg
Art. no.
kg PU
217604
3,800 1
Hydraulic hand-punch-cutter „HS-6“
Punches accurate slugs nearly free of burs. Usable for building and maintaining
control boxes, for car retrofitting and for sanitary application.
Extent of supply:
1 hydraulic punching tool, 1 rod 3/8-24 UNF (art. 217660),
1 rod 3/4-16 UNF (art. 217662), 1 adapter (art. 217664), 1 sleeve (art.
217666), 1 plastic case with insert.
•
Punching capacity: Steel plates up to max. 3 mm
•
Pressing force: 60 kN
•
Length: 230 mm
•
Weight: 2,4 kg
•
Weight Set: 3,8 kg
Art. no.
kg PU
217602
3,800 1
Punching dies, metric
•
ST37, 3 mm
•
VA 2 mm
Art. no.
kg PU
217610
0,070 1
217612
0,090 1
217614
0,150 1
217616
0,220 1
217618
0,900 1
217620
0,640 1
217622
0,950 1
Ø
16,5 ISO 16
20,5 ISO 20
25,5 ISO 25
32,5 ISO 32
40,5 ISO 40
50,5 ISO 50
63,5 ISO 63
Punching dies, PG
•
ST37, 3 mm
•
VA 2 mm
Art. no.
kg PU
217630
0,060 1
217632
0,084 1
217634
0,091 1
217636
0,120 1
217638
0,170 1
217640
0,330 1
217642
0,536 1
217644
0,731 1
217646
0,896 1
Ø
15,2 PG9
18,6 PG11
20,4 PG13,5
22,5 PG16
28,3 PG21
37 PG29
47 PG36
54 PG42
60 PG48
Punching dies, square
•
ST37, 2,5 mm
•
UNF
Art. no.
kg PU
217650
1,862 1
217652
1,500 1
217654
2,000 1
height/width
46
68
92
Connecting rod
Art. 217660 - 3/8-24 UNF
Art. 217662 - 3/4-16 UNF
Art. no.
kg PU
217660
0,040 1
217662
0,203 1
1
2
Adapter
for connecting rod art. 217660
•
UNF
Art. no.
kg PU
217664
0,100 1
Spacer bushing
Art. no.
kg PU
217666
0,100 1
