Tubular cable lugs, standard series

• For stranded round shaped conductors e.g. VDE 0295 class 2
• For preround sector shaped conuctors
• Annealed material for easier crimping
• Material: 99.9% electrolytic copper E-CU DIN 40500
• Surface: tin-plated
• Vibration and shock proofing DIN EN 61373:1999-11, Cat. 1, Cl. B

available with and without sight hole e.g. 290900/S (add xx xx xx/s when ordering)

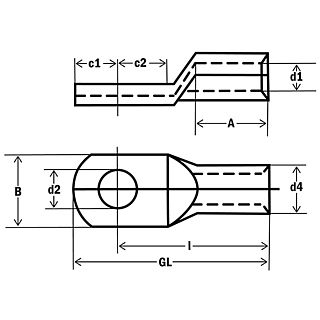

Art.No. EAN Cross sectionMMaterialSurface protectiond1Hole-Ød2c1c2BAv1IConnecting angleFlange shapeInsulatedDealer BoxPU
290900 0.75 mm² 3 Copper Tinned 1.3 mm 3.2 mm 2.8 mm 3.25 mm 4 mm 6 mm 6 1 12 mm Straight Ring shape No 2000 100
290900/S 0.75 mm² 3 Copper Tinned 1.3 mm 3.2 mm 2.8 mm 3.25 mm 4 mm 6 mm 6 1 12 mm Straight Ring shape No 2000 100
290902 0.75 mm² 4 Copper Tinned 1.3 mm 4.3 mm 2.8 mm 4 mm 5 mm 6.5 mm 6 1 13 mm Straight Ring shape No 2000 100
290902/S 0.75 mm² 4 Copper Tinned 1.3 mm 4.3 mm 2.8 mm 4 mm 5 mm 6.5 mm 6 1 13 mm Straight Ring shape No 2000 100
290904 1.5 mm² 3 Copper Tinned 1.8 mm 3.2 mm 3.3 mm 3.25 mm 4 mm 6.5 mm 6 1 12 mm Straight Ring shape No 2000 100
290906 1.5 mm² 4 Copper Tinned 1.8 mm 4.3 mm 3.3 mm 4 mm 5 mm 6.5 mm 6 1 13 mm Straight Ring shape No 2000 100
290908 1.5 mm² 5 Copper Tinned 1.8 mm 5.3 mm 3.3 mm 4.75 mm 5.5 mm 7.5 mm 6 1 14 mm Straight Ring shape No 2000 100
290910 1.5 mm² 6 Copper Tinned 1.8 mm 6.5 mm 3.3 mm 6.5 mm 6.5 mm 9 mm 6 1 16 mm Straight Ring shape No 2000 100
290912 2.5 mm² 3 Copper Tinned 2.3 mm 3.2 mm 4.2 mm 3.25 mm 4 mm 7.5 mm 6 1 12 mm Straight Ring shape No 2000 100
290914 2.5 mm² 4 Copper Tinned 2.3 mm 4.3 mm 4.2 mm 4 mm 5 mm 7.5 mm 6 1 13 mm Straight Ring shape No 2000 100
290916 2.5 mm² 5 Copper Tinned 2.3 mm 5.3 mm 4.2 mm 4.75 mm 5.5 mm 8.5 mm 6 1 14 mm Straight Ring shape No 2000 100
290918 2.5 mm² 6 Copper Tinned 2.3 mm 6.5 mm 4.2 mm 6.5 mm 6.5 mm 9.5 mm 6 1 16 mm Straight Ring shape No 2000 100
290920 2.5 mm² 8 Copper Tinned 2.3 mm 8.5 mm 4.2 mm 7.75 mm 9.5 mm 13 mm 6 1 20 mm Straight Ring shape No 2000 100
290922 4 mm² 4 Copper Tinned 3 mm 4.3 mm 5 mm 4.75 mm 5.5 mm 8.5 mm 8 1 17 mm Straight Ring shape No 2000 100
290924 4 mm² 5 Copper Tinned 3 mm 5.3 mm 5 mm 4.75 mm 6 mm 9 mm 8 1 17 mm Straight Ring shape No 2000 100
290926 4 mm² 6 Copper Tinned 3 mm 6.5 mm 5 mm 6.5 mm 6.5 mm 10 mm 8 1 19 mm Straight Ring shape No 2000 100
290928 4 mm² 8 Copper Tinned 3 mm 8.5 mm 5 mm 8.5 mm 9.5 mm 13 mm 8 1 22 mm Straight Ring shape No 2000 100
290930 6 mm² 4 Copper Tinned 3.5 mm 4.3 mm 6.5 mm 5 mm 5.5 mm 8.5 mm 9 1 18 mm Straight Ring shape No 1800 100
290932 6 mm² 5 Copper Tinned 3.5 mm 5.3 mm 6.5 mm 6.5 mm 7.5 mm 10 mm 9 1 21 mm Straight Ring shape No 1800 100
290934 6 mm² 6 Copper Tinned 3.5 mm 6.5 mm 6.5 mm 6.5 mm 7.5 mm 12 mm 9 1 21 mm Straight Ring shape No 1400 100
290936 6 mm² 8 Copper Tinned 3.5 mm 8.5 mm 6.5 mm 10 mm 10 mm 15 mm 9 1 23 mm Straight Ring shape No 1400 100
290938 10 mm² 5 Copper Tinned 4.5 mm 5.3 mm 7 mm 6.5 mm 7.5 mm 12 mm 10 1 22 mm Straight Ring shape No 1000 100
290940 10 mm² 6 Copper Tinned 4.5 mm 6.5 mm 7 mm 6.5 mm 7.5 mm 12 mm 10 1 22 mm Straight Ring shape No 1000 100
290942 10 mm² 8 Copper Tinned 4.5 mm 8.5 mm 7 mm 10 mm 10 mm 15 mm 10 1 25 mm Straight Ring shape No 800 100
290944 10 mm² 10 Copper Tinned 4.5 mm 10.5 mm 7 mm 12 mm 12 mm 17 mm 10 1 27 mm Straight Ring shape No 600 100
290946 10 mm² 12 Copper Tinned 4.5 mm 13 mm 7 mm 13 mm 13 mm 19 mm 10 1 29 mm Straight Ring shape No 600 100
290948 16 mm² 5 Copper Tinned 5.5 mm 5.3 mm 8.5 mm 5.5 mm 6.5 mm 12 mm 13 1 26 mm Straight Ring shape No 600 100
290950 16 mm² 6 Copper Tinned 5.5 mm 6.5 mm 8.5 mm 6.25 mm 7.5 mm 12 mm 13 1 27 mm Straight Ring shape No 600 100
290952 16 mm² 8 Copper Tinned 5.5 mm 8.5 mm 8.5 mm 8.5 mm 9.5 mm 15 mm 13 1 29 mm Straight Ring shape No 400 100
290954 16 mm² 10 Copper Tinned 5.5 mm 10.5 mm 8.5 mm 10.5 mm 11.5 mm 17 mm 13 1 31 mm Straight Ring shape No 400 100
290956 16 mm² 12 Copper Tinned 5.5 mm 13 mm 8.5 mm 12 mm 13 mm 19 mm 13 1 33 mm Straight Ring shape No 400 100
290958 25 mm² 6 Copper Tinned 7 mm 6.5 mm 10 mm 7.5 mm 7.5 mm 14 mm 15 2 30 mm Straight Ring shape No 400 50
290960 25 mm² 8 Copper Tinned 7 mm 8.5 mm 10 mm 10 mm 10 mm 16 mm 15 2 32 mm Straight Ring shape No 400 50
290962 25 mm² 10 Copper Tinned 7 mm 10.5 mm 10 mm 12 mm 12 mm 18 mm 15 2 34 mm Straight Ring shape No 300 50
290964 25 mm² 12 Copper Tinned 7 mm 13 mm 10 mm 13 mm 13 mm 19 mm 15 2 35 mm Straight Ring shape No 300 50
290966 35 mm² 6 Copper Tinned 8.5 mm 6.5 mm 12 mm 7.5 mm 7.5 mm 17 mm 17 2 32 mm Straight Ring shape No 240 40
290968 35 mm² 8 Copper Tinned 8.5 mm 8.5 mm 12 mm 10 mm 10 mm 17 mm 17 2 34 mm Straight Ring shape No 240 40
290970 35 mm² 10 Copper Tinned 8.5 mm 10.5 mm 12 mm 12 mm 12 mm 19 mm 17 2 37 mm Straight Ring shape No 160 40
290972 35 mm² 12 Copper Tinned 8.5 mm 13 mm 12 mm 13 mm 13 mm 21 mm 17 2 38 mm Straight Ring shape No 160 40
290974 35 mm² 16 Copper Tinned 8.5 mm 17 mm 12 mm 16 mm 16 mm 26 mm 17 2 42 mm Straight Ring shape No 160 40
290976 50 mm² 6 Copper Tinned 10 mm 6.5 mm 14 mm 10 mm 10 mm 20 mm 19 2 37 mm Straight Ring shape No 160 40
290978 50 mm² 8 Copper Tinned 10 mm 8.5 mm 14 mm 10 mm 10 mm 20 mm 19 2 37 mm Straight Ring shape No 160 40
290980 50 mm² 10 Copper Tinned 10 mm 10.5 mm 14 mm 12 mm 12 mm 20 mm 19 2 39 mm Straight Ring shape No 160 25
290982 50 mm² 12 Copper Tinned 10 mm 13 mm 14 mm 13 mm 13 mm 23 mm 19 2 43 mm Straight Ring shape No 100 25
290984 50 mm² 16 Copper Tinned 10 mm 17 mm 14 mm 16 mm 16 mm 28 mm 19 2 46 mm Straight Ring shape No 100 25
290985 70 mm² 6 Copper Tinned 12 mm 6.5 mm 16.5 mm 10 mm 10 mm 23 mm 21 2 43 mm Straight Ring shape No 100 25
290986 70 mm² 8 Copper Tinned 12 mm 8.5 mm 16.5 mm 10 mm 10 mm 23 mm 21 2 43 mm Straight Ring shape No 100 25
290988 70 mm² 10 Copper Tinned 12 mm 10.5 mm 16.5 mm 12 mm 12 mm 23 mm 21 2 44 mm Straight Ring shape No 100 25
290990 70 mm² 12 Copper Tinned 12 mm 13 mm 16.5 mm 13 mm 13 mm 23 mm 21 2 46 mm Straight Ring shape No 100 25
290991 70 mm² 14 Copper Tinned 12 mm 15 mm 16.5 mm 14.5 mm 14.5 mm 23 mm 21 2 48 mm Straight Ring shape No 100 25
290992 70 mm² 16 Copper Tinned 12 mm 17 mm 16.5 mm 16 mm 16 mm 28 mm 21 2 50 mm Straight Ring shape No 100 25
290994 95 mm² 8 Copper Tinned 13.5 mm 8.5 mm 18 mm 12 mm 12 mm 26 mm 25 2 48 mm Straight Ring shape No 100 25
290996 95 mm² 10 Copper Tinned 13.5 mm 10.5 mm 18 mm 12 mm 12 mm 26 mm 25 2 48 mm Straight Ring shape No 100 25
290998 95 mm² 12 Copper Tinned 13.5 mm 13 mm 18 mm 13 mm 13 mm 26 mm 25 2 49 mm Straight Ring shape No 100 25
290999 95 mm² 14 Copper Tinned 13.5 mm 15 mm 18 mm 14.5 mm 14.5 mm 26 mm 25 2 51 mm Straight Ring shape No 60 15
291000 95 mm² 16 Copper Tinned 13.5 mm 17 mm 18 mm 16 mm 16 mm 28 mm 25 2 54 mm Straight Ring shape No 60 15
291002 95 mm² 20 Copper Tinned 13.5 mm 21 mm 18 mm 22 mm 22 mm 36 mm 25 2 60 mm Straight Ring shape No 60 15
290004 120 mm² 8 Copper Tinned 15 mm 8.5 mm 19.5 mm 14 mm 14 mm 28 mm 26 2 51 mm Straight Ring shape No 60 15
290006 120 mm² 10 Copper Tinned 15 mm 10.5 mm 19.5 mm 14 mm 14 mm 28 mm 26 2 51 mm Straight Ring shape No 60 15
290008 120 mm² 12 Copper Tinned 15 mm 13 mm 19.5 mm 14 mm 14 mm 28 mm 26 2 51 mm Straight Ring shape No 60 15
290009 120 mm² 14 Copper Tinned 15 mm 15 mm 19.5 mm 15 mm 15 mm 28 mm 26 2 52 mm Straight Ring shape No 72 18
290010 120 mm² 16 Copper Tinned 15 mm 17 mm 19.5 mm 16 mm 16 mm 30 mm 26 2 54 mm Straight Ring shape No 60 15
290012 120 mm² 20 Copper Tinned 15 mm 21 mm 19.5 mm 22 mm 22 mm 36 mm 26 2 63 mm Straight Ring shape No 60 15
290014 150 mm² 10 Copper Tinned 16.5 mm 10.5 mm 21 mm 14 mm 14 mm 31 mm 30 2 56 mm Straight Ring shape No 60 15
290016 150 mm² 12 Copper Tinned 16.5 mm 13 mm 21 mm 15 mm 15 mm 31 mm 30 2 57 mm Straight Ring shape No 60 15
290017 150 mm² 14 Copper Tinned 16.5 mm 15 mm 21 mm 15 mm 15 mm 31 mm 30 2 57 mm Straight Ring shape No 60 15
290018 150 mm² 16 Copper Tinned 16.5 mm 17 mm 21 mm 16 mm 16 mm 31 mm 30 2 58 mm Straight Ring shape No 60 15
290020 150 mm² 20 Copper Tinned 16.5 mm 21 mm 21 mm 22 mm 22 mm 36 mm 30 2 66 mm Straight Ring shape No 48 12
290022 185 mm² 12 Copper Tinned 19 mm 13 mm 24 mm 18 mm 18 mm 35 mm 30 2 65 mm Straight Ring shape No 40 20
290023 185 mm² 14 Copper Tinned 19 mm 15 mm 24 mm 18 mm 18 mm 35 mm 30 2 65 mm Straight Ring shape No 40 20
290024 185 mm² 16 Copper Tinned 19 mm 17 mm 24 mm 18 mm 18 mm 35 mm 30 2 65 mm Straight Ring shape No 40 20
290026 185 mm² 20 Copper Tinned 19 mm 21 mm 24 mm 22 mm 22 mm 39 mm 30 2 69 mm Straight Ring shape No 40 20
290028 240 mm² 12 Copper Tinned 21 mm 13 mm 26 mm 21.5 mm 19 mm 39 mm 35 4 72 mm Straight Ring shape No 30 15
290029 240 mm² 14 Copper Tinned 21 mm 15 mm 26 mm 21.5 mm 19 mm 39 mm 35 4 72 mm Straight Ring shape No 30 15
290030 240 mm² 16 Copper Tinned 21 mm 17 mm 26 mm 21.5 mm 19 mm 39 mm 35 4 72 mm Straight Ring shape No 30 15
290034 300 mm² 12 Copper Tinned 23.5 mm 13 mm 29.5 mm 24 mm 24 mm 43 mm 44 4 87 mm Straight Ring shape No 16 8
290036 300 mm² 14 Copper Tinned 23.5 mm 15 mm 29.5 mm 24 mm 24 mm 43 mm 44 4 87 mm Straight Ring shape No 16 8
290038 300 mm² 16 Copper Tinned 23.5 mm 17 mm 29.5 mm 24 mm 24 mm 43 mm 44 4 87 mm Straight Ring shape No 16 8
290040 300 mm² 20 Copper Tinned 23.5 mm 21 mm 29.5 mm 24 mm 24 mm 43 mm 44 4 87 mm Straight Ring shape No 16 8
290046 400 mm² 16 Copper Tinned 27 mm 17 mm 34 mm 24 mm 24 mm 49 mm 44 4 90 mm Straight Ring shape No 10 5
290048 400 mm² 20 Copper Tinned 27 mm 21 mm 34 mm 24 mm 24 mm 49 mm 44 4 90 mm Straight Ring shape No 10 5
290041 500 mm² 16 Copper Tinned 31 mm 17 mm 38 mm 24 mm 24 mm 55 mm 70 4 103 mm Straight Ring shape No 12 6
290043 500 mm² 20 Copper Tinned 31 mm 21 mm 38 mm 24 mm 24 mm 55 mm 70 4 103 mm Straight Ring shape No 12 6
290045 625 mm² 16 Copper Tinned 34 mm 17 mm 41 mm 24 mm 24 mm 60 mm 70 4 108 mm Straight Ring shape No 6 3
290047 625 mm² 20 Copper Tinned 34 mm 21 mm 41 mm 24 mm 24 mm 60 mm 70 4 108 mm Straight Ring shape No 6 3
