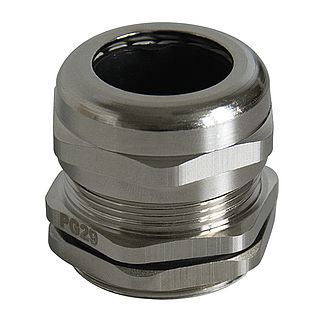

Cable glands brass nickel-plated, IP68, fully mounted

Material: brass nickel-plated, (halogen free)
lock nut/washer: TPR
temperature range: – 40°C to + 120°C
protection category: IP68

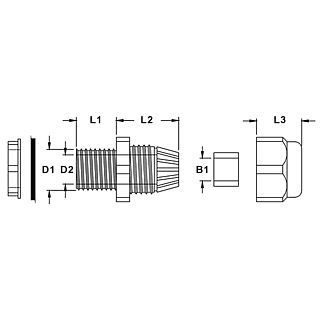

Art.No.	EAN	Thread type	Nominal thread size metric/PG	Colour	WS	Degree of protection (IP)	Material	Material quality	Pitch thread	D2	D1	B1	L1	L2	KB	PU
250600	4011923561581	Metric	12	Other	14	IP68	Metal	Brass	1.5 mm	8.4 mm	12 mm	6.8 mm	6.2 mm	17 mm	3 - 8,5	10
250602	4011923561598	Metric	16	Other	18	IP68	Metal	Brass	1.5 mm	12 mm	16 mm	8.6 mm	7.7 mm	18 mm	4 - 8	10
250604	4011923561604	Metric	20	Other	22	IP68	Metal	Brass	1.5 mm	16 mm	20 mm	11.9 mm	8.1 mm	20 mm	6 - 12	10
250606	4011923561611	Metric	25	Other	24 - 27	IP68	Metal	Brass	1.5 mm	20.5 mm	25 mm	14.5 mm	8.5 mm	20.2 mm	10 - 14	10
250608	4011923561628	Metric	32	Other	35	IP68	Metal	Brass	1.5 mm	27 mm	32 mm	21.5 mm	10 mm	24.5 mm	15 - 22	10
250610	4011923561635	Metric	40	Other	40 - 45	IP68	Metal	Brass	1.5 mm	35.5 mm	40 mm	25.5 mm	11 mm	27 mm	18 - 25	5
250611	4011923568054	Metric	40	Other	45	IP68	Metal	Brass	1.5 mm	35 mm	40 mm	30.5 mm	11 mm	28 mm	22 - 30	5
250612	4011923561642	Metric	50	Other	55 - 57	IP68	Metal	Brass	1.5 mm	44 mm	50 mm	39 mm	13 mm	32 mm	32 - 38	5
250614	4011923561659	Metric	63	Other	64 - 68	IP68	Metal	Brass	1.5 mm	55.5 mm	63 mm	44.5 mm	14 mm	34 mm	37 - 44	5

Material: brass nickel-plated, (halogen free)
lock nut/washer: TPR
temperature range: – 40°C to + 120°C
protection category: IP68

Art.No.	EAN	Thread type	Nominal thread size metric/PG	WS	Degree of protection (IP)	Material	Material quality	Pitch thread	D2	D1	B1	L1	L2	KB	PU
250630	4011923561666	PG	7	14	IP68	Metal	Brass	1.5 mm	8.5 mm	12 mm	6.9 mm	6.5 mm	16.5 mm	3 - 6,5	10
250632	4011923561673	PG	9	17	IP68	Metal	Brass	1.5 mm	11.8 mm	14.8 mm	8.5 mm	8.1 mm	18.9 mm	4 - 8	10
250634	4011923561680	PG	11	20 - 21	IP68	Metal	Brass	1.5 mm	14.2 mm	18.2 mm	10.5 mm	8 mm	18.5 mm	5 - 10	10
250636	4011923561697	PG	13.5	23 - 22	IP68	Metal	Brass	1.5 mm	16.2 mm	20.1 mm	12.1 mm	7.7 mm	20.5 mm	6 - 12	10
250638	4011923561703	PG	16	25 - 24	IP68	Metal	Brass	1.5 mm	18.3 mm	22.2 mm	14.5 mm	8.3 mm	19.7 mm	10 - 14	10
250640	4011923561710	PG	21	30	IP68	Metal	Brass	1.5 mm	23.8 mm	28.2 mm	18.2 mm	8.8 mm	23.3 mm	13 - 18	10
250642	4011923561727	PG	29	40	IP68	Metal	Brass	1.5 mm	32.4 mm	36.6 mm	25.2 mm	10 mm	26.3 mm	18 - 25	10
250644	4011923561734	PG	36	50	IP68	Metal	Brass	1.5 mm	41.5 mm	46 mm	33.2 mm	11 mm	32 mm	25 - 33	5
250646	4011923561741	PG	42	57	IP68	Metal	Brass	1.5 mm	47.7 mm	53.8 mm	38.7 mm	12 mm	32 mm	32 - 38	5
250648	4011923561758	PG	48	64	IP68	Metal	Brass	1.5 mm	52.6 mm	59 mm	44.5 mm	12.6 mm	33.9 mm	37 - 44	5
