Battery powered crimping tool „SH-6“

Hydraulic for interchangeable dies, crimping head can be rotated by 180°, with fast opening, manual return flow after perfect pressure.
Extent of supply: 1 crimping tool, 1 charger, 1 battery, 1 strap, in SysCon stacking box without dies.
• Pressing force in kN: 60 kN
• Working pressure in bar: 700
• Head can be opened yes
• Opening/ Hub: 17 mm
• Pressing width: slim
• Cable lugs: standard Cu 10-240 • DIN Cu 10-240 • DIN Al 16-185
• Connectors: Cu 10-240 • DIN Cu 10-240 • DIN Al 16-185
• Pressing time, battery-operated in seconds: ca. 5
• Battery charging time in minutes: 60
• Battery type: Li-Ion, 18 V, 2 Ah
• With battery item no. 215523 and charger item no. 215527
• Weight in kg without batterie: 2,4
• Weight of set in kg with batterie: 7,9

Quantity Art.No. EAN mm²TLCompression shapeSuitable forConstruction/operationInserts exchangeablePU
215881-1 4011923608545 10 - 240 mm² 415 mm Hexagon Various applications Accumulator-hydraulic Yes 1

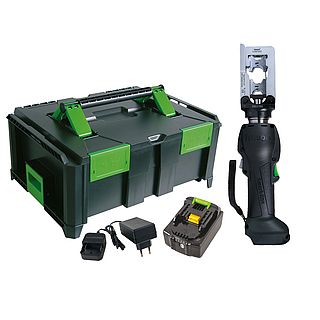

Battery powered crimping tool „SH-6M“

Technical data and scope of delivery, see 215881-1.

With the different colours of the sensor LED, it shows whether the pressing has been completed successfully or which errors have occurred:

Light is green: Pressing completed as standard, motor stopped.
Light is orange: Battery voltage not sufficient
Light is red: Pressing interrupted before completed

The device also has 1 white LED designed to illuminate the working area.

Quantity Art.No. EAN mm²TLCompression shapeSuitable forConstruction/operationInserts exchangeablePU
215881/M-1 4011923608569 10 - 240 mm² 415 mm Hexagon Various applications Accumulator-hydraulic Yes 1

Hydraulic hand pliers „HH-6“

Crimping head can be rotated by 180°, manual return after completed pressing, light and compact construction, in SysCon stacking box, without dies.

• Pressing force in kN: 60
• Working pressure in bar: 700
• Opening / Hub: 17 mm
• Head can be opened
• Pressing width: slim
• Cable lugs: standard Cu 10-240
• DIN Cu 10-240 • DIN Al 16-185
• Connectors: standard Cu 10-240
• DIN Cu 10-240 • DIN Al 16-185
• Dual-piston pump
• Weight in kg: 3,0
• Weight of set in kg: 4,5

Quantity Art.No. EAN mm²TLCompression shapeSuitable forConstruction/operationPU
215800 4011923130954 10 - 240 mm² 400 mm Universal (exchangeable inserts) Various applications Hand hydraulic 1

Crimping dies

standard copper tube terminals and connectors, hexagonal pressing

Quantity Art.No. EAN Cross sectionApplicationCompression shapePU
215852 4011923172190 10 - 16 Pipe cable lug and connectors Hexagon 1
215854 4011923172206 25 - 35 Pipe cable lug and connectors Hexagon 1
215856 4011923172213 50 - 70 Pipe cable lug and connectors Hexagon 1
215858 4011923172220 95 - 120 Pipe cable lug and connectors Hexagon 1
215859 4011923172923 150 Pipe cable lug and connectors Hexagon 1
215860 4011923172237 185 Pipe cable lug and connectors Hexagon 1
215861 4011923172633 240 Pipe cable lug and connectors Hexagon 1

Crimping dies DIN Cu + Al

DIN Cu/Al tube terminals and connectors, hexagonal pressing

Quantity Art.No. EAN Cross sectionApplicationCuAlIdent.Compression shapePU
215862 4011923172244 10 - 16 Cable compression lugs and connectors 10 - 16 0 6 - 8 Hexagon 1
215864 4011923172251 25 - 35 Cable compression lugs and connectors 25 - 35 16 - 25 10 - 12 Hexagon 1
215866 4011923172268 50 - 70 Cable compression lugs and connectors 50 - 70 35 - 50 14 - 16 Hexagon 1
215868 4011923172275 95 - 120 Cable compression lugs and connectors 95 - 120 70 18 - 20 Hexagon 1
215869 4011923172930 150 Cable compression lugs and connectors 150 95 - 120 22 Hexagon 1
215870 4011923172282 185 Cable compression lugs and connectors 185 150 25 Hexagon 1
215872 4011923172299 240 Cable compression lugs and connectors 240 185 28 Hexagon 1
