Universal set 1

Hydraulics for interchangeable pressing tools, crimping head can be rotated by 180°, with fast opening, manual return flow after perfect pressure.

for 4 different interchangeable heads (item no. 216761, item no. 216762, item no. 216763, item no. 216764)
• Heads can be changed easily
• Can be locked using 2 extractable pins
• Pressing load kN: 60
• Working pressure in bar: 700

With the different colours of the sensor LED, it shows whether the pressing has been completed successfully or which errors have occurred:
Light is green: Pressing completed as standard, motor stopped.
Light is orange: Battery voltage not sufficient
Light is red: Pressing interrupted before completed

The device also has 1 white LED designed to illuminate the working area.

Quantity Art.No. EAN TLCompression shapeSuitable forConstruction/operationInserts exchangeablePU
216760-1 4011923608743 315 mm Universal (exchangeable inserts) Various applications Accumulator-hydraulic Yes 1
216760-1-N 4011923608446 315 mm Universal (exchangeable inserts) Various applications Accumulator-hydraulic Yes 1
216760-1-NO 4011923613594 315 mm Universal (exchangeable inserts) Various applications Accumulator-hydraulic Yes 1

Crimping headstock “U-KO-6”

Pressing head for interchangeable pressing applications, with quick opening, without inserts.
• Head can be opened
• Opening / Hub: 17 mm
• Pressing width: slim
• Cable lugs: standard Cu 6-300 / DIN Cu 6-300 / DIN Al 16-240
• Connectors: standard Cu 6-300 / DIN Cu 6-300 / DIN Al 16-240
• Quick coupling

Quantity Art.No. EAN mm²TLCompression shapeSuitable forConstruction/operationInserts exchangeablePU
216761 4011923584153 6 - 300 mm² 140 mm Universal (exchangeable inserts) Cable lugs and connectors Hydraulic compression head Yes 1

Crimping headstock “U-KDE240-6”

Pressing head with quick opening, indent v-shape pressing, no inserts required.
• Head can be opened
• Cable lugs: standard Cu 16-240
• Connectors: standard Cu 16-240

Quantity Art.No. EAN mm²TLCompression shapeSuitable forConstruction/operationPU
216763 4011923584177 16 - 240 mm² 130 mm Arbour clamping Cable lugs and connectors Hydraulic compression head 1

Cutting head „U-KS6-S32ACSR“

• Diameter 32 mm

• For ACSR cables Ø 32 mm

• Not suitable for Cu/Al cables

Quantity Art.No. EAN Isolation protection 1000 VØWeightConstruction/operationPU

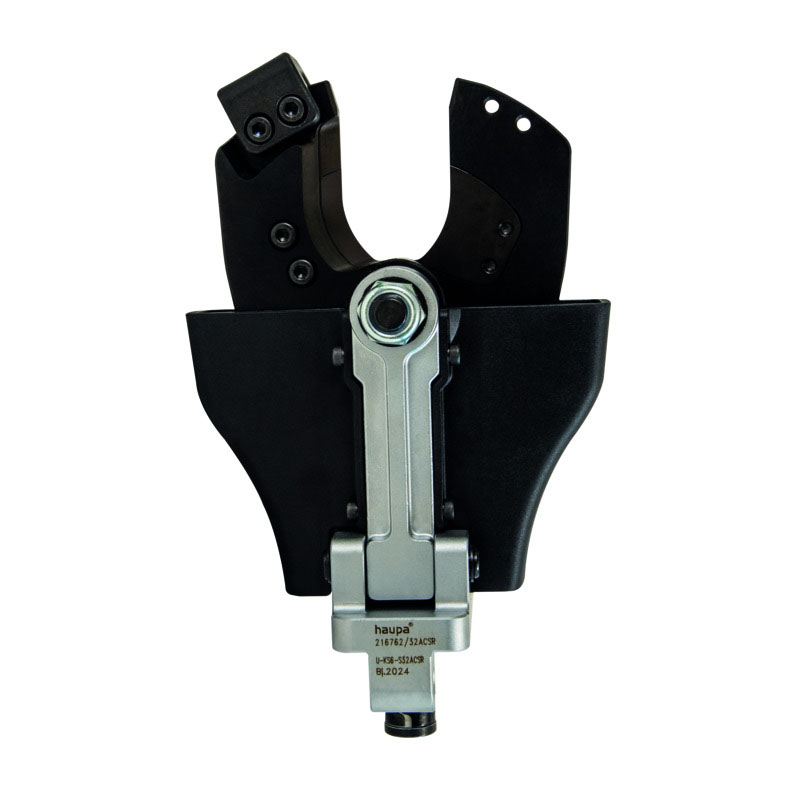

216762/32ACSR 4011923629199 No 32 mm 2,8 kg Hydraulic cutter head 1

Cutting headstock “U-KS6-S50”

for copper and aluminium cable

Quantity Art.No. EAN Isolation protection 1000 Vmax. wire cross sectionsConstruction/operationTLPU
216762 4011923584160 No 50 mm Hydraulic cutter head 233 mm 1

Cutting head „U-KS6-S65“

• For copper and aluminium cables

• Multi-wire

• Sector-shaped

Quantity Art.No. EAN PU
216762/65 4011923626389 1

Punching headstock “U-S-6“

Advantages:
• head can be rotated by 360°
• flexible aluminium head

Punching capacity:
• for galvannealed steel plate up to max. 3.2 mm thickness
• for stainless steel plate up to max. 1.6 mm thickness
• punch dies size from Ø 12 mm to max. 50 mm

Quantity Art.No. EAN Punch forceType of excitationPU
216764 4011923584207 60 kN Accumulator-hydraulic 1

Crimping headstock „U-D300-6“

• Pressing force in kN: 60 kN
• Cable lugs: standard Cu 16 – 300
• Connectors: standard Cu 16 – 120

Quantity Art.No. EAN PU
216665-U 0

Crimping headstock „U-D400-6“

• Pressing force in kN: 60
• Head can be opened
• Cable lugs: standard Cu 25 – 400
• Connectors: standard Cu 25 – 400

Quantity Art.No. EAN PU
216666-U 0

Adapter

For hydraulic pump item 216357 so the interchangeable heads for the Smart Universal can be used (items 216761, 216762, 216763, 216764)
• with quick-lock hydraulic connection (Cejn Series 115)

Quantity Art.No. EAN TLCompression shapeSuitable forConstruction/operationInserts exchangeablePU
216765 4011923609696 155 mm Universal (exchangeable inserts) Various applications Hydraulic compression head Yes 1

Li-Ion battery 18 V, 2 Ah

Compatible with all Li-Ion 18 V battery devices
• Intelligent battery monitoring, temperature protection, LED capacity indicator
• Charging possible using the HAUPA compact charger item 215527 or original Makita charging technology
• Please note: This battery cannot be charged using the HAUPA quick charger item 215513.

Quantity Art.No. EAN Nominal voltageCapacityModelBattery packLengthWidthHeight including polePU
215523 4011923608804 18 V 2000 mAh Lithium ion Yes 116 mm 74.8 mm 61 mm 1
215525 4011923608828 18 V 4000 mAh Lithium ion Yes 116 mm 74.8 mm 61 mm 1

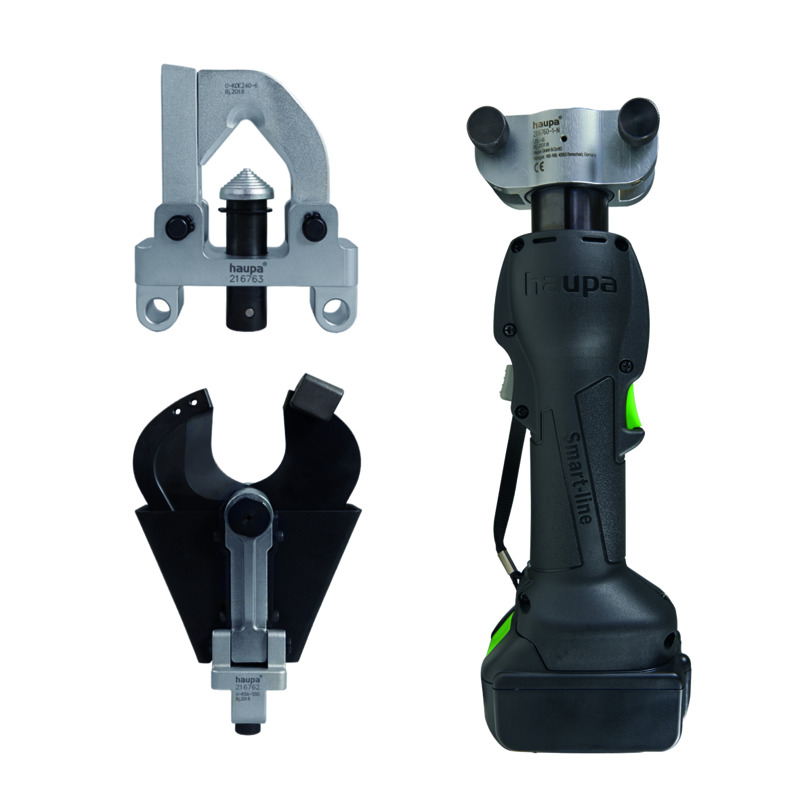

Universal-Set 1

Hydraulics for interchangeable pressing tools, crimping head can be rotated by 180°, with fast opening, manual return flow after perfect pressure.



Consists of Art. 216760-1, Art. 216763 and Art. 216762 in one SysCon system container, incl. insert.



• Heads can be changed easily | Can be locked using 2 extractable pins

• With the new HAUPA battery item no. 215523 and charger item no. 215527

• Pressing load kN: 60 | Working pressure in bar: 700



Quantity Art.No. EAN Isolation protection 1000 VSuitable for max. cable diameterMax. cable cross sectionWeightPU
216766 4011923612214 No 50 mm 10-240 mm 10,18 kg 1

Universal-Set 2

Hydraulics for interchangeable pressing tools, crimping head can be rotated by 180°, with fast opening, manual return flow after perfect pressure.



Consists of Art. 216760-1, Art. 216761 and Art. 216762 in one SysCon system container incl. insert.



• Heads can be changed easily | Can be locked using 2 extractable pins

• With the new HAUPA battery item no. 215523 and charger item no. 215527

• Pressing load kN: 60 | Working pressure in bar: 700



Quantity Art.No. EAN Isolation protection 1000 VSuitable for max. cable diameterMax. cable cross sectionWeightPU
216767 4011923612221 No 50 mm 6-300 mm 15 kg 1

Universal-Set 3

Hydraulics for interchangeable pressing tools, crimping head can be rotated by 180°, with fast opening, manual return flow after perfect pressure.



Consists of Art. 216760-1, Art. 216763 and Art. 216762/65 in one SysCon system container, incl. insert.



• Heads can be changed easily | Can be locked using 2 extractable pins

• With the new HAUPA battery item no. 215523 and charger item no. 215527

• Pressing load kN: 60 | Working pressure in bar: 700



Quantity Art.No. EAN Isolation protection 1000 VSuitable for max. cable diameterMax. cable cross sectionExecution/operationWeightPU
216766/65 4011923629304 No 65 mm 10-240 mm battery-hydraulic 10,18 kg 1

Universal-Set 4

Hydraulics for interchangeable pressing tools, crimping head can be rotated by 180°, with fast opening, manual return flow after perfect pressure.



Consists of Art. 216760-1, Art. 216761 and Art. 216762/65 in one SysCon system container incl. insert.



• Heads can be changed easily | Can be locked using 2 extractable pins

• With the new HAUPA battery item no. 215523 and charger item no. 215527

• Pressing load kN: 60 | Working pressure in bar: 700



Quantity Art.No. EAN Isolation protection 1000 VSuitable for max. cable diameterMax. cable cross sectionExecution/operationWeightPU
216767/65 4011923629311 No 65 mm 6-300 mm battery-hydraulic 10,18 kg 1

Battery-hydraulic Base Tool US-12M

• for 3 different interchangeable heads (Art. No. 216626, Art. No. 216627, Art. No. 216628)

• easy change of heads

• lockable by 2 extractable bolts

• Head 180° rotatable

• Selector switch for

– automatic return

– 50% automatic return

– manual return

• Sensor mode switchable for pressing and cutting

• 2 white LEDs for workspace illumination

• Crimping force in kN: 120

• Working pressure in bar: 700

• Battery charging time in minutes: 60

• Battery type: Li-Ion, 18 V, 4 Ah

The different colors of the sensor LED indicate if

the operation has been completed successfully

or if an error occurred.

LED green: crimping completed

in accordance with standards, motor stopped

LED orange: battery voltage insufficient

LED red: crimping not correctly completed

Quantity Art.No. EAN TLCompression shapeSuitable forConstruction/operationInserts exchangeablePU
216625-1 4011923625177 420 Universal (exchangeable inserts) Cable lugs and connectors Accumulator-hydraulic Yes 1
216625-1-N 4011923625184 420 Universal (exchangeable inserts) Cable lugs and connectors Accumulator-hydraulic Yes 1
216625-1-NO 4011923625191 420 Universal (exchangeable inserts) Cable lugs and connectors Accumulator-hydraulic Yes 1

Li-Ion 18 V compact charger

For models 215503, 215511, 215523, 215525
• Compact design
• Low weight
• With LED charging indicator light
• Input voltage 100 - 240V AC
• Charging voltage 21V DC, charging current 1.5A
• Also suitable for Makita batteries BL1830, BL1815, BL1840

Quantity Art.No. EAN High-speed battery chargerFrequency supply voltageNominal voltageWith discharging functionPU
215527 4011923608842 No 50 Hz 230 V No 1

Crimping head U-KDE500-12

Pressing head 180° rotatable, in plastic case, no inserts necessary, mandrel pressing

• Crimping force in kN: 120

• Working pressure in bar: 700

• Hinged head

• Cable lugs: standard Cu 35-500 • DIN AL 95-500

• Connectors: standard Cu 35-500 • DIN Al 95-500

• Weight in kg: 1,284

Quantity Art.No. EAN mm²TLCompression shapeSuitable forConstruction/operationPU
216626 4011923625221 35-500 mm² 75 Mandrel Crimp Cable lugs and connectors Hydraulic compression head 1

Crimping head U-KO400-12

• Crimping force in kN: 120

• Working pressure in bar: 700

• Opening / Stroke: 53 mm

• Hinged head

• Pressing width: wide

• Cable lugs: standard Cu 10-400 • DIN Cu 10-300 • DIN Al 16-300

• Connectors: standard Cu 10-400 • DIN Cu 10-300 • DIN Al 16-300

• Use of all dies in the 400-C12 series possible

• Weight in kg: 1,332

Quantity Art.No. EAN mm²TLCompression shapeSuitable forConstruction/operationPU
216627 4011923625207 10-400 mm² 75 Mandrel Crimp Cable lugs and connectors Hydraulic compression head 1

Cutting head U-KS12-S85

• Crimping force in kN: 120

• Working pressure in bar: 700

• Cutting width Ø: 85 mm

• Weight in kg: 5,483

Quantity Art.No. EAN ØTLIsolation protection 1000 VConstruction/operationPU
216628 4011923625214 85 mm 260 No Hydraulic cutter head 1
