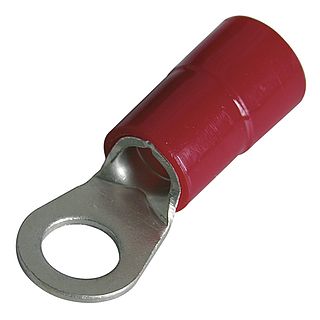

Isolierte Quetschkabelschuhe

• Werkstoff: 99,9% Elektrolyt-Kupfer
• Nylon isoliert, halogenfrei
• Ringform
• hart verlötet
• querschnittsabhängige Farbcodierung
• für Cu-Leiter nach DIN EN 60228, Kl. 2,5 + 6
• keine weitere Isolierung nach Verpressung notwendig
• Rillenprägung für besseren Kontakt

Art.-Nr. EAN LQFarbeMd2d1d4AGLFlanschformVPE
260902 10 mm² 5 5.3 4.5 8 mm 16.5 24.5 mm Ringform 100
260904 10 mm² 6 6.5 4.5 8 mm 16.5 25.5 mm Ringform 100
260906 10 mm² 8 8.4 4.5 8 mm 16.5 28.5 mm Ringform 100
260908 10 mm² 10 10.5 4.5 8 mm 16.5 29.5 mm Ringform 100
260910 10 mm² 12 13 4.5 8 mm 16.5 31.5 mm Ringform 100
260912 16 mm² 5 5.3 5.8 11 mm 21.5 31.5 mm Ringform 100
260914 16 mm² 6 6.5 5.8 11 mm 21.5 31.5 mm Ringform 100
260916 16 mm² 8 8.4 5.8 11 mm 21.5 33.5 mm Ringform 100
260918 16 mm² 10 10.5 5.8 11 mm 21.5 35.5 mm Ringform 100
260920 16 mm² 12 13 5.8 11 mm 21.5 37.5 mm Ringform 100
260922 25 mm² 5 5.3 7.5 13 mm 24 38 mm Ringform 100
260924 25 mm² 6 6.5 7.5 13 mm 24 38 mm Ringform 100
260926 25 mm² 8 8.4 7.5 13 mm 24 38 mm Ringform 100
260928 25 mm² 10 10.5 7.5 13 mm 24 39 mm Ringform 100
260930 25 mm² 12 13 7.5 13 mm 24 44 mm Ringform 100
260932 25 mm² 16 17 7.5 13 mm 24 48 mm Ringform 100
260934 35 mm² 6 6.5 9 14.5 mm 27 41 mm Ringform 100
260936 35 mm² 8 8.4 9 14.5 mm 27 41 mm Ringform 100
260938 35 mm² 10 10.5 9 14 mm 27 42 mm Ringform 100
260940 35 mm² 12 13 9 14.5 mm 27 46 mm Ringform 100
260942 35 mm² 16 17 9 14.5 mm 27 51 mm Ringform 100
260944 50 mm² 6 6.5 11 16.5 mm 29.5 47.5 mm Ringform 50
260946 50 mm² 8 8.4 11 16.5 mm 29.5 47.5 mm Ringform 50
260948 50 mm² 10 10.5 11 16.5 mm 29.5 47.5 mm Ringform 50
260950 50 mm² 12 13 11 16.5 mm 29.5 49.5 mm Ringform 50
260952 50 mm² 16 17 11 16.5 mm 29.5 53.5 mm Ringform 50
260954 70 mm² 6 6.5 13 18.7 mm 31.5 51 mm Ringform 50
260956 70 mm² 8 8.4 13 18.7 mm 31.5 51 mm Ringform 50
260960 70 mm² 12 13 13 18.7 mm 31.5 51 mm Ringform 50
260962 70 mm² 16 17 13 18.7 mm 31.5 55 mm Ringform 50
260964 95 mm² 8 8.4 15 21.7 mm 35.5 57.5 mm Ringform 50
260966 95 mm² 10 10.5 15 21.7 mm 35.5 57.5 mm Ringform 50
260968 95 mm² 12 13 15 21.7 mm 35.5 57.5 mm Ringform 50
260970 95 mm² 16 17 15 21.7 mm 35.5 59.5 mm Ringform 50
260972 120 mm² 8 8.4 16.5 24.2 mm 40 62 mm Ringform 25
260974 120 mm² 10 10.5 16.5 24.2 mm 40 62 mm Ringform 25
260976 120 mm² 12 13 16.5 24.2 mm 40 62 mm Ringform 25
260978 120 mm² 16 17 16.5 24.2 mm 40 66 mm Ringform 25
260980 150 mm² 10 10.5 19 27.2 mm 44 70 mm Ringform 25
260982 150 mm² 12 13 19 27.2 mm 44 70 mm Ringform 25
260984 150 mm² 16 17 19 27.2 mm 44 70 mm Ringform 25
