For Maximum Protection
The extremely robust Heavy Duty PP case provides reliable protection for sensitive equipment – dustproof, splash‑water resistant, and temperature‑resistant from –30 °C to +80 °C. Thanks to the automatic air‑pressure compensation valve, it is suitable for air travel and ideal for transport or professional use. It is stackable, securely lockable, and equipped with a rubberised handle and an ownership label.
HAUPA system tools – robust, practical, and ready for use at any time.

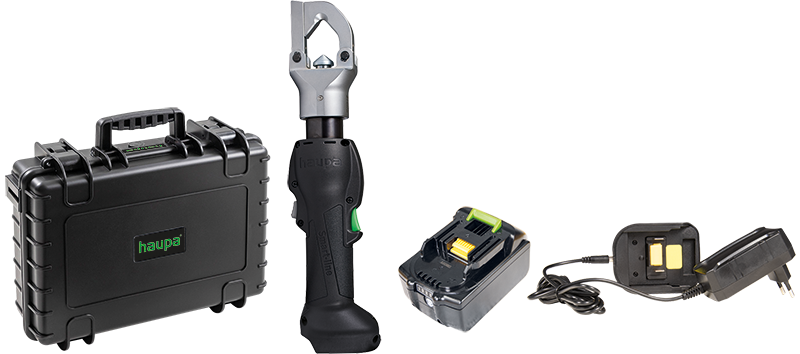

Battery‑hydraulic crimping tool SDE240‑6 in a heavy‑duty case
Art. No. 216669-1-HD

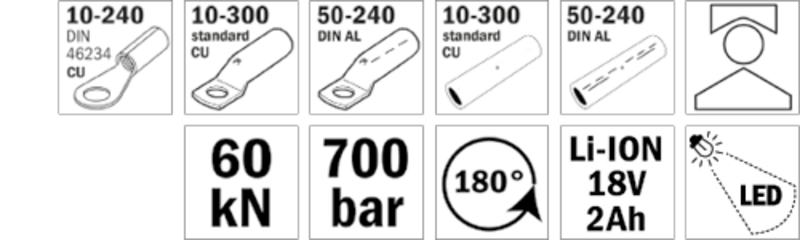

- Pressing force in kN: 60
- Working pressure in bar: 700
- One point crimp
- Pressing time, battery-operated in sec.: 5
- DIN 46234 10 - 240 mm²
- Cable lugs standard Cu 10 - 300 mm²
- Connectors standard Cu 10 - 300 mm²
- Cable lugs DIN Al 50 - 240 mm²
- Connectors DIN Al 50 - 240 mm²
- Li‑Ion battery 18 V 2 Ah, Art. 215523
- Compact charger, Art. 215527
The device also has 1 white LED to illuminate the respective work area.

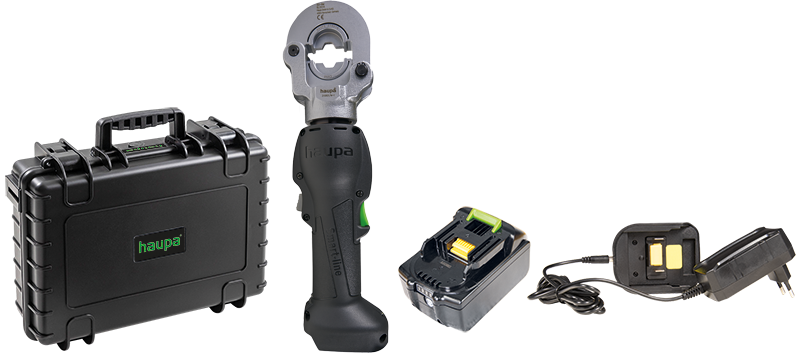

Battery‑hydraulic crimping tool S0‑6 in a heavy‑duty case
Art. No. 216801-1-HD
- Pressing force in kN: 60 kN
- Working pressure in bar: 700
- Head can be opened
- Opening/ Hub: 17 mm
- Pressing width: slim, without dies
- Pressing time, battery-operated in seconds: ca. 5

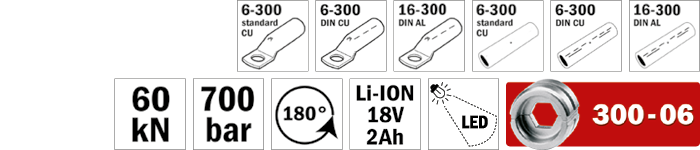

- Crimping range cable lugs: standard Cu 6 - 300 mm²
- DIN Cu 6 - 300 mm²
- DIN Al 16 - 340 mm²
- Crimping range connectors: Cu 6 - 300 mm²
- DIN Cu 6 - 300 mm²
- DIN Al 16 - 300 mm²
- Li‑Ion battery 18 V 2 Ah, Art. 215523
- Compact charger, Art. 215527
The device also has 1 white LED to illuminate the respective work area.
Discover our battery-powered hydraulic crimping tools for professional applications.
Maximum performance, maximum flexibility: The new 18 V battery system brochure is here.
Discover all tools for cutting, crimping and punching now.
