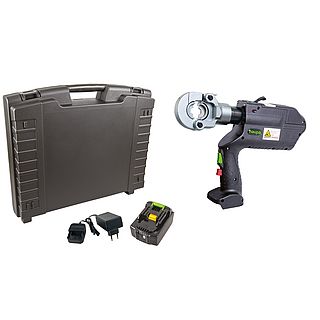

Battery powered crimping tool „S0-6“

Hydraulic for interchangeable dies, crimping head 180° swivelling, Head can be opened, manual return flow after perfect pressure.
Extent of supply: 1 crimping tool, 1 charger, 1 battery, 1 strap, in SysCon stacking box „SysCon M“ 220372 without dies.

• Pressing force in kN: 60 kN
• Working pressure in bar: 700
• Head can be opened
• Opening/ Hub: 17 mm
• Pressing width: slim
• Pressing time, battery-operated in seconds: ca. 5
• Battery charging time in minutes: 60
• Battery type: Li-Ion, 18 V, 2 Ah
• With battery item no. 215523 and charger item no. 215527
• Cable lugs: standard Cu 6-300
• DIN Cu 6-300 • DIN Al 16-240
• Connectors: Cu 6-300
• DIN Cu 6-300 • DIN Al 16-240

Quantity Art.No. EAN mm²TLCompression shapeSuitable forConstruction/operationInserts exchangeablePU
216801-1 4011923608767 6 - 300 mm² 383 mm Universal (exchangeable inserts) Cable lugs and connectors Accumulator-hydraulic Yes 1

Battery powered crimping tool „S0-6M“

Technical data and scope of delivery, see 216801-1.

With the different colours of the sensor LED, it shows whether the pressing has been completed successfully or which errors have occurred:
Light is green: Pressing completed as standard, motor stopped.
Light is orange: Battery voltage not sufficient
Light is red: Pressing interrupted before completed

The device also has 1 white LED designed to illuminate the working area.

Quantity Art.No. EAN mm²TLCompression shapeSuitable forConstruction/operationInserts exchangeablePU
216801/M-1 4011923608781 6 - 300 mm² 383 mm Universal (exchangeable inserts) Cable lugs and connectors Accumulator-hydraulic Yes 1

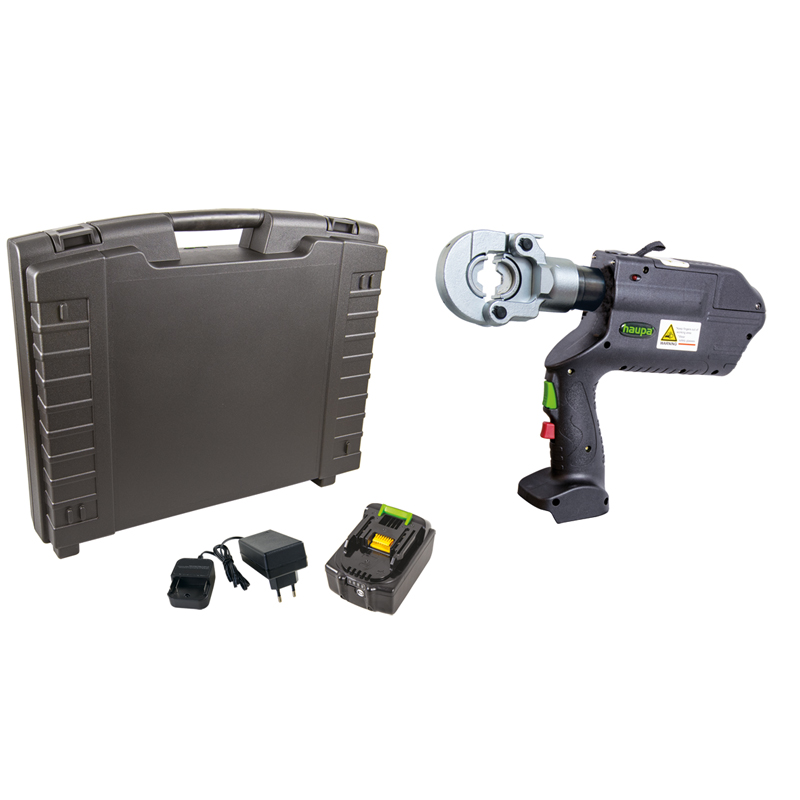

Battery powered crimping tool „AO-6“

2 step hydraulic for replaceable pressing dies, crimping head can be rotated by 180°, can be opened, with quick opening, manual return after completed pressing, LED to check battery status.
Included in delivery: 1 crimping tool, 1 charger, 1 battery, 1 carry strap, in plastic case, without dies.

• Pressing force in kN: 60
• Working pressure in bar: 700
• Opening/ Hub: 17 mm
• Head can be opened
• Pressing width: slim
• Cable lugs: standrad Cu 6-300
• DIN Cu 6-300 • DIN Al 16-240
• Connectors: standard Cu 6-300
• DIN Cu 6-300 • DIN Al 16-240
• Pressing time, battery-operated in seconds: 4
• Battery charging time in minutes: 60
• Battery type: Li-Ion 18 V, 4 Ah
• Dual-piston pump • Weight in kg: 4,5
• Weight of set in kg: 9,5

With the different colours of the sensor LED, it shows whether the pressing has been completed successfully or which errors have occurred:
Light is green: Pressing completed as standard, motor stopped
Light is orange: Battery voltage not sufficient
Light is red: Pressing interrupted before completed

The device also has 2 white LED designed to illuminate the working area.

Quantity Art.No. EAN mm²TLCompression shapeSuitable forConstruction/operationInserts exchangeablePU
216800 4011923488697 6 - 300 mm² 330 mm Universal (exchangeable inserts) Various applications Accumulator-hydraulic Yes 1

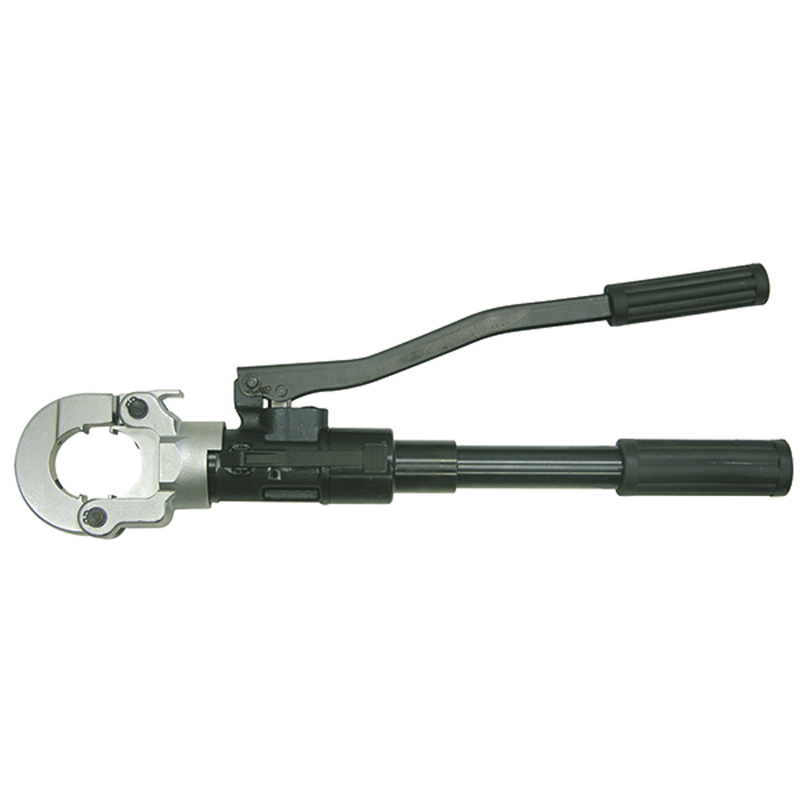

Hydraulic hand pliers „HO-6“

Crimping head can be rotated by 180°, manual return after completed pressing, light and compact construction in black plastic case, without dies.

• Pressing force in kN: 60
• Working pressure in bar: 700
• Head can be opened
• Opening / Hub: 17 mm
• Pressing width: slim
• Cable lugs: standard Cu 6-300
• DIN Cu 6-300 • DIN Al 16-240
• Connectors: standard Cu 6-300
• DIN Cu 6-300 • DIN Al 16-240
• Dual-piston pump
• Weight in kg: 3,5
• Weight of set in kg: 5,0

Quantity Art.No. EAN mm²TLCompression shapeSuitable forConstruction/operationPU
216802 4011923489588 6 - 300 mm² 500 mm Universal (exchangeable inserts) Various applications Hand hydraulic 1

Hand pliers „MO-6“ for exchangeable dies

Extent of supply:
1 crimping tool, in metal suitcase.

• Crimping range cable lugs: Cu 6-300
• DIN Cu 6-300 / DIN Al 16-240
• Crimping range connectors: Cu 6-300
• DIN Cu 6-300 / DIN Al 16-240

Quantity Art.No. EAN mm²TLCompression shapeSuitable forConstruction/operationPU
216804 4011923482541 6 - 300 mm² 765 mm Universal (exchangeable inserts) Various applications Mechanical 1

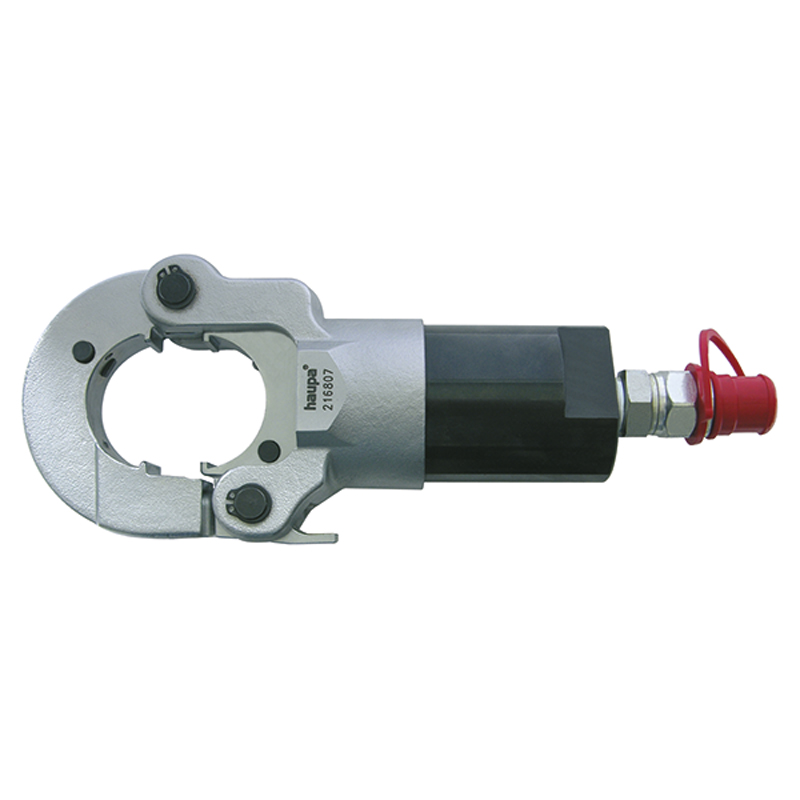

Crimping headstock „KO-6“

in plastic case, without dies.

• Pressing force in kN: 60
• Working pressure in bar: 700
• Head can be opened
• Opening/ Hub: 17 mm
• Pressing width: slim
• Cable lugs: standard Cu 6-300
• DIN Cu 6-300 • DIN Al 16-240
• Connectors: standard Cu 6-300
• DIN Cu 6-300 • DIN Al 16-240
• Quick coupling
• Weight in kg: 3,2
• Weight of set in kg: 4,2

Quantity Art.No. EAN mm²TLCompression shapeSuitable forConstruction/operationInserts exchangeablePU
216807 4011923482558 6 - 300 mm² 235 mm Universal (exchangeable inserts) Various applications Hydraulic compression head Yes 1

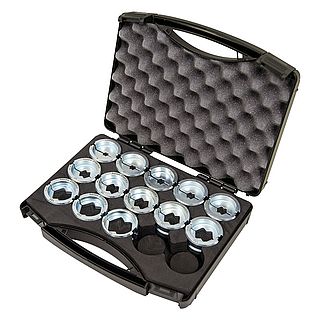

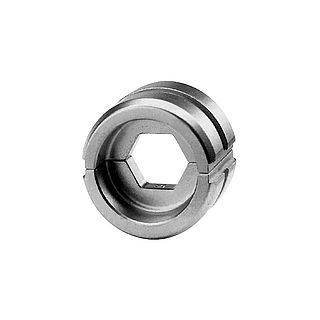

Dies for terminals and connectors DIN

Quantity Art.No. EAN Cross sectionApplicationCuAlIdent.Pressing widthPU
216832 4011923482701 6 Cable compression lugs and connectors 6 0 5 5 1
216834 4011923482718 10 Cable compression lugs and connectors 10 0 6 5 1
216836 4011923482725 16 Cable compression lugs and connectors 16 0 8 5 1
216838 4011923482732 25 Cable compression lugs and connectors 25 0 10 5 1
216840 4011923482749 16 - 35 Cable compression lugs and connectors 35 16 - 25 12 5 1
216842 4011923482756 35 - 50 Cable compression lugs and connectors 50 35 14 5 1
216844 4011923482763 50 - 70 Cable compression lugs and connectors 70 50 16 5 1
216846 4011923482770 70 - 95 Cable compression lugs and connectors 95 70 18 5 1
216848 4011923482787 120 Cable compression lugs and connectors 120 0 20 5 1
216850 4011923482794 95 - 150 Cable compression lugs and connectors 150 95 - 120 22 5 1
216852 4011923482800 150 - 185 Cable compression lugs and connectors 185 150 25 5 1
216854 4011923482817 185 - 240 Cable compression lugs and connectors 240 185 28 5 1
216856 4011923482824 240 - 300 Cable compression lugs and connectors 300 240 32 5 1

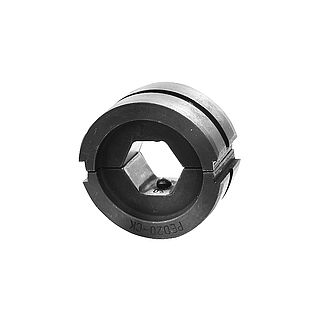

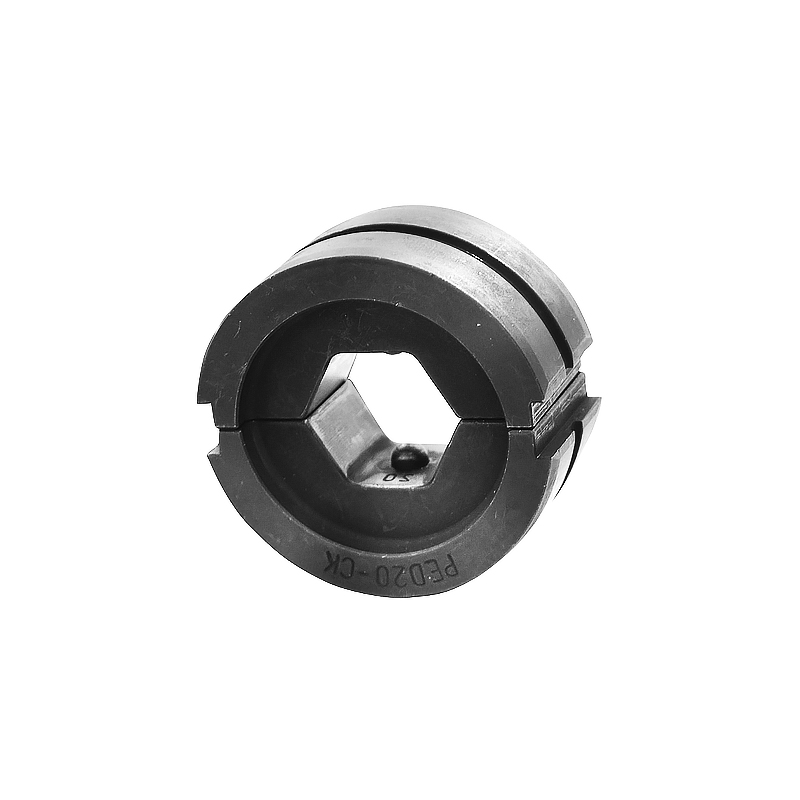

Dies for terminals and connectors standard

Quantity Art.No. EAN Cross sectionApplicationPressing widthCompression shapePU

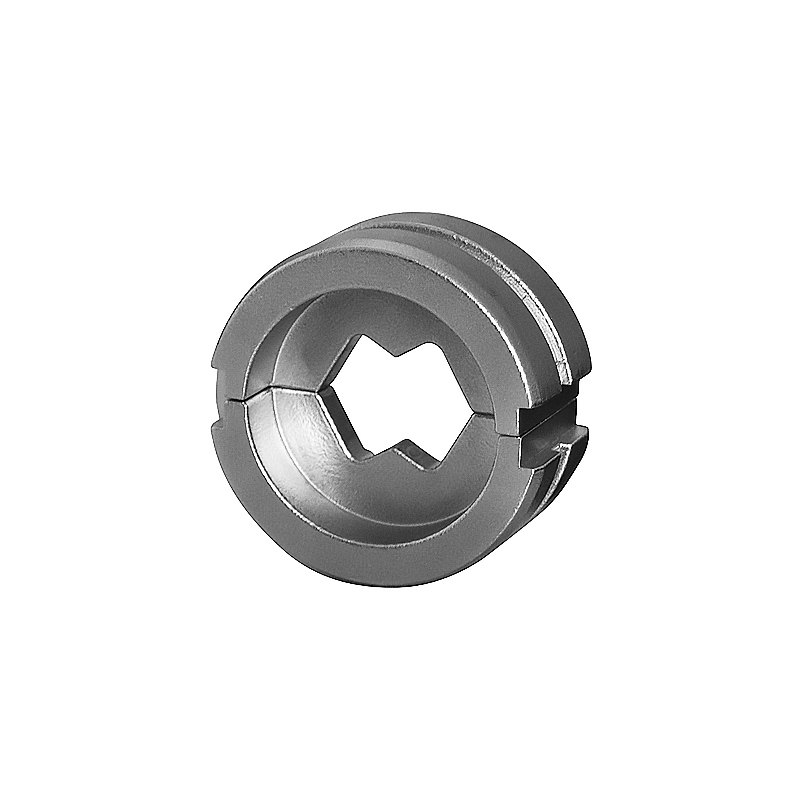

216806 4011923482572 6 Pipe cable lug and connectors 5 Hexagon 1
216808 4011923482589 10 Pipe cable lug and connectors 5 Hexagon 1
216810 4011923482596 16 Pipe cable lug and connectors 5 Hexagon 1
216812 4011923482602 25 Pipe cable lug and connectors 5 Hexagon 1
216814 4011923482619 35 Pipe cable lug and connectors 5 Hexagon 1
216816 4011923482626 50 Pipe cable lug and connectors 5 Hexagon 1
216818 4011923482633 70 Pipe cable lug and connectors 5 Hexagon 1
216820 4011923482640 95 Pipe cable lug and connectors 5 Hexagon 1
216822 4011923482657 120 Pipe cable lug and connectors 5 Hexagon 1
216824 4011923482664 150 Pipe cable lug and connectors 5 Hexagon 1
216826 4011923482671 185 Pipe cable lug and connectors 5 Hexagon 1
216828 4011923482688 240 Pipe cable lug and connectors 5 Hexagon 1
216830 4011923482695 300 Pipe cable lug and connectors 5 Hexagon 1

Dies for terminals and compacted connectors

for standard tube terminals and compacted connectors, also on compacted thinned connectors

Quantity Art.No. EAN Cross sectionApplicationPressing widthPU
216806/V 4011923575434 6 Pipe cable lug and connectors 5 1
216808/V 4011923575441 10 Pipe cable lug and connectors 5 1
216810/V 4011923575458 16 Pipe cable lug and connectors 5 1
216812/V 4011923575465 25 Pipe cable lug and connectors 5 1
216814/V 4011923575472 35 Pipe cable lug and connectors 5 1
216816/V 4011923575489 50 Pipe cable lug and connectors 5 1
216818/V 4011923575496 70 Pipe cable lug and connectors 5 1
216820/V 4011923575502 95 Pipe cable lug and connectors 5 1
216822/V 4011923575519 120 Pipe cable lug and connectors 5 1
216824/V 4011923575526 150 Pipe cable lug and connectors 5 1
216826/V 4011923575533 185 Pipe cable lug and connectors 5 1
216828/V 4011923575540 240 Pipe cable lug and connectors 5 1
216830/V 4011923575557 300 Pipe cable lug and connectors 5 1

Dies for tubular terminals „F-Type“

Quantity Art.No. EAN Cross sectionApplicationPressing widthPU
216878 4011923497996 10 Pipe cable lug and connectors 8 1
216880 4011923498009 16 Pipe cable lug and connectors 9 1
216882 4011923498016 25 Pipe cable lug and connectors 11 1
216884 4011923498023 35 Pipe cable lug and connectors 13 1
216886 4011923498030 50 Pipe cable lug and connectors 13 1
216888 4011923498047 70 Pipe cable lug and connectors 13 1
216890 4011923498054 95 Pipe cable lug and connectors 13 1
216892 4011923498061 120 Pipe cable lug and connectors 20 1
216894 4011923498078 150 Pipe cable lug and connectors 20 1
216896 4011923498085 185 Pipe cable lug and connectors 8 1
216898 4011923498092 240 Pipe cable lug and connectors 8 1
216899 4011923498108 300 Pipe cable lug and connectors 8 1

Dies for end sleeves

for end sleeves and compacted connectors (wave form)

Quantity Art.No. EAN Cross sectionApplicationCompression shapePU

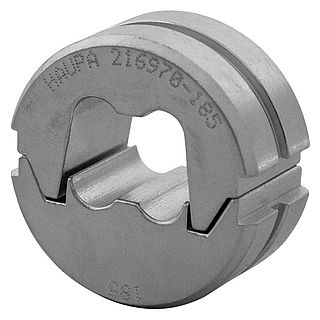

216950 4011923497873 6 Cable end sleeves Trapezoid compression 1
216952 4011923497880 10 Cable end sleeves Trapezoid compression 1
216954 4011923497897 16 Cable end sleeves Trapezoid compression 1
216956 4011923497903 25 Cable end sleeves Trapezoid compression 1
216958 4011923497910 35 Cable end sleeves Trapezoid compression 1
216960 4011923497927 50 Cable end sleeves Trapezoid compression 1
216962 4011923497934 70 Cable end sleeves Trapezoid compression 1
216964 4011923497941 95 Cable end sleeves Trapezoid compression 1
216966 4011923497958 120 Cable end sleeves Trapezoid compression 1
216968 4011923497965 150 Cable end sleeves Trapezoid compression 1
216970 4011923497972 185 Cable end sleeves Trapezoid compression 1
216972 4011923578411 240 Cable end sleeves Trapezoid compression 1

Dies for rounding of round conductors

Quantity Art.No. EAN Cross sectionApplicationRoundingVorrund SECompression shapePU

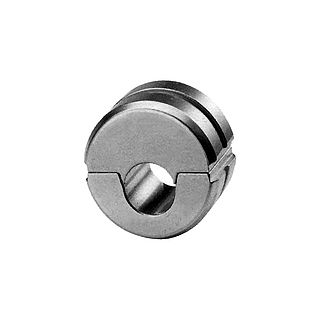

216926 4011923498245 10 Pipe cable lug and connectors 10 0 Round compression 1
216928 4011923498252 16 Pipe cable lug and connectors 16 0 Round compression 1
216930 4011923498269 25 - 35 Pipe cable lug and connectors 25 35 Round compression 1
216932 4011923498276 35 - 50 Pipe cable lug and connectors 35 50 Round compression 1
216934 4011923498283 50 - 70 Pipe cable lug and connectors 50 70 Round compression 1
216936 4011923498290 70 - 95 Pipe cable lug and connectors 70 95 Round compression 1
216938 4011923498306 95 - 120 Pipe cable lug and connectors 95 120 Round compression 1
216940 4011923498313 120 - 150 Pipe cable lug and connectors 120 150 Round compression 1
216942 4011923498320 150 - 185 Pipe cable lug and connectors 150 185 Round compression 1
216944 4011923498337 185 - 240 Pipe cable lug and connectors 185 240 Round compression 1
216946 4011923498344 240 - 300 Pipe cable lug and connectors 240 300 Round compression 1
