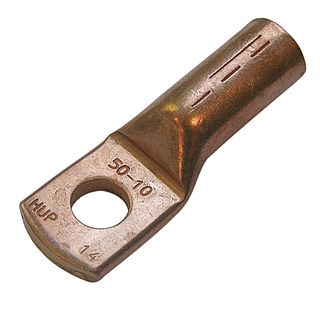

Presskabelschuhe DIN 46235

• Werkstoff: 99,9% Elektrolyt-Kupfer (EN 13600), geglühtes Material
• Oberfläche: blank gebeizt
• für Rundleiter (z.B. VDE 0295 Kl. 1, 2, 5 + 6)
• Pressmarkierung für richtiges Verpressen
• Kennziffer zur eindeutigen Werkzeugzuordnung
• für rundgedrückte Sektorleiter
• genormte Ausführung nach DIN

InfoProduktgruppe

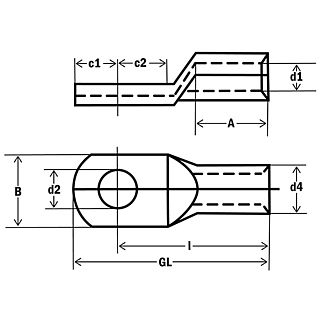

Anzahl Art.-Nr. EAN LQMd2d1d4Ac1c2BLängev1v2Dealer BoxVPE
290001 4011923103873 6 mm² 5 5.3 mm 3.8 mm 5.5 mm 10 6.5 mm 7.5 mm 8.5 mm 24 mm 2 0 800 100
290003 4011923103897 6 mm² 6 6.4 mm 3.8 mm 5.5 mm 10 7.5 mm 8 mm 8.5 mm 24 mm 2 0 800 100
290005 4011923103910 6 mm² 8 8.4 mm 3.8 mm 5.5 mm 10 10 mm 10 mm 13 mm 24 mm 2 0 800 100
290007 4011923103934 10 mm² 5 5.3 mm 4.5 mm 6 mm 10 7 mm 8.5 mm 9 mm 27 mm 2 0 800 100
290011 4011923103958 10 mm² 6 6.4 mm 4.5 mm 6 mm 10 7.5 mm 8.5 mm 9 mm 27 mm 2 0 800 100
290013 4011923103989 10 mm² 8 8.4 mm 4.5 mm 6 mm 10 10 mm 10 mm 13 mm 27 mm 2 0 800 100
290015 4011923104016 10 mm² 10 10.5 mm 4.5 mm 6 mm 10 10 mm 10 mm 15 mm 28 mm 2 0 800 100
290019 4011923104030 16 mm² 6 6.4 mm 5.5 mm 8.5 mm 20 7.5 mm 8 mm 13 mm 36 mm 2 1 500 50
290021 4011923104054 16 mm² 8 8.4 mm 5.5 mm 8.5 mm 20 10 mm 10 mm 13 mm 36 mm 2 1 400 50
290025 4011923104078 16 mm² 10 10.5 mm 5.5 mm 8.5 mm 20 12 mm 12 mm 17 mm 36 mm 2 1 400 50
290027 4011923104092 16 mm² 12 13 mm 5.5 mm 8.5 mm 20 13 mm 13 mm 18 mm 36 mm 2 1 400 50
290031 4011923104115 25 mm² 6 6.4 mm 7 mm 10 mm 20 7.5 mm 8 mm 14 mm 38 mm 2 1 300 50
290033 4011923104139 25 mm² 8 8.4 mm 7 mm 10 mm 20 10 mm 10 mm 16 mm 38 mm 2 1 300 50
290035 4011923104153 25 mm² 10 10.5 mm 7 mm 10 mm 20 12 mm 12 mm 17 mm 38 mm 2 1 300 50
290037 4011923104177 25 mm² 12 13 mm 7 mm 10 mm 20 13 mm 13 mm 19 mm 38 mm 2 1 300 50
290039 4011923104191 35 mm² 6 6.4 mm 8.2 mm 12.5 mm 20 7.5 mm 8 mm 17 mm 42 mm 2 1 150 25
290042 4011923104214 35 mm² 8 8.4 mm 8.2 mm 12.5 mm 20 10 mm 10 mm 17 mm 42 mm 2 1 150 15
290044 4011923104238 35 mm² 10 10.5 mm 8.2 mm 12.5 mm 20 12 mm 12 mm 19 mm 42 mm 2 1 150 25
290049 4011923104252 35 mm² 12 13 mm 8.2 mm 12.5 mm 20 13 mm 13 mm 21 mm 42 mm 2 1 150 25
290050 4011923104276 50 mm² 8 8.4 mm 10 mm 14.5 mm 28 10 mm 10 mm 20 mm 52 mm 3 1 100 25
290051 4011923104290 50 mm² 10 10.5 mm 10 mm 14.5 mm 28 12 mm 12 mm 22 mm 52 mm 3 1 100 25
290052 4011923104313 50 mm² 12 13 mm 10 mm 14.5 mm 28 13 mm 13 mm 24 mm 52 mm 3 1 100 25
290053 4011923104337 50 mm² 16 17 mm 10 mm 14.5 mm 28 16 mm 16 mm 28 mm 52 mm 3 1 100 20
290054 4011923104351 70 mm² 8 8.4 mm 11.5 mm 16.5 mm 28 10 mm 10 mm 24 mm 55 mm 3 1 100 25
290055 4011923104375 70 mm² 10 10.5 mm 11.5 mm 16.5 mm 28 12 mm 12 mm 24 mm 55 mm 3 1 100 25
290056 4011923104399 70 mm² 12 13 mm 11.5 mm 16.5 mm 28 13 mm 13 mm 24 mm 55 mm 3 1 100 25
290057 4011923104412 70 mm² 16 17 mm 11.5 mm 16.5 mm 28 16 mm 16 mm 30 mm 55 mm 3 1 80 20
290058 4011923104443 95 mm² 10 10.5 mm 13.5 mm 19 mm 35 12 mm 12 mm 28 mm 65 mm 4 2 60 15
290059 4011923104467 95 mm² 12 13 mm 13.5 mm 19 mm 35 13 mm 13 mm 28 mm 65 mm 4 2 60 15
290060 4011923104481 95 mm² 16 17 mm 13.5 mm 19 mm 35 16 mm 16 mm 32 mm 65 mm 4 2 60 15
290061 4011923104511 120 mm² 10 10.5 mm 15.5 mm 21 mm 35 15 mm 16 mm 32 mm 70 mm 4 2 40 20
290063 4011923104535 120 mm² 12 13 mm 15.5 mm 21 mm 35 16 mm 17 mm 32 mm 70 mm 4 2 40 20
290064 4011923104559 120 mm² 16 17 mm 15.5 mm 21 mm 35 19 mm 20 mm 32 mm 70 mm 4 2 40 20
290065 4011923104573 120 mm² 20 21 mm 15.5 mm 21 mm 35 21 mm 22 mm 38 mm 70 mm 4 2 40 20
290066 4011923104597 150 mm² 10 10.5 mm 17 mm 23.5 mm 35 15 mm 16 mm 34 mm 78 mm 4 2 30 15
290067 4011923104610 150 mm² 12 13 mm 17 mm 23.5 mm 35 16 mm 17 mm 34 mm 78 mm 4 2 30 15
290068 4011923104634 150 mm² 16 17 mm 17 mm 23.5 mm 35 19 mm 20 mm 34 mm 78 mm 4 2 30 15
290069 4011923104658 150 mm² 20 21 mm 17 mm 23.5 mm 35 21 mm 22 mm 40 mm 78 mm 4 2 30 12
290070 4011923104672 185 mm² 10 10.5 mm 19 mm 25.5 mm 40 15 mm 16 mm 37 mm 82 mm 4 2 20 10
290071 4011923104696 185 mm² 12 13 mm 19 mm 25.5 mm 40 16 mm 17 mm 37 mm 82 mm 4 2 20 10
290072 4011923104719 185 mm² 16 17 mm 19 mm 25.5 mm 40 19 mm 20 mm 37 mm 82 mm 4 2 20 10
290073 4011923104733 185 mm² 20 21 mm 19 mm 25.5 mm 40 21 mm 22 mm 40 mm 82 mm 4 2 20 10
290074 4011923104757 240 mm² 12 13 mm 21.5 mm 29 mm 40 16 mm 17 mm 42 mm 92 mm 5 2 16 8
290075 4011923104771 240 mm² 16 17 mm 21.5 mm 29 mm 40 19 mm 20 mm 42 mm 92 mm 5 2 16 8
290076 4011923104795 240 mm² 20 21 mm 21.5 mm 29 mm 40 21 mm 22 mm 45 mm 92 mm 5 2 16 8
290077 4011923104818 300 mm² 16 17 mm 24.5 mm 32 mm 50 19 mm 22 mm 46 mm 100 mm 0 2 8 4
290078 4011923104832 300 mm² 20 21 mm 24.5 mm 32 mm 50 19 mm 22 mm 46 mm 100 mm 0 2 8 4
290079 4011923104856 400 mm² 16 17 mm 27.5 mm 38.5 mm 70 25 mm 25 mm 55 mm 115 mm 0 3 6 6
290080 4011923104870 400 mm² 20 21 mm 27.5 mm 38.5 mm 70 25 mm 25 mm 54 mm 115 mm 0 3 6 6
290081 4011923104894 500 mm² 20 21 mm 31 mm 42 mm 70 25 mm 25 mm 60 mm 125 mm 0 3 6 6
290082 4011923104917 625 mm² 20 21 mm 34.5 mm 44 mm 80 25 mm 25 mm 64 mm 125 mm 0 3 1 1
290083 4011923104931 800 mm² 20 21 mm 40 mm 52 mm 100 30 mm 30 mm 75 mm 165 mm 0 3 1 1
290084 4011923104955 1000 mm² 20 21 mm 44 mm 58 mm 100 30 mm 30 mm 83 mm 165 mm 0 3 1 1
